5-154
5-11 Sensorless Vector Control
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

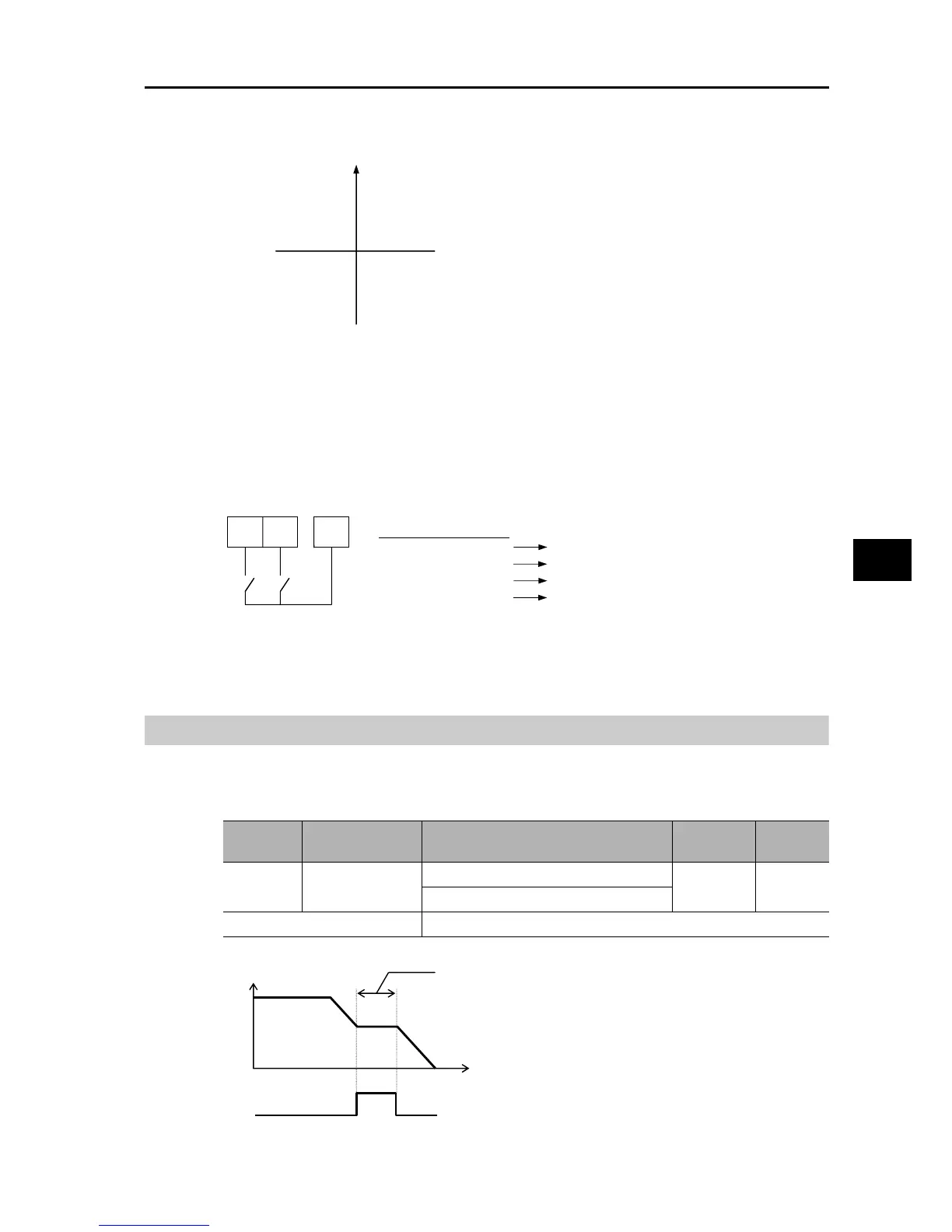

When "00: Four-quadrant separate setting" is selected in Torque Limit Selection (b040),
Torque Limits 1 to 4 (b041 to b044) conform to the figure below.
When "01: Terminal switching" is selected in Torque Limit Selection (b040), Torque Limits 1 to
4 (b041 to b044), which are switched by Torque Limit Switchings 1, 2 allocated to multi-function
input terminals, are set as follows.
Example) Torque limit switching 1 (41: TRQ1) is allocated to multi-function input terminal S6,
and Torque limit switching 2 (42: TRQ2) is allocated to multi-function input terminal
S7/EB.
To use the torque limit function in a low-speed range, also use Overload Limit Selection (b021/
b221/b024).
Torque LADSTOP Function
This function temporarily stops the frequency deceleration function (LAD) when the torque limit
function is actuated. This function is enabled only when Sensorless Vector Control is selected
for control method (A044/A244 = 03).
Reverse
(RV)
Forward
(FW)
Torque
Regeneration
b042
Power running direction
b041
Power running direction
b043
Regeneration
b044
S6S7
4142
SC
41:TRQ1 42:TRQ2
OFF
ON
OFF
ON
OFF
OFF
ON
ON
b041
b042
b044
b043
Parameter
No.
Function name Data
Default
setting
Unit
b045
Torque LADSTOP
Selection
00: Disabled
00 −
01: Enabled
Related functions A044/A244, b040, b041to b044
Output frequency
Torque limit in progress (during torque limit)
Time
TRQ output
