Omron SYSDRIVE MX2 SERIES User Manual

5-115
5-9 Functions Relating to Protections, Warnings and Various Output Signals
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

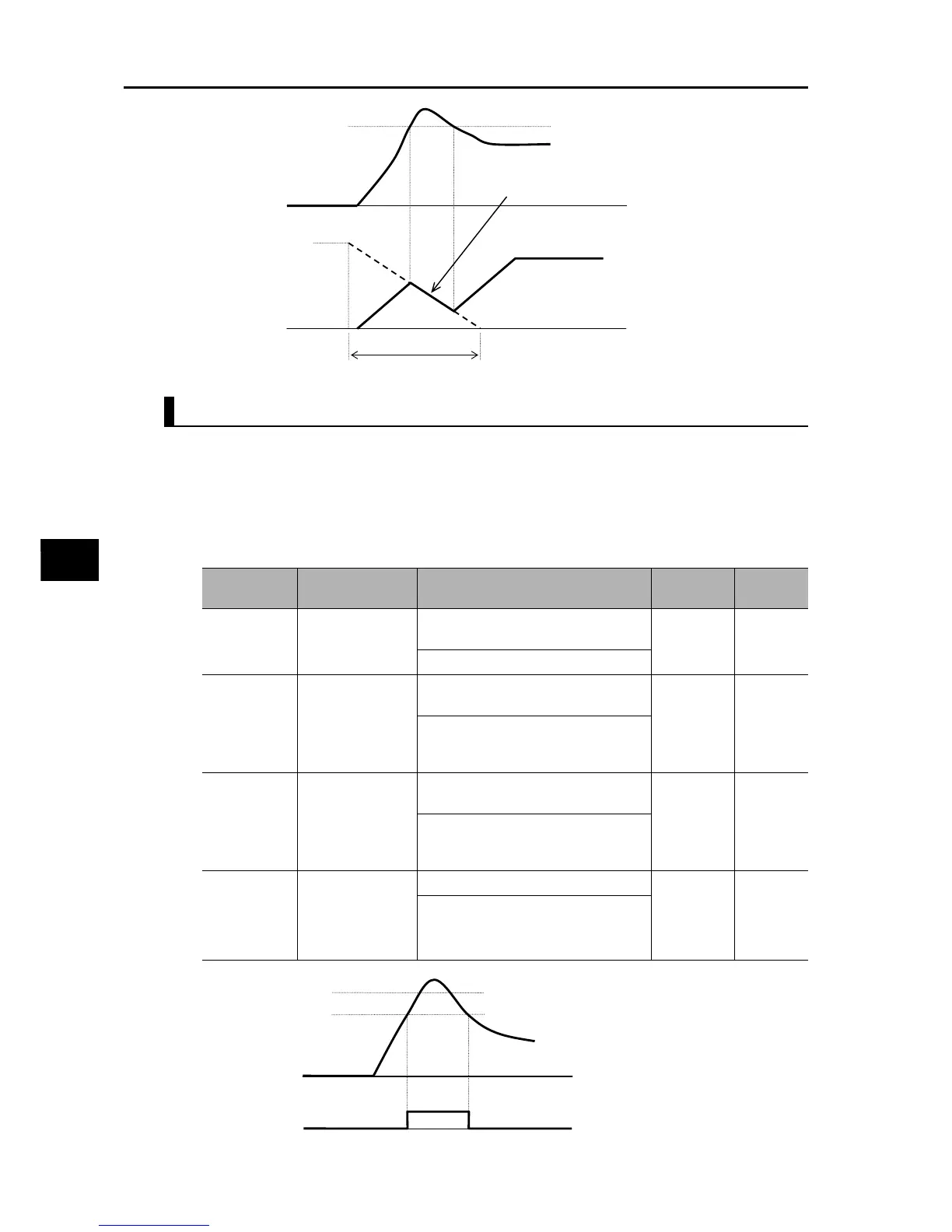

Overload Warning
If the applied load is large, the Inverter can output an overload warning signal before an
overload trip occurs.
This helps prevent mechanical damage due to an overload in the carrier machine, or an
operation line stop due to overload protection of the Inverter.
Allocate "03: OL (Overload warning)" or "26: OL2 (Overload warning 2)" to any Multi-function
Output Terminal Selections (C021 to C022) or Multi-function Relay Output Function Selection
(C026). (Two types of overload warning signals can be output.)
Overload warning level
Output current
Maximum frequency
Inverter output
frequency
Deceleration set by the
overload limit parameter
Target frequency
b022/b025
b222
A004/A204
b023/b026/b223
F001
Parameter
No.
Function name Data
Default
setting
Unit
C040
Overload Warning
Signal Output
Mode Selection
00: Enabled in acceleration/deceleration
and constant speed operation
01 −
01: Enabled in constant speed operation
C041/C241
Overload Warning
Level 1/2
0.0
The Inverter does not operate.
Rated
current
× 1.15
A
0.0 to 2.0 × Rated current
Outputs an OL signal when the
overload warning level is reached.
C111
Overload 1
Warning Level 2
0.0
The Inverter does not operate.
Rated
current
× 1.15
A
0.0 to 2.0 × Rated current
Outputs an OL2 signal when the
overload warning level is reached.
C021 to C022
C026
Multi-function Output
Terminal Selection
Multi-function
Relay Output
Function Selection
03: OL (Overload warning)
−−
26: OL2 (Overload warning 2)
Overload limit level
Overload warning level
Output current
OL/OL2 output
b022/b025
C041/C111
