2-3
2-1 Installation
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
2
Design
In particular, make sure that the installation site is free from condensation.If condensed water
adheres to the Inverter's internal parts, the electronic components may short-circuit, causing
failure of the Inverter.In addition to avoiding condensation, avoid installing the Inverter under
direct sunlight.
Avoid an environment where the Inverter may be exposed to dust, gases (corrosive, explosive,
and/or flammable), grinding fluid mist, or salt.If a foreign object (e.g. dust) enters the Inverter,
it could result in failure of the Inverter.If using the Inverter in a dusty place, take appropriate
measures. (For example, place the Inverter in a closed panel.)

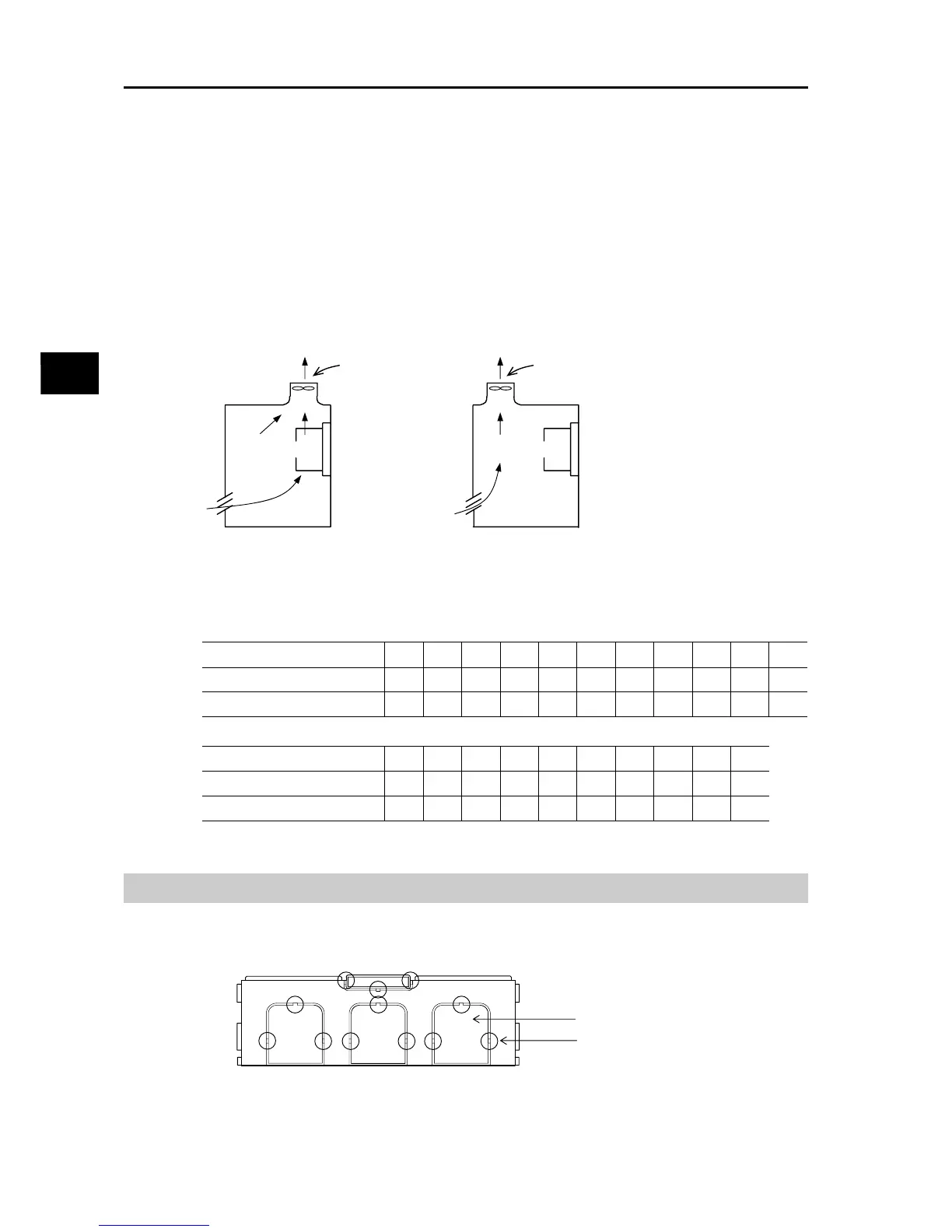

When several Inverters are installed in a panel and a ventilation fan is mounted in the panel,
be careful about the layout of the Inverters and the air intake apertures.Depending on the
layout, the Inverter's cooling effect may deteriorate, resulting in an increase in the ambient
temperature.
Heat Radiation from Inverter
1-phase/3-phase 200 V
3-phase 400 V
Backing Plate
With a model of 5.5 kW or higher capacity, cut off the connection points between the backing
plate and unnecessary portions with nippers or a wire cutter when running cables.
Inverter capacity (kW) 0.1 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15
Load with 100% loss (W) 12 22 30 48 79 104 154 229 313 458 625
Efficiency at rated output (%) 89.5 90 93 94 95 95.5 96 96 96 96 96
Inverter capacity (kW) 0.4 0.75 1.5 2.2 3.0 4.0 5.5 7.5 11 15
Load with 100% loss (W) 35 56 96 116 125 167 229 296 411 528
Efficiency at rated output (%)9293949596969696.296.496.6
Ventilation fan
Ventilation fan
Inverter
Inverter
(Good example) (Bad example)
Unnecessary portions
Connection points
