9-6

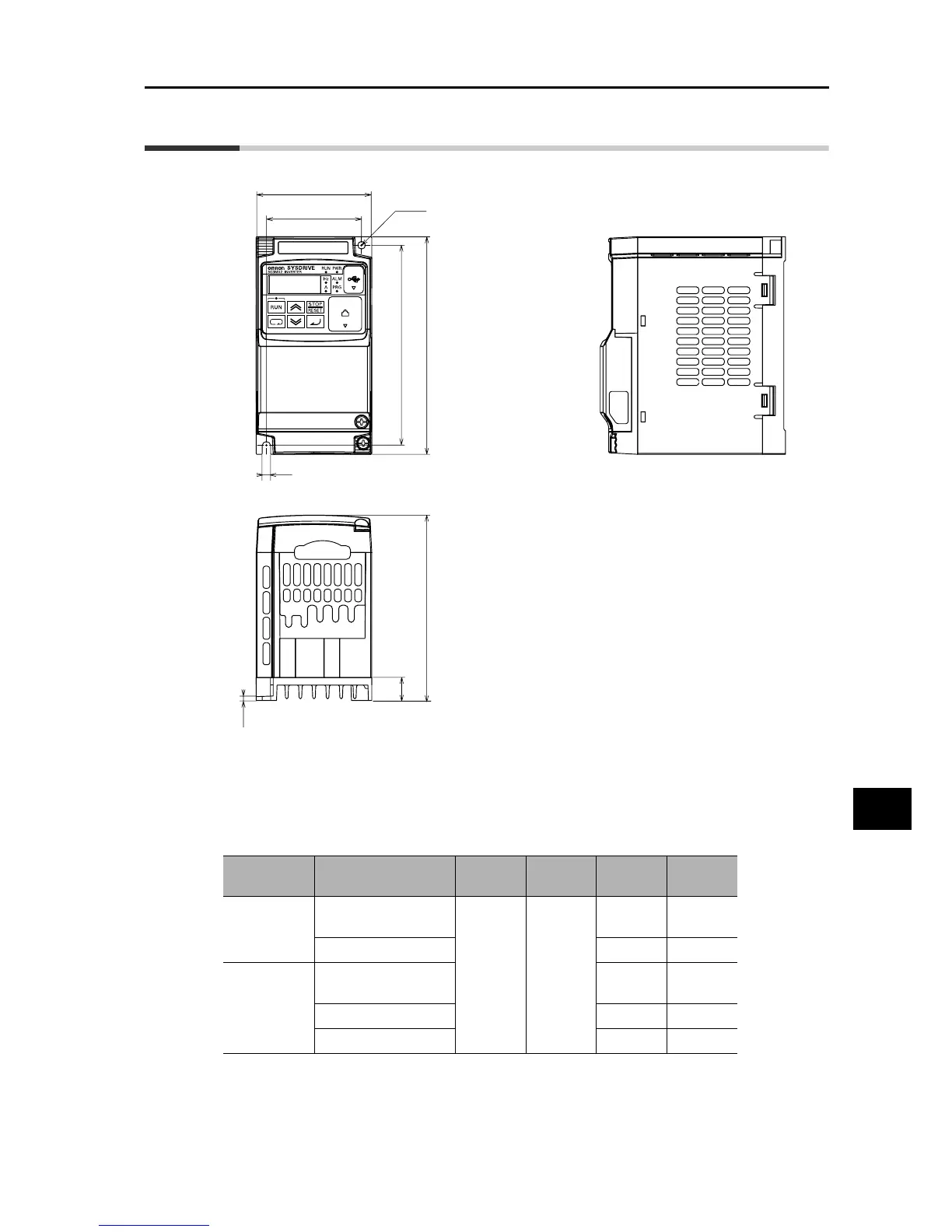

9-2 External Dimensions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
9
Specifications
9-2 External Dimensions
8.8.8.8.
68
56
φ4.5
128
118
5
D
D1
2.6
Power
supply
Model W [mm] H [mm] D [mm] D1 [mm]
1-phase
200 V
3G3MX2-AB001
3G3MX2-AB002
68 128
109 13.5
3G3MX2-AB004 122.5 27
3-phase
200 V
3G3MX2-A2001
3G3MX2-A2002
109 13.5
3G3MX2-A2004 122.5 27
3G3MX2-A2007 145.5 50
