5-121
5-9 Functions Relating to Protections, Warnings and Various Output Signals
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions
Signal During RUN (RUN)
A signal is output by a multi-function output terminal or multi-function relay output terminal
while the Inverter is operating.
This signal turns ON only with Inverter output, and it is not output even when a RUN command
is issued by setting the frequency to 0 Hz. (The RUN lamp is lit when a RUN command is input.)
Allocate "00: RUN (During RUN)" to any Multi-function Output Terminal Selections (C021 to
C022) or Multi-function Relay Output Function Selection (C026).
Also outputs a signal during DC injection braking.

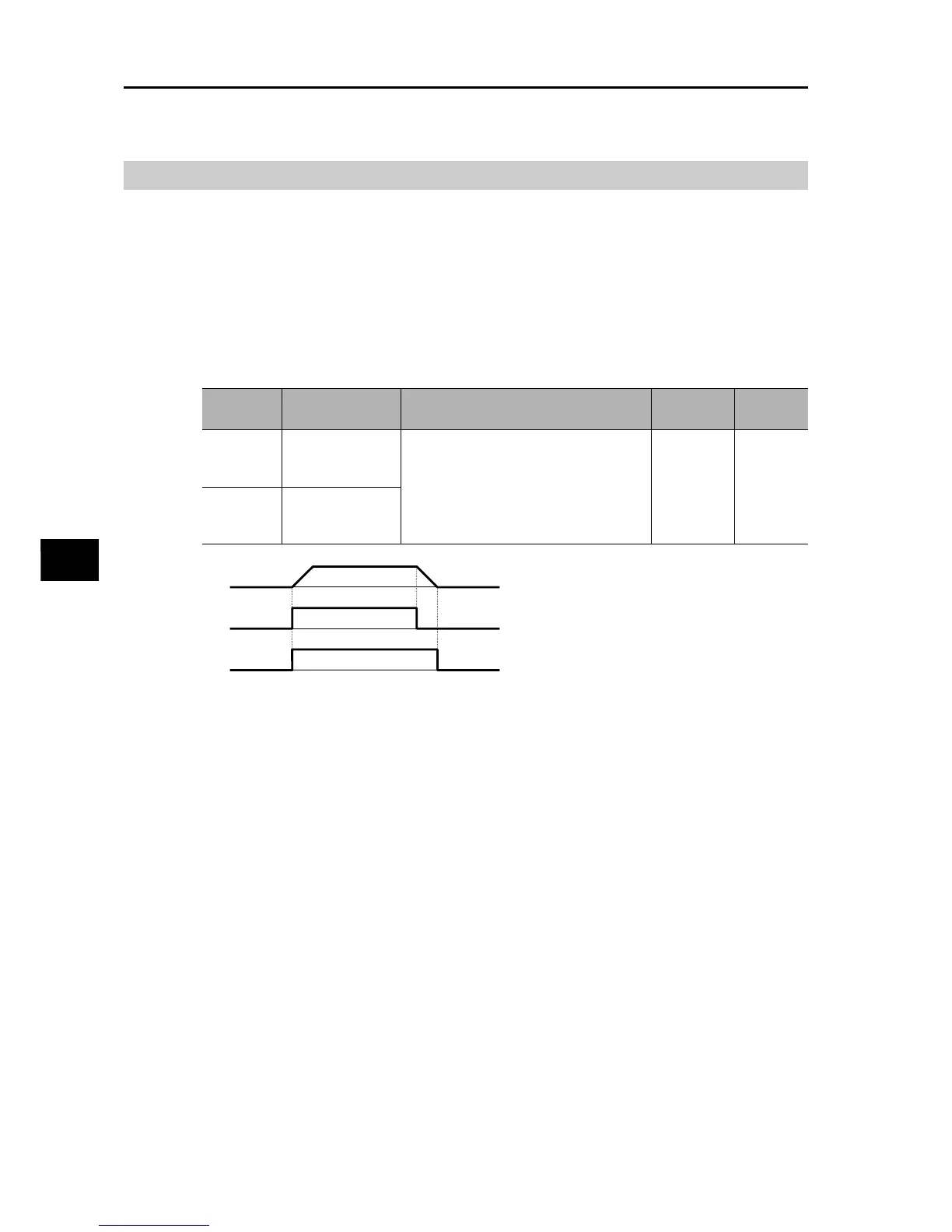

Below is the time chart. The RUN signal will remain ON until the motor stops, even when the
RUN command is turned OFF.
Parameter
No.
Function name Data
Default
setting
Unit
C021 to
C022
Multi-function
Output Terminal
Selection
00: RUN (During RUN) −−
C026
Multi-function
Relay Output
Function Selection
Output frequency
FW input
(forward)
RUN output
