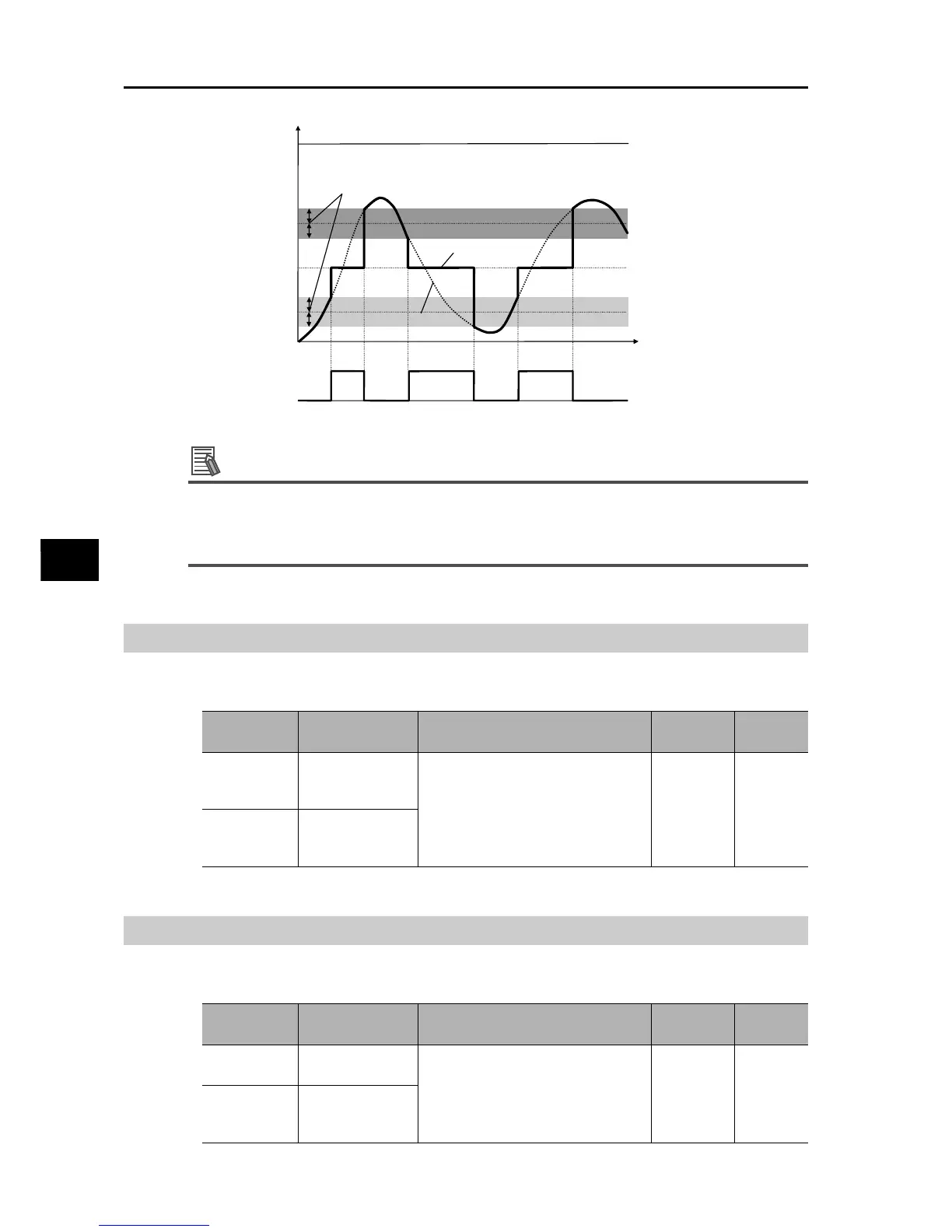

5-133
5-9 Functions Relating to Protections, Warnings and Various Output Signals
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions
Reference
 If this function is used to detect a disconnection, set the disconnection detection level to the
window comparator upper limit level.
(Normally a bandwidth exceeding the upper limit value is used and once the upper limit value is
breached, a disconnection is detected.)
Frequency Command Source (FREF)
This signal is output when Frequency Reference is set to Digital Operator (A001 = 02).
The signal is turned OFF when Frequency Reference is not set to Digital Operator.
RUN Command Source (REF)
This signal is output when RUN Command is set to Digital Operator (A002 = 02).
The signal is turned OFF when RUN Command is not set to Digital Operator.
FV/FI input
Max (100%)
Hysteresis Width
(b062, b065)
Min(FV/FI: 0%)
WCFV/WCFI output
FVDc/FIDc output
Analog value adopted
Analog Input value
Window Comparator
Upper Limit Level
(b060/b063)
Analog Operating Level
on Disconnection
(
b070/b071
)
Window Comparator
Lower Limit Level
(b061/b064)
Parameter
No.
Function name Data
Default
setting
Unit
C021 to C022
Multi-function
Output Terminal
Selection
58: FREF (Frequency command
source)
−−
C026
Multi-function
Relay Output
Function Selection
Parameter
No.
Function name Data
Default
setting
Unit
C021 to C022
Multi-function Output
Terminal Selection
59: REF (RUN command source) −−
C026
Multi-function
Relay Output
Function Selection
