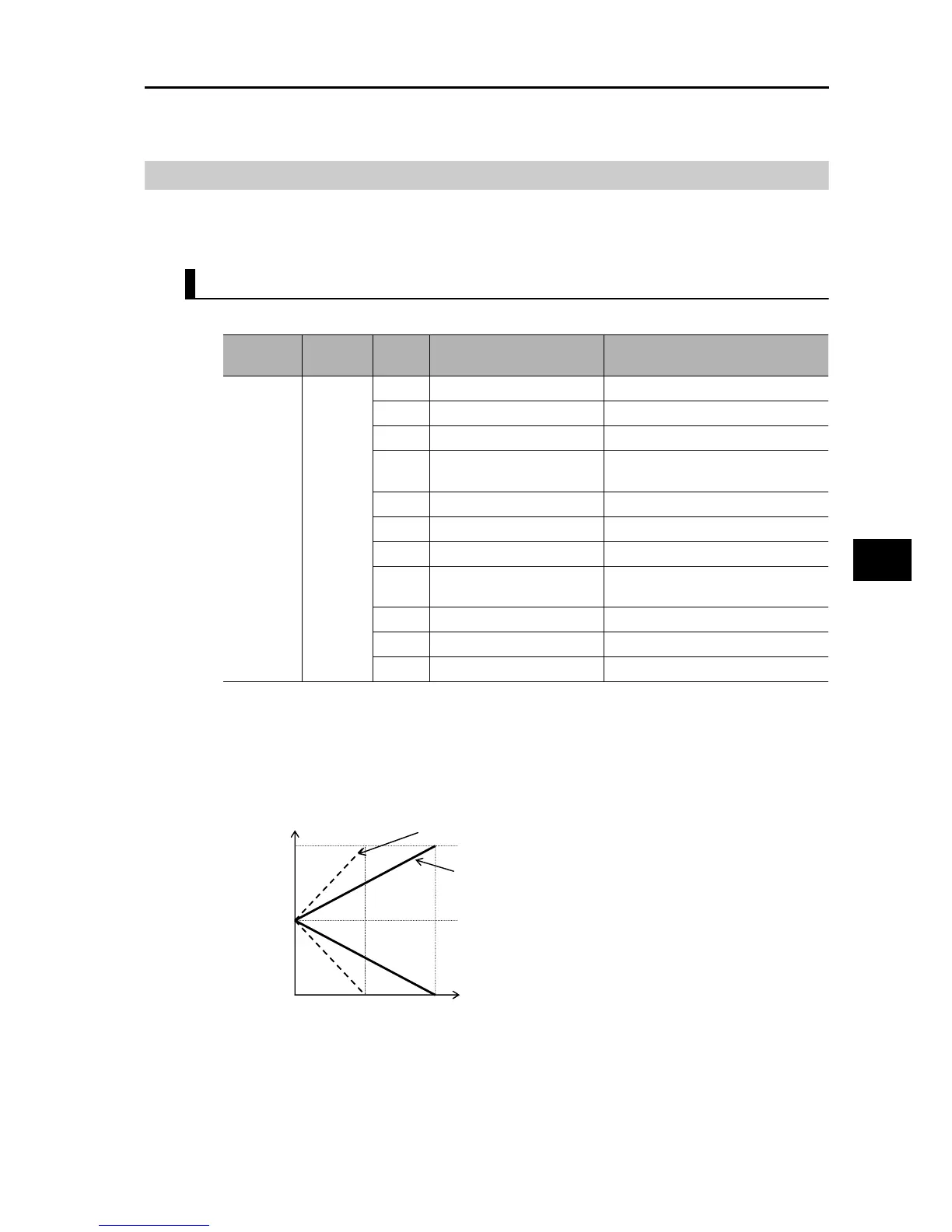

5-4 Analog Signal
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions
AM Terminal (Analog Output)
The AM terminal provides 0 to 10 VDC analog output.
The output frequency and output current can be monitored using the AM terminal on the control
circuit terminal block.
AM Selection
Select a signal to output from the following.
Note: If "00: Output frequency" is monitored during deceleration due to overload limit, the displayed value
may seem unstable in the low-speed range. In this case, changing the selection to "07: LAD
frequency" stabilizes the displayed value.
Parameter
No.
Function
name
Data Description Full-scale value
C028
AM
selection
00 Output frequency
*1
*1."07: LAD frequency" is the frequency reference issued by the Inverter and corresponds to Output
Frequency Monitor (d001).
"00: Output frequency" is the value that is calculated reflecting vector control compensation and
stabilization control under sensorless vector control, etc.
0 to maximum frequency [Hz]
*2
*2.During Simple Position Control (P003 = 01), the real frequency (detected frequency) is displayed.
01 Output current 0 to 200%
02 Output torque
*3
*3.This setting is effective only when the control method is Sensorless Vector Control (A044/A244 = 03).
0 to 200%
04
Output voltage 0 to 133% (Example: 7.5 V at 200 V
for a 200V class)
05 Input power 0 to 200%
06 Electronic thermal load rate 0 to 100%
07 LAD frequency
*1
0 to maximum frequency [Hz]
10
Cooling fin temperature 0 to 200°C (0°C output at 0°C or
lower)
11 Output torque (signed)
*3
0 to 200%
*4
*4.Below are the specifications of the output torque (signed).
13 Do not set. −
16 Do not set. −
200 100
Torque (%)
A
M output (V)
AM Bias Setting (C109) = 50%
10
5
0
When AM Gain Adjustment (C106) = 100 %
When AM Gain Adjustment (C106) = 200 %
