5-4 Analog Signal
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

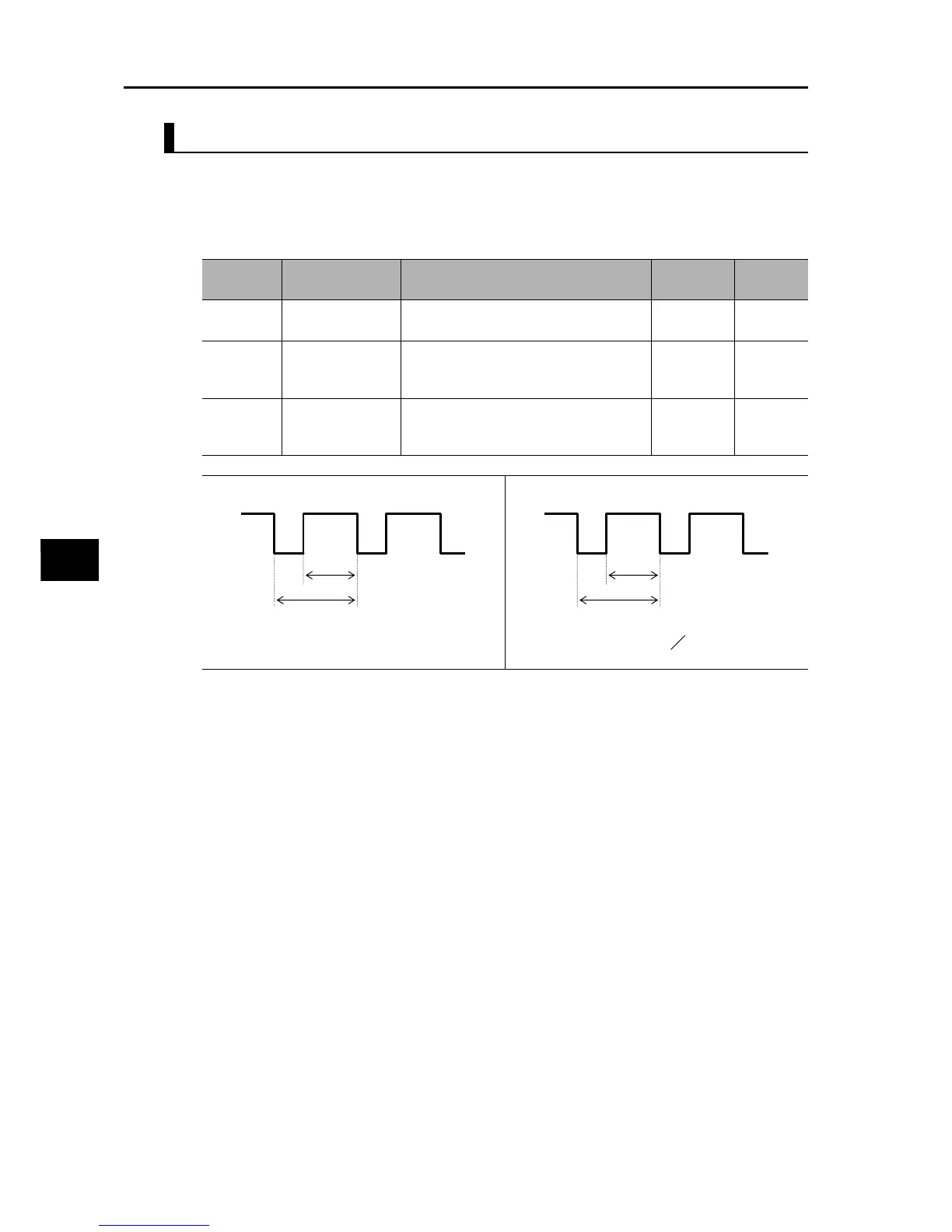

MP Gain Setting
The output gain can be set using C105 only when the PWM output target is selected by C027.
The output pulse can be set to C030 only when the digital current monitor is selected by C027.
(C030 value = 1,440 Hz)
The output pulse can be set to C047 only when the pulse train input monitor is selected by
C027. (Output = Input × C047)
Parameter
No.
Function name Data
Default
setting
Unit
C105 MP Gain Setting
50. to 200.
Set a gain for the MP monitor.
100. %
C030
Digital Current
Monitor Reference
Value
0.2 × Rated current to 2.0 × Rated current
(Set a current value at 1440 Hz output.)
Rated
current
A
C047
Pulse Train Output
Coefficient
0.01 to 99.99
Output pulse frequency = Input pulse
frequency × (C047)
1.00 −
Example 1) PWM output Example 2) Pulse output
Cycle T: Constant (6.4 ms)
Duty t/T : Variable
t
T
Cycle T: Variable
Duty t/T : Fixed to
t
T
1
2
