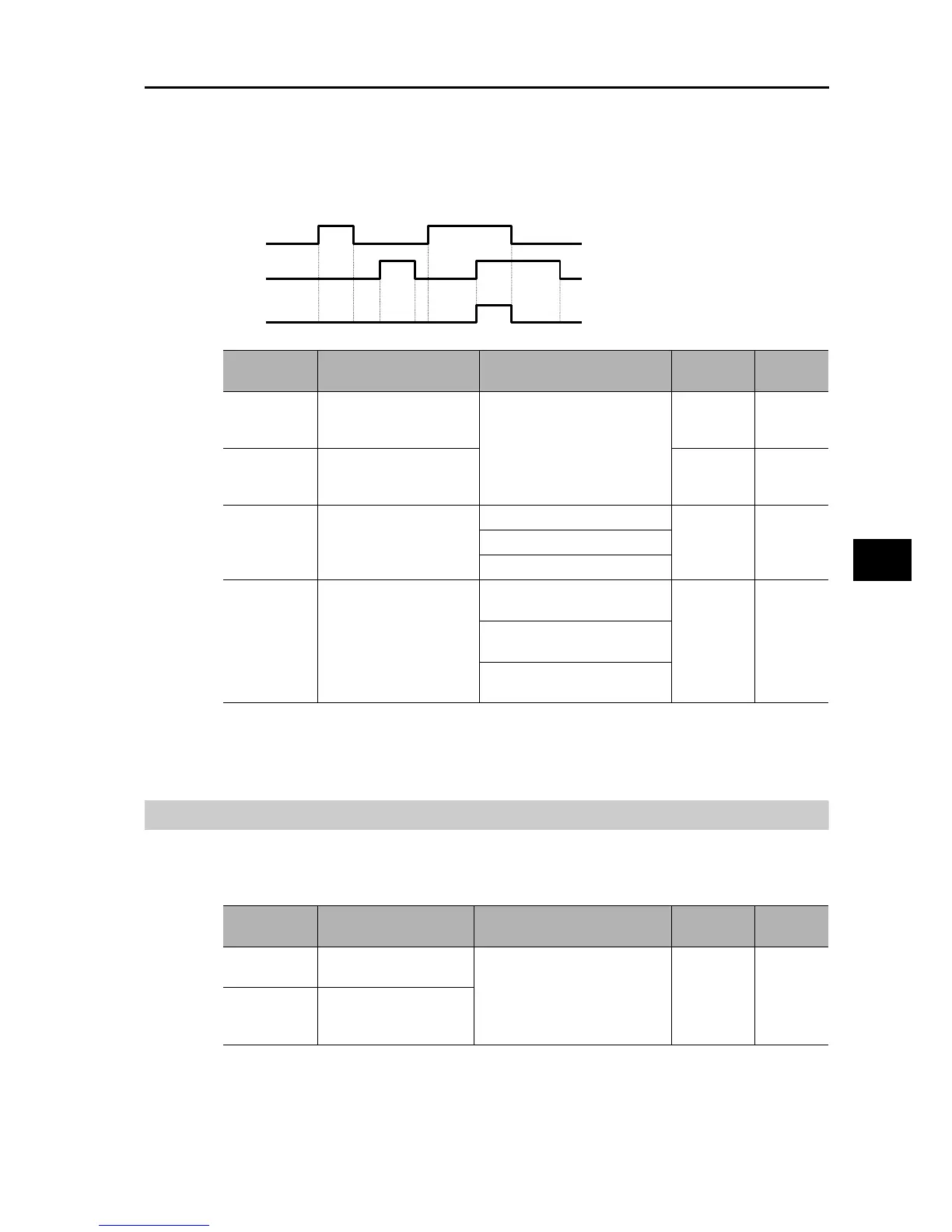

5-9 Functions Relating to Protections, Warnings and Various Output Signals
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions
Example) To output a logic output 1 (LOG1) signal through AND operation of RUN signal (00:
RUN) and Set frequency min. reached (02: FA2) to multi-function output terminal P2
Multi-function Output Terminal P2 Selection (C022): 33 (LOG1)
Logic Output Signal 1 Selection 1 (C142) : 00 (RUN)
Logic Output Signal 1 Selection 2 (C143) : 02 (FA2)
Logic Output Signal 1 Operator Selection (C144) : 00 (AND)
Capacitor Life Warning (WAC)
This function estimates service life of the capacitor on the PCB, based on the Inverter's internal
temperature and ON time.
Life assessment monitor d022 shows the status of this signal.
Parameter
No.
Function name Data
Default
setting
Unit
C142
C145
C148
Logic Output Signal
Selection 1
*1
*1.Select operand 1.
00 to 63
(Except 33 to 35, 62, 63, and
"no".)
00 −
C143
C146
C149
Logic Output Signal
Selection 2
*2
*2.Select operand 2.
00 −
C144
C147
C150
Logic Output Signal
Operator Selection
00: AND
00 −01: OR
02: XOR
C021 to C022
C026
Multi-function Output
Terminal Selection
Multi-function Relay
Output Function Selection
33: LOG1: Logic operation
output 1
−−
34: LOG2: Logic operation
output 2
35: LOG3: Logic operation
output 3
Parameter
No.
Function name Data
Default
setting
Unit
C021 to C022
Multi-function Output
Terminal Selection
39: WAC (Capacitor life
warning)
−−
C026
Multi-function Relay
Output Function
Selection
RUN
FA2
LOG1
