3-3
3-1 Name of Parts of the Digital Operator
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
3
Operation

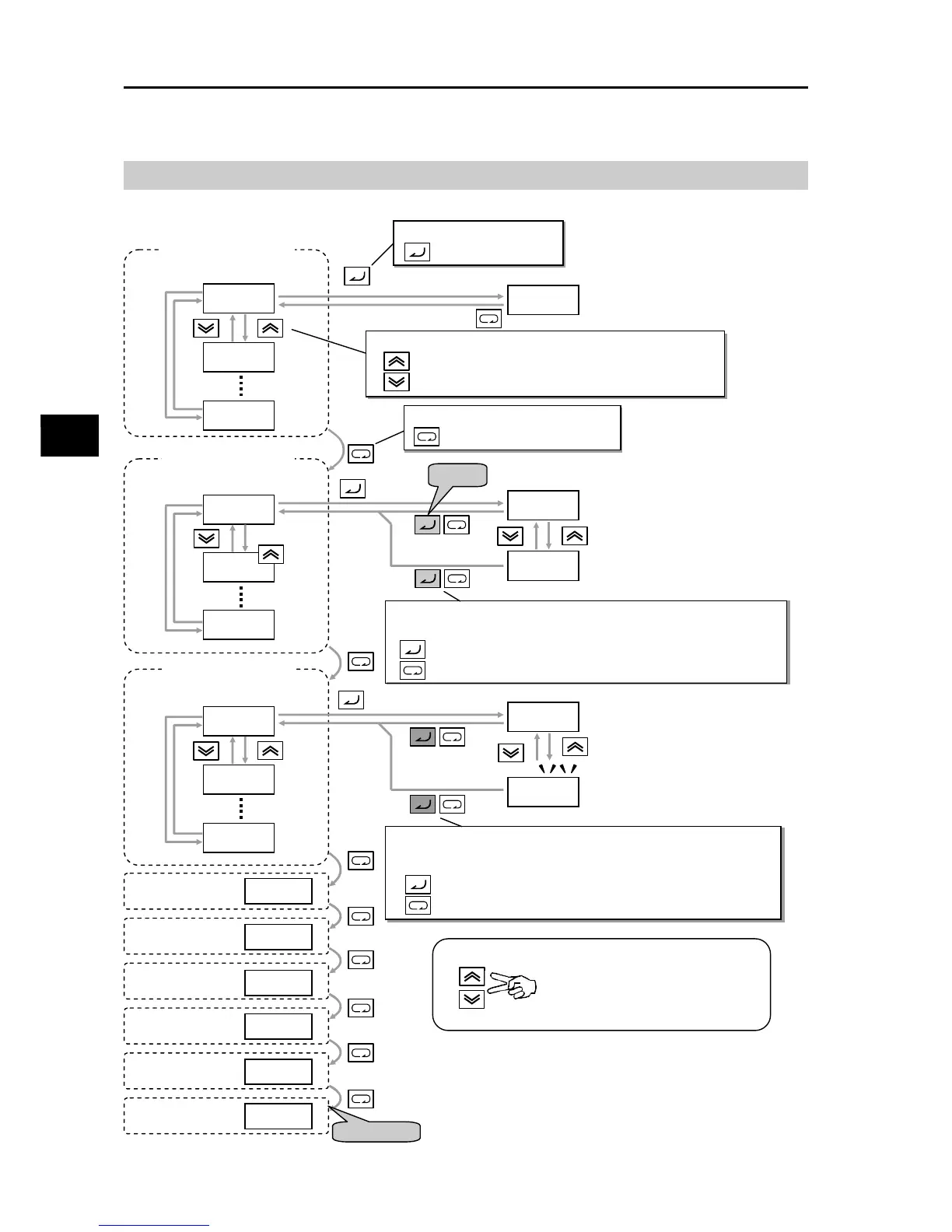

Key Operation System
The following describes the key operation system of the Digital Operator.
dk0k0k1
dk0k0k2
0.0k0
fk0k0k1
fk0k0k2
5k0.0k0
5k0.0k1
0k0
0k1
dk1k0k4
fk0k0k4
Function group "d"
Parameter display
When parameter is displayed
: Move to data display
Data display
*
Because the function group "d" is
a monitor mode, data cannot be changed.
d001: Output Frequency Monitor
When parameter is displayed
: Increases/decreases parameters by Increment/Decrement
keys. Pressing the Increment key at the end returns to the
beginning of the same function group.
When parameter is displayed
: Move to the next function group
Store
Data display
F001: Output Frequency Setting
When data is displayed (F001 to F*03)
Since changed are reflected the moment they are changed, the display
does not blink when any of these parameters is changed.
: Store the value in the EEPROM and return to the parameter display
: Return to the parameter display without storing the value in the EEPROM
Function group "F"
Parameter display
Function group "A"
Parameter display
Data display
A001: Frequency Reference Selection
ak0k0k1
ak0k0k2
ak1k6k5
When data is displayed
If data is changed, all digits will blink.
The new data is not yet reflected while its digits are still blinking.
: Confirm and store the changes and return to the parameter display
: Cancel the change and return to the parameter display
Pressing the Increment/Decrement keys
simultaneously in the parameter display
or data display can change the values
quickly and with ease.
For details, refer to the next page.
Function group "b"
Function group "C"
Function group "H"
Function group "P"
Function group "U"
Function group "d"
bk0k0k1
ck0k0k1
hk0k0k1
pk0k0k1
uk0k0k1
dk0k0k1
Return to d001
* Return to the function group "d" after the function group "U."
To Next Page
