3-4
3-1 Name of Parts of the Digital Operator
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
3
Operation

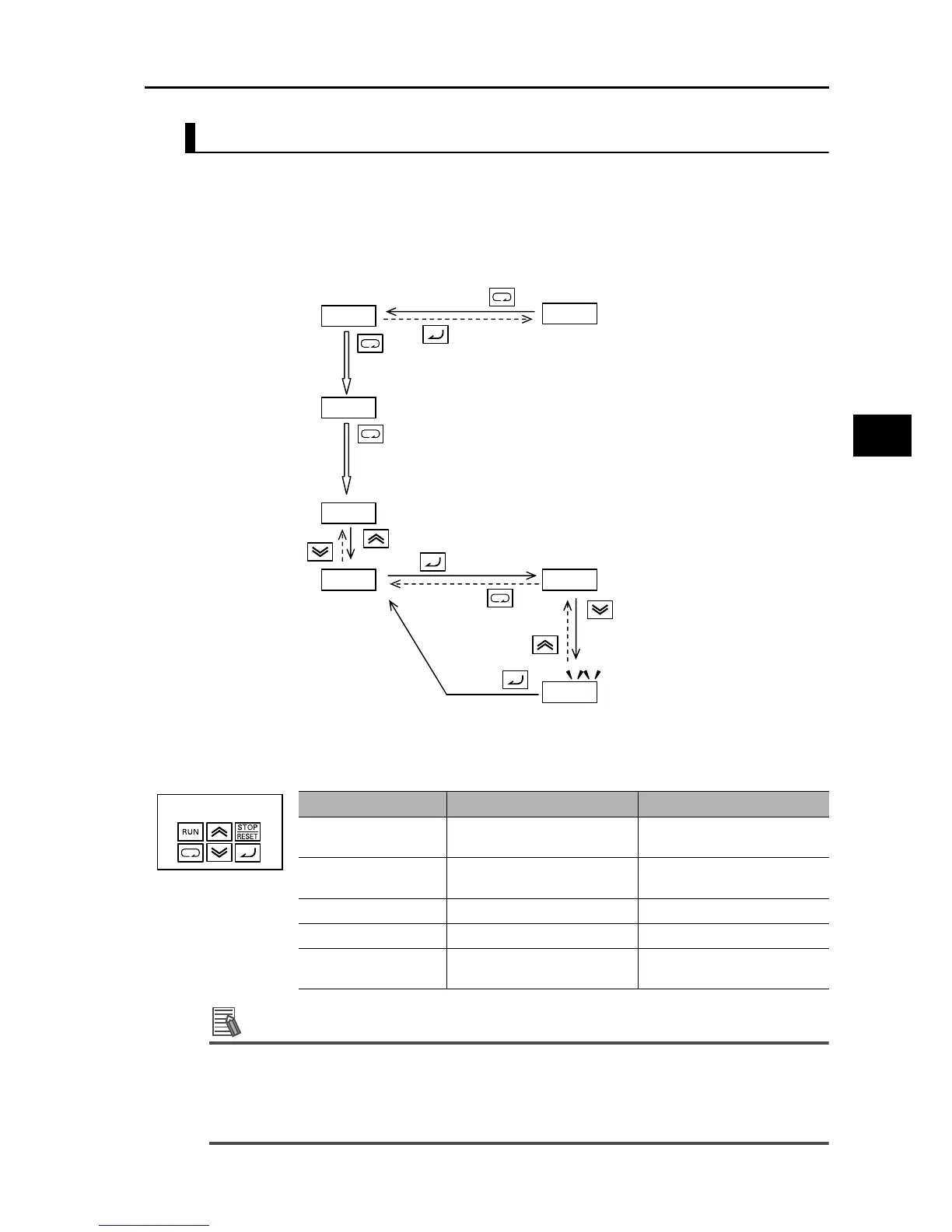

Example of Basic Operations
An example of basic parameter change operations is given below.
<Operation example of changing RUN Command Selection (A002) from Digital
Operator (02) to Terminal Block (01) when "0.00" is shown on the output frequency
monitor screen after the power has been turned ON>
Since F parameters other than F004 are reflected in real time the moment they are changed,
the display does not blink when any of these parameters is changed.
Reference
Regardless of the Digital Operator display, pressing and holding the Mode key (for 1 second or
more) displays the data for Output Frequency Monitor (d001) again. However, the selected mode
continues to cycle among the function groups while the Mode Key is held, according to the
designed operation of the key. (Example: A001→F001→b001→C001→...Elapse of 3 seconds,
followed by display of "50.00")
Output Frequency
Monitor
(2) Press the Mode Key to
display the parameters.
(1) The d001 (Output Frequency Monitor)
data is displayed during power ON time.
(Default setting)
dk0k0k1
(3) Press the Mode Key to move the function group.
0.0k0
fk0k0k1
(4) Press the Mode Key to move the function group.
ak0k0k1
(5) Press the Increment key to
increment the parameter by 1.
RUN Command Selection
ak0k0k2
(6) Press the Enter key to
move to the data display.
0k2
0k1
When the display first appears,
all data digits are lit.
(7) Press the Decrement key to
decrement the data by 1.
If data is changed, all digits will blink.
The new data is not yet reflected
while its digits are still blinking.
(8) Press the Enter key to
confirm and store the value.
(9) Pressing and holding the Enter key
(for 1 second or more) jumps to the
output frequency monitor display.
Key name Function code is displayed Data is displayed
Mode key Move to the next function group Value is cancelled and
return to the parameter display
Enter key Proceed to the data display Value is confirmed/stored and
return to the parameter display
Increment key Parameter is incremented by 1 Data is incremented by 1
Decrement key Parameter is decremented by 1 Data is decremented by 1
Increment/Decrement are
pressed simultaneously
Move to the individual input
mode
Move to the individual input
mode
Key arrangement
