Omron SYSDRIVE MX2 SERIES User Manual

5-40
5-4 Analog Signal
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

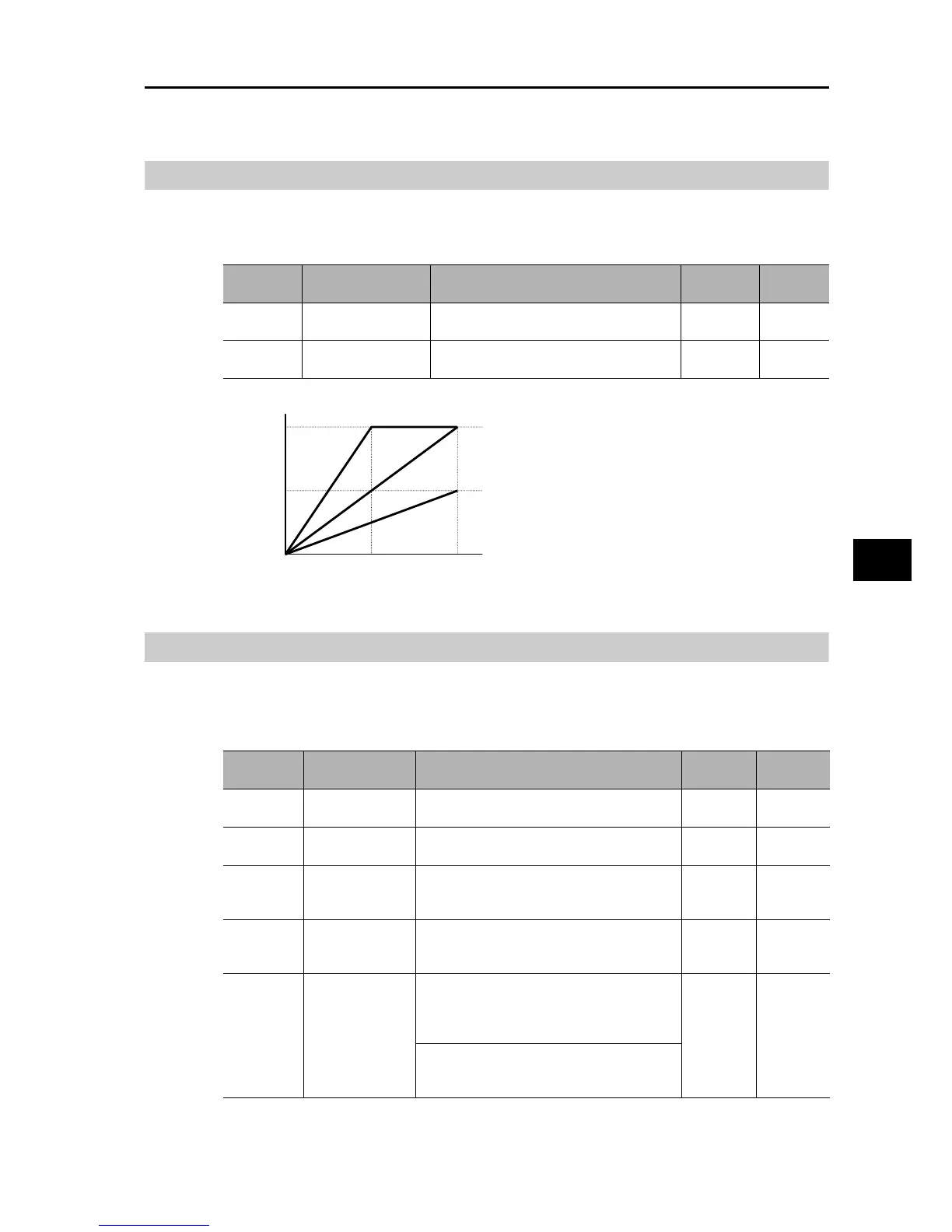

Analog Input Adjustment
The analog input gain can be changed. Use this function to fine-tune analog input signals.
Use "External Frequency Start/End" on page 5-40 to set for scale conversion from 0 to 10 V,
to 0 to 5 V, for example.
External Frequency Start/End
External Analog Input (Frequency Reference)
FV-SC terminal : 0 to 10 V
FI-SC terminal : 4 to 20 mA
VR : Volume on the external Digital Operator 3G3AX-OP01.
Note 1: To input current between 4 and 20 mA, set A103 to 20%. (Default value: 20% = 20 mA × 20% = 4 mA)
Note 2: To input voltage between 0 and 5 V, set A014 to 50%.
Parameter
No.
Function name Data
Default
setting
Unit
C081 FV Adjustment
0. to 200.0
The gain of input voltage is fine-tuned.
100. %
C082 FI Adjustment
0. to 200.0
The gain of input current is fine-tuned.
100. %
Maximum
frequency
10 V, 20 mA 5 V, 12 mA
200 %
100 %
50 %
0
0 V, 4 mA
Frequency settings
Parameter
No.
Function name Data
Default
setting
Unit
A011/A101/
A161
FV/FI/VR
Start Frequency
0.00 to 400.0 (1000.)
Set a start frequency.
0.00 Hz
A012/A102/
A162
FV/FI/VR
End Frequency
0.00 to 400.0 (1000.)
Set an end frequency.
0.00 Hz
A013/A103/
A163
FV/FI/VR Start
Ratio
0. to FV/FI/VR end ratio
Set a start ratio relative to an external
frequency reference of 0 to 10 V, 0 to 20 mA.
0. %
A014/A104/
A164
FV/FI/VR End
Ratio
FV/FI/VR start ratio to 100.
Set an end ratio relative to an external
frequency reference of 0 to 10 V, 0 to 20 mA.
100. %
A015/A105/
A165
FV/FI/VR Start
Selection
00: Start Frequency (A011/A101/A161)
(For the output frequencies from 0% to
A013/A103/A163, the values of A011/A101/
A161 are output.)
01 −
01: 0 Hz
(For the output frequencies from 0% to
A013/A103/A163, 0 Hz is output.)
