9-3 Options
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
9
Specifications
Input Noise Filter (3G3AX-NFIxxxx)

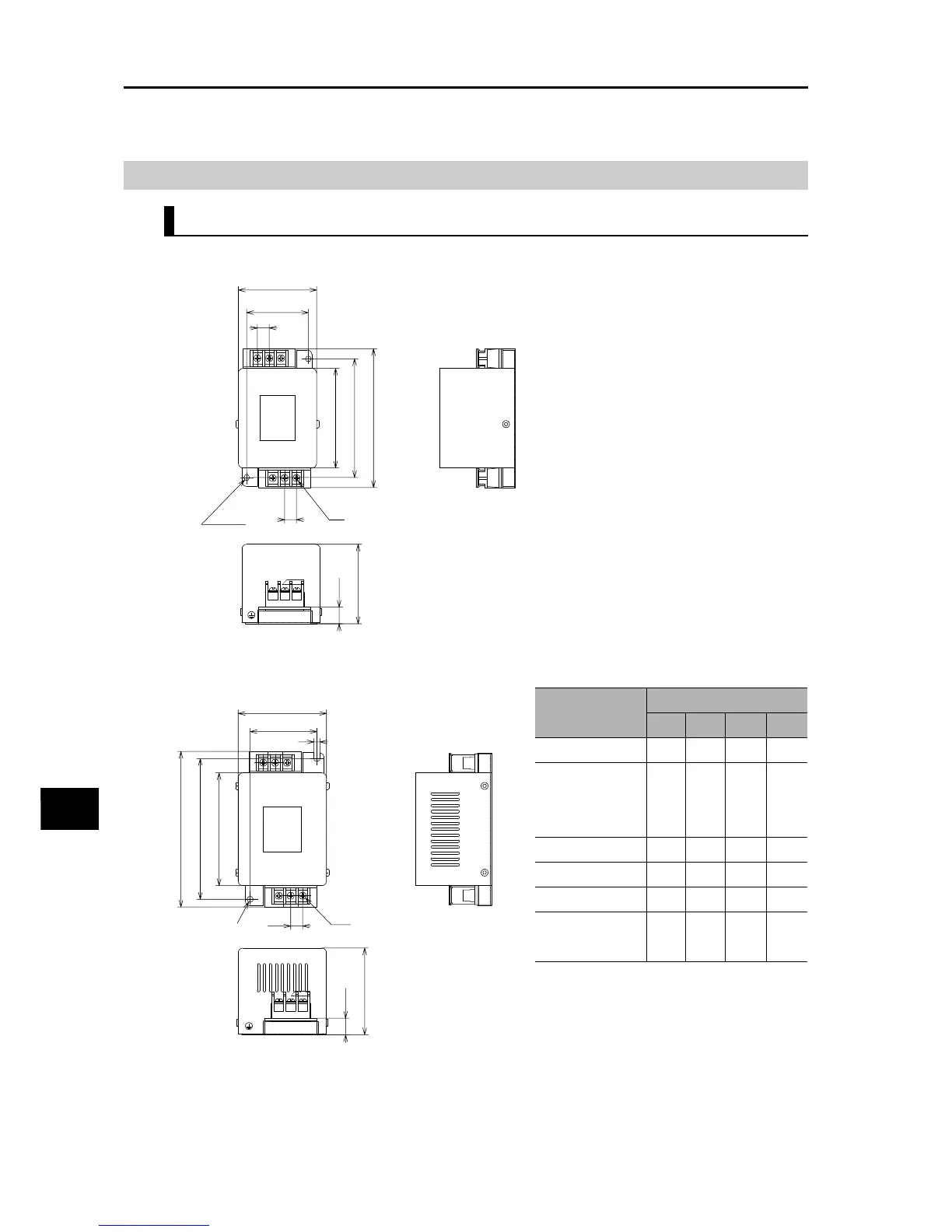

Dimensional Drawing
3G3AX-NFI21/-NFI22
3G3AX-NFI23/-NFI24/-NFI41/-NFI42/-NFI43/-NFI44
Model
Dimensions (Unit: mm)
A B C D
3G3AX-NFI23 128 118 56 10
3G3AX-NFI24 144 130 56 11
3G3AX-NFI41 144 130 56 11
3G3AX-NFI42 144 130 56 11
3G3AX-NFI43 144 130 56 11
3G3AX-NFI44 144 130 56 11
Inverter side
66
52
(10)
L3' L2' L1'
L3 L2 L1
(84)
100
117
2-φ5.0
10
M4
67 MAX
(15)
Power supply
side
Inverter side
Power supply
side
φ5
L3' L2' L1'
L3 L2 L1
A
B
(95)
74
C
(D)
5
M4
(15)
73
