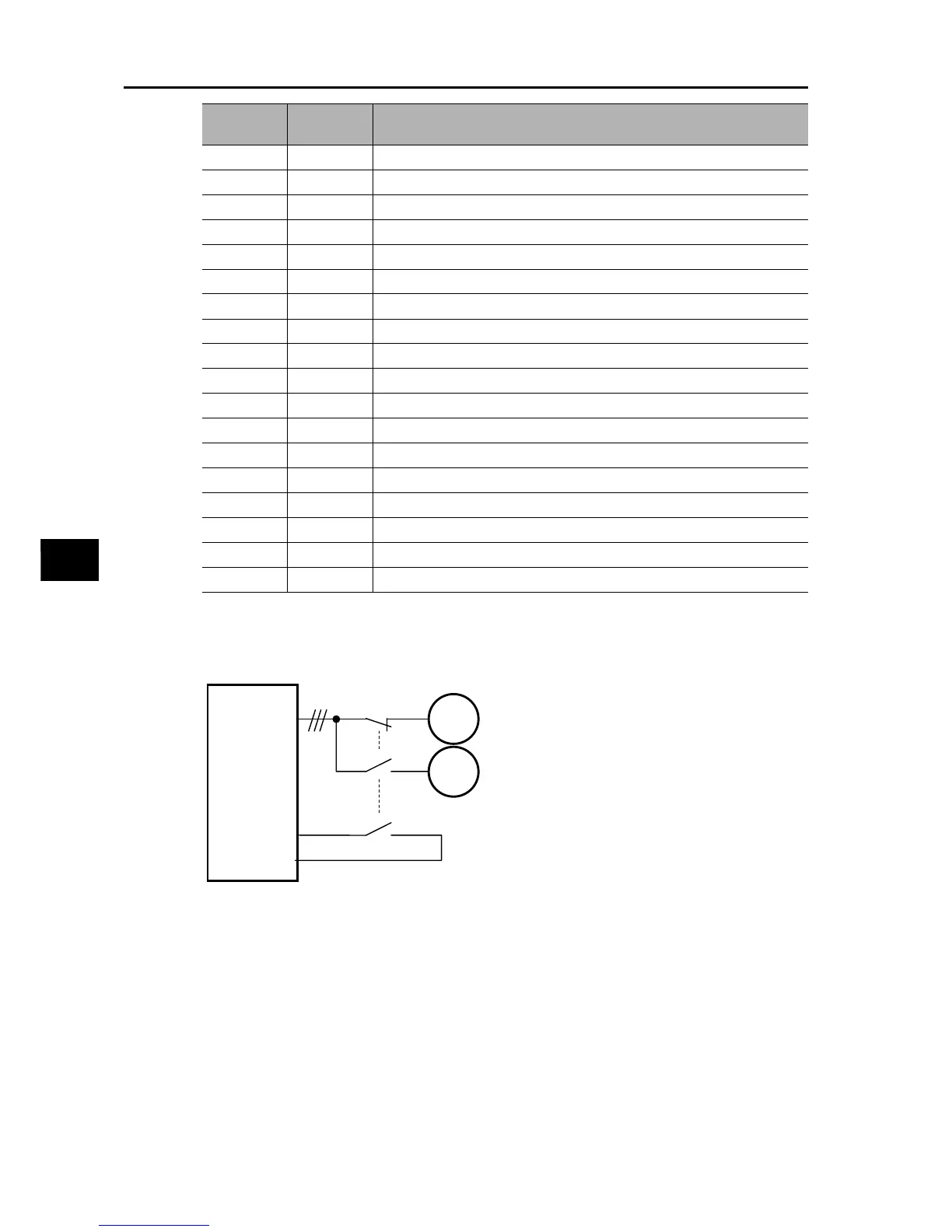

5-5 Settings Relating to Control Method
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions
There's no indication of control functions 1/2 on the display. You'll see which one is enabled
by checking whether the terminal is turned on/off.
The control functions 1/2 cannot be switched during operation. Switching is possible only while
operation is stopped, which means that the functions will switch after the operation stops.
b022 b222 Overload Limit Level
b023 b223 Overload Limit Parameter
C041 C241 Overload Warning Level
H002 H202 Motor Parameter
H003 H203 Motor Capacity
H004 H204 Motor Pole Number
H005 H205 Speed Response
H006 H206 Stabilization Parameter
H020 H220 Motor Parameter R1
H021 H221 Motor Parameter R2
H022 H222 Motor Parameter L
H023 H223 Motor Parameter Io
H024 H224 Motor Parameter J
H030 H230 Motor Parameter R1 (Auto-tuning Data)
H031 H231 Motor Parameter R2 (Auto-tuning Data)
H032 H232 Motor Parameter L (Auto-tuning Data)
H033 H233 Motor Parameter Io (Auto-tuning Data)
H034 H234 Motor Parameter J (Auto-tuning Data)
Motor 1
control
Motor 2
control
Setting item
Motor 1
Motor 2
U
V
W
SET
SC
SET terminal
OFF: Control 1 (motor 1)
OFF: Control 2 (motor 2)
Inverter
