5-6 Operation Functions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

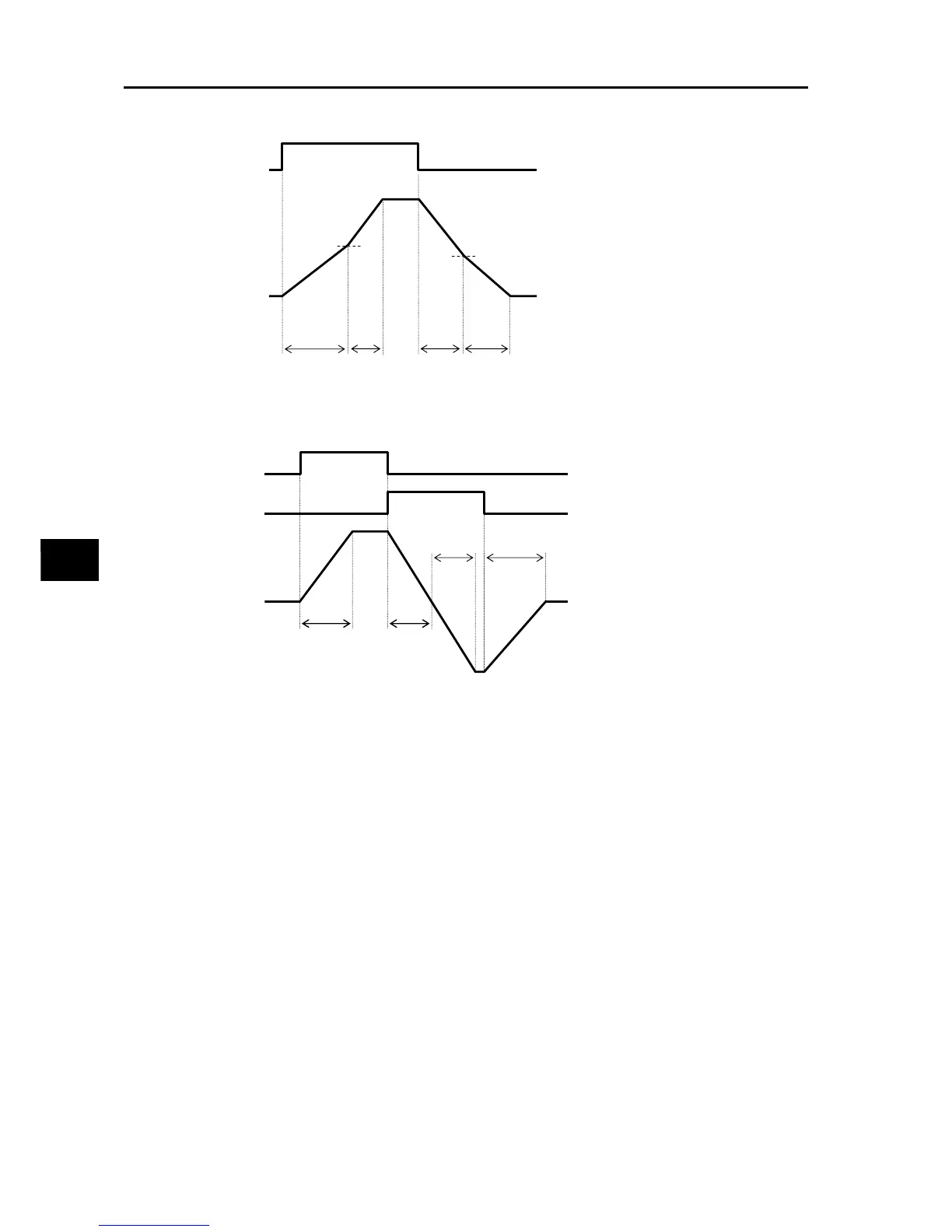

Example 2) Switching via Frequency (A094/A294 = 01)
Example 3) Forward/Reverse Switching (A094/A294 = 02)
FW input
Output frequency
Acceleration
time 1
Deceleration
time 2
Acceleration
time 2
Deceleration
time 1
F002/
F202
A092/
A292
A093/
A293
F003/
F203
A095/A295
A096/A296
FW input
RV input
Output frequency
Acceleration
time 1
Deceleration
time 2
Acceleration
time 2
Deceleration
time 1
F002/
F202
A092/
A292
A093/
A293
F003/
F203
