5-12 Simple Position Control Function
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

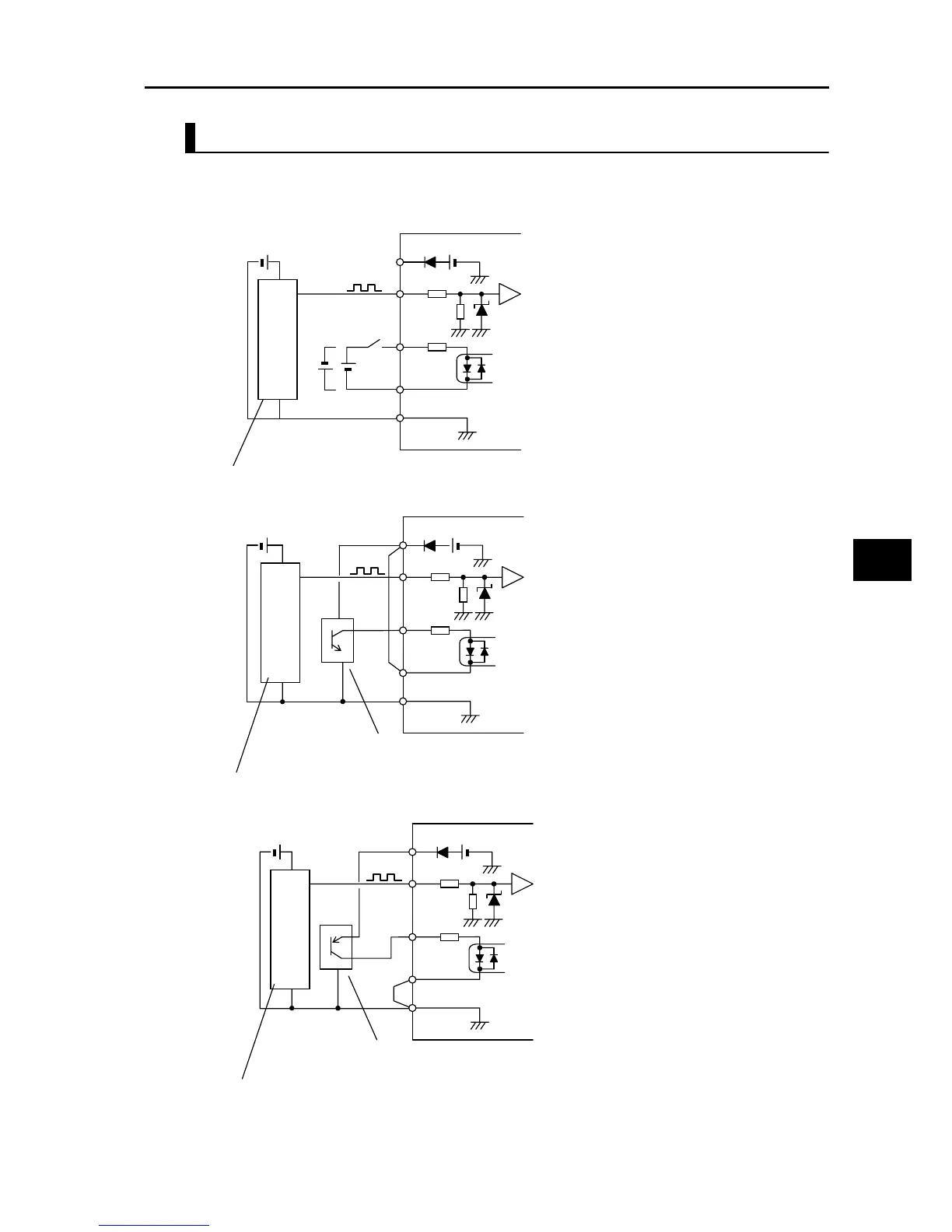

1-pulse + Direction Signal
Input the 1-phase pulse to the RP terminal and direction signal to the EB terminal. The EB
terminal can support both the sink logic and source logic by changing the shorting bar position.
Allocate EB to multi-function input terminal S7/EB.
When the EB terminal is ON, the direction is forward. When it is OFF, the direction is reverse.
P24
RP
S7/EB
PSC
SC
Vcc
GND
Out
3G3MX2
Encoder
Voltage-output or PNP
open-collector type encoder
Direction
P24
RP
S7/EB
PSC
SC
Vcc
GND
Out
3G3MX2
Encoder
Voltage-output or PNP
open-collector type encoder
Sink transistor
Direction
P24
RP
S7/EB
PSC
SC
Vcc
GND
Out
3G3MX2
Encoder
Voltage-output or PNP
open-collector type encoder
Source transistor
Direction
