Omron SYSDRIVE MX2 SERIES User Manual

9-16
9-3 Options
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
9
Specifications

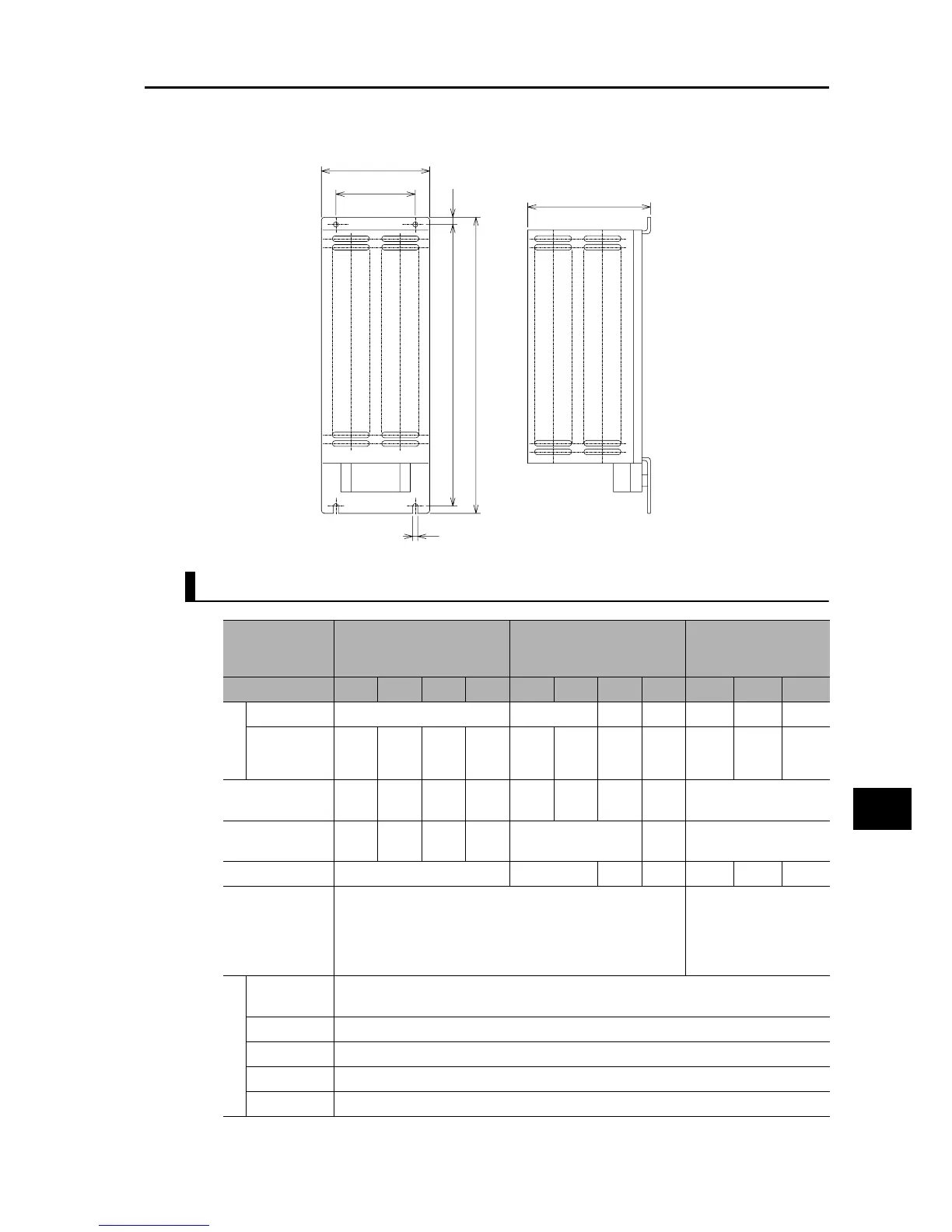

3G3AX-RBC12001
Specifications
150
170
7
110
10390
410
Compact type
(3G3AX-RBAxxxx)
Standard type
(3G3AX-RBBxxxx)
Medium capacity
type
(3G3AX-RBCxxxx)
Model 1201 1202 1203 1204 2001 2002 3001 4001 4001 6001 12001
Resistance
Capacity 120 W 200 W 300 W 400 W 400 W 600 W 1,200 W
Resistance
(Ω)
180 100 50 35 180 100 50 35 50 35 17
Allowable braking
frequency (%)
5 2.5 1.5 1.0 10 7.5 7.5 7.5 10
Allowable continuous
braking time (s)
20 12 5 3 30 20 10
Weight (kg) 0.27 0.97 1.68 2.85 2.5 3.6 6.5
Fault detection
function
Built-in thermal (contact capacity 240 VAC, 2 A max.,
minimum current 5 mA),
Normally ON (NC contact)
Built-in temperature fuse (non-recovery)
Built-in temperature relay,
Normally ON (NC)
Contact capacity:
240 VAC 3 A (R load), 0.2 A
(L load), 36 VDC 2 A (R load)
General specification
Ambient
temperature
−10 to 50°C
Humidity 20% to 90% (RH) with no condensation
Vibration 5.9 m/s(0.6 G) 10 to 55 Hz Complies with JISC0911
Location At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Cooling method Self-cooling
