Oracle X7-2 Service Manual

Identify and Remove the Failed DIMM
See “Using the Server Fault Remind Button” on page 104.

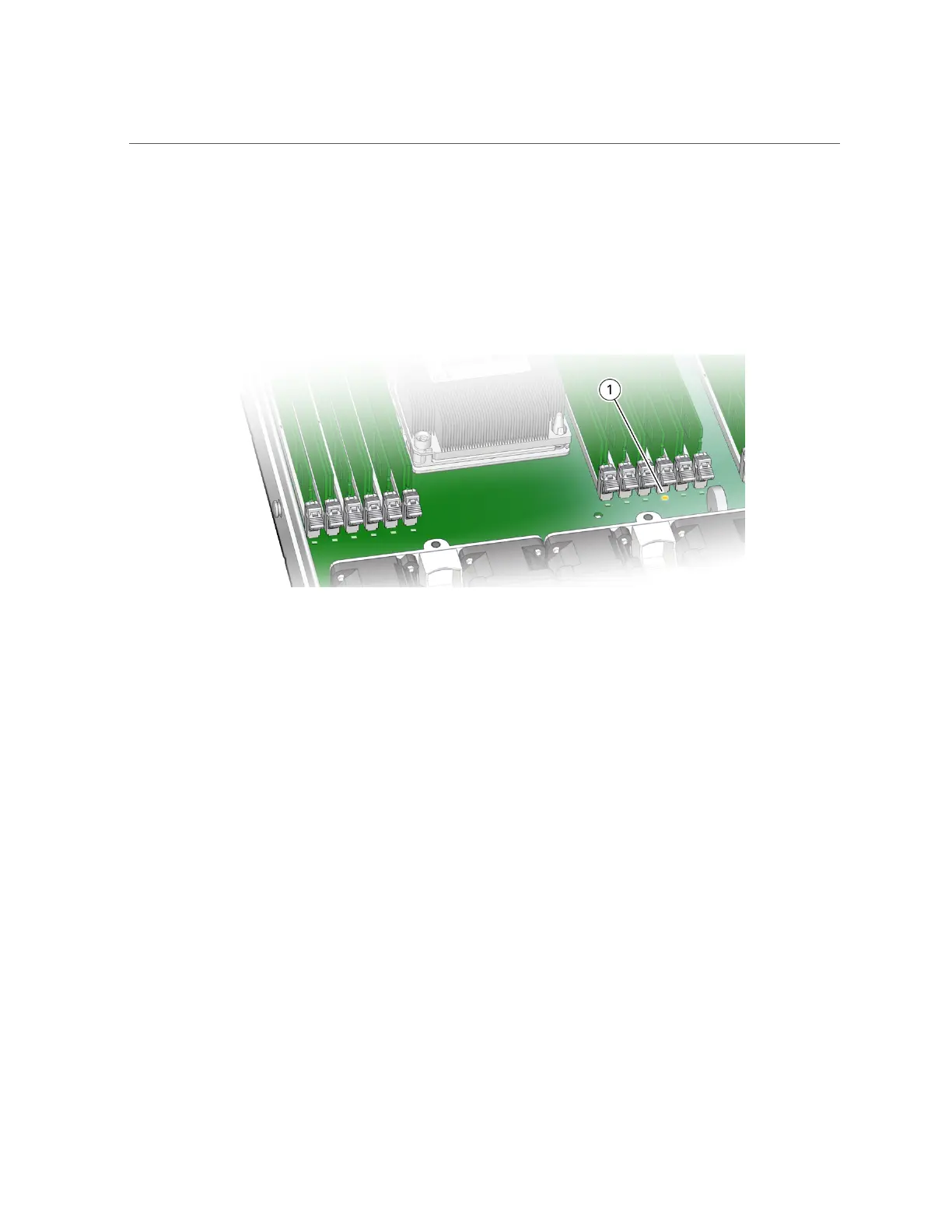

Faulty DIMMs are identified with a corresponding amber LED on the motherboard.
■
If the DIMM Fault LED is off, then the DIMM is operating properly.
■
If the DIMM Fault LED is on (amber), then the DIMM is faulty and should be replaced [1].
3.
To remove the failed DIMM do the following:
a.
Rotate both DIMM socket ejectors outward as far as they will go.
The DIMM is partially ejected from the socket.
106 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
