Oracle X7-2 Service Manual

Remove an M.2 Flash SSD
Related Information
■
“Remove an M.2 Mezzanine” on page 127
Remove an M.2 Flash SSD
1.
Perform the steps to remove the M.2 mezzanine containing the M.2 flash SSDs
from PCIe riser.
See “Remove an M.2 Mezzanine” on page 127. Place the M.2 mezzanine on an antistatic
mat.
2.

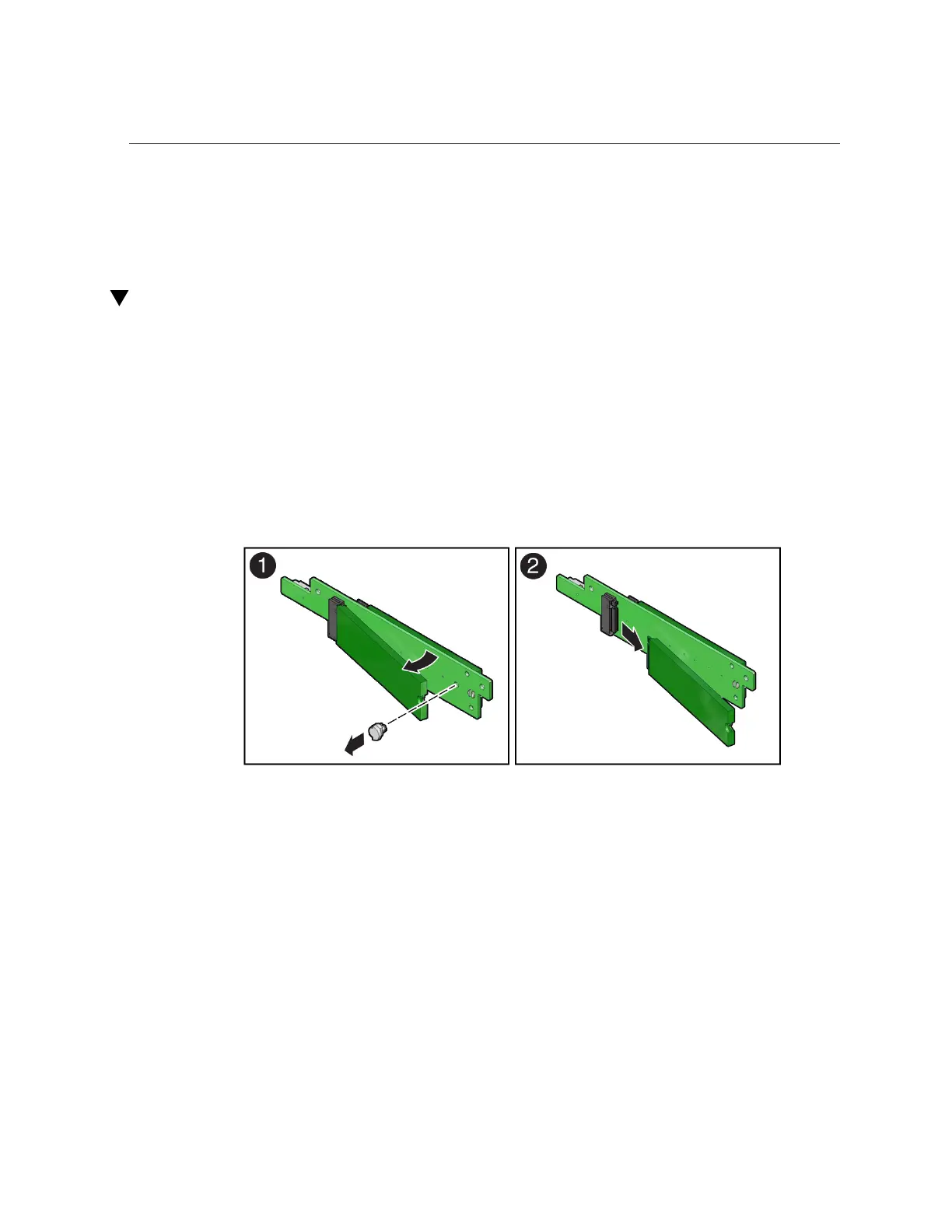

Using your fingers, push the plastic retainer clip through the M.2 mezzanine to
release the M.2 flash SSD from the mezzanine. [1].
3.
Remove the plastic retainer clip from the M.2 flash SSD.
4.
Remove the M.2 flash SSD from the mezzanine [2].
a.
Lift up on the end of the M.2 flash SSD where the plastic retainer clip was
removed by one-half to one inch.
b.
Gently slide the M.2 flash SSD card rearward and out of the connector to
disengage the SSD contacts from the mezzanine socket.
Place the M.2 flash SSD on an antistatic mat.
130 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
