Install the Temperature Sensor
Install the Temperature Sensor
1.

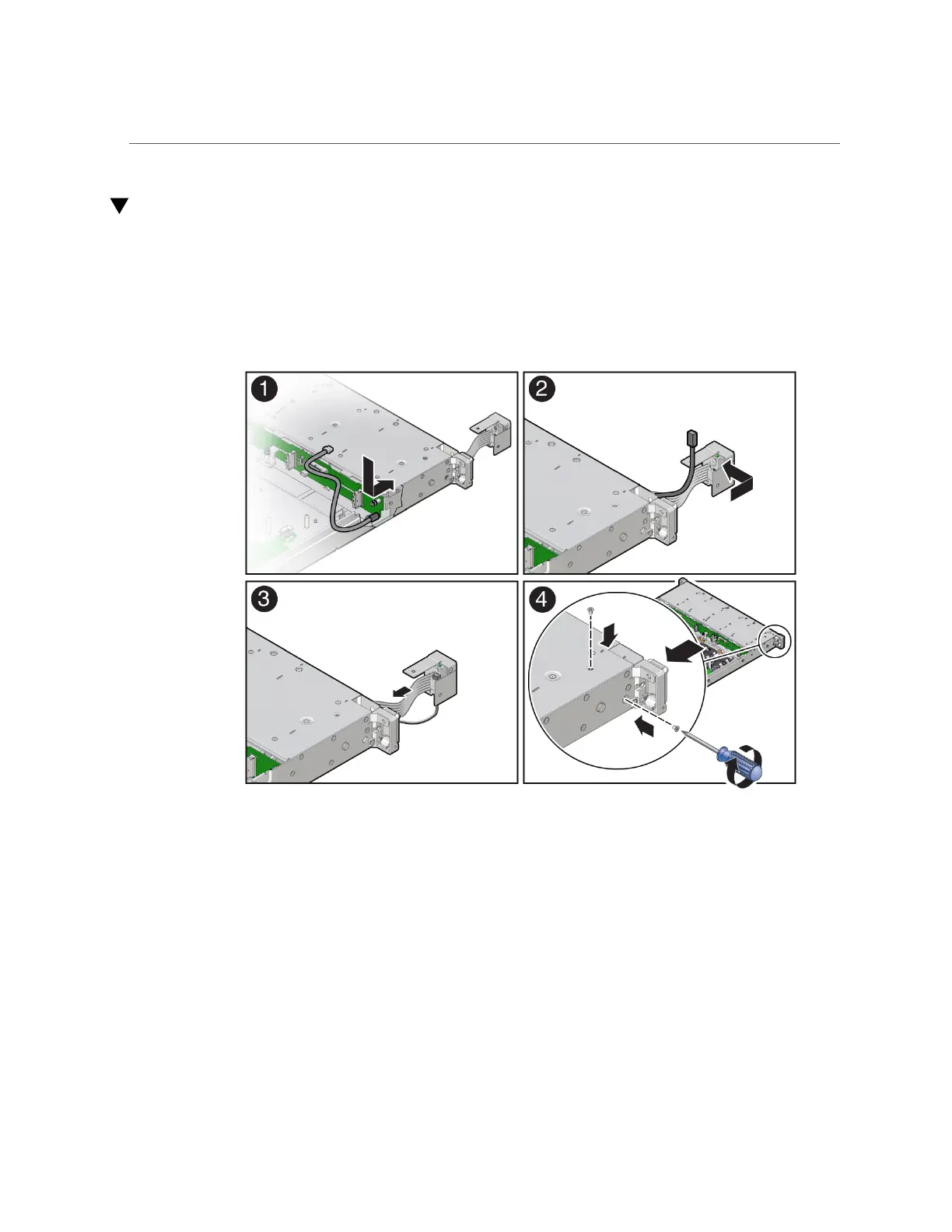

Install the temperature sensor by carefully inserting the sensor-end of the cable
through the rear opening directly under the left side of the disk backplane. Then
push/pull the sensor cable through the left-front chassis sidewall [1].
2.
Install the temperature sensor into the plastic housing by inserting the cable
through the slit in the housing. Then ensure that the temperature sensor is
properly seated into the housing [2, 3].
3.
Carefully insert the FIM assembly into the front panel of the server chassis [3].
4.
Install and tighten the two Phillips screws to secure the FIM assembly to the
server chassis [4].
