Oracle X7-2 Service Manual

Install an M.2 Flash SSD
5.
Repeat Step 2 through Step 4 to remove the second M.2 flash SSD from the
opposite side of the M.2 mezzanine.
Related Information
■
“Install an M.2 Flash SSD” on page 131
Install an M.2 Flash SSD
Note - The M.2 mezzanine contains two M.2 flash SSD sockets (labeled SSD0 and SSD1). If
you are installing a single M.2 flash SSD on to the mezzanine, install the M.2 flash SSD into
socket SSD0.
1.
Unpack the replacement M.2 flash SSD.
2.
Install the M.2 flash SSD.
a.

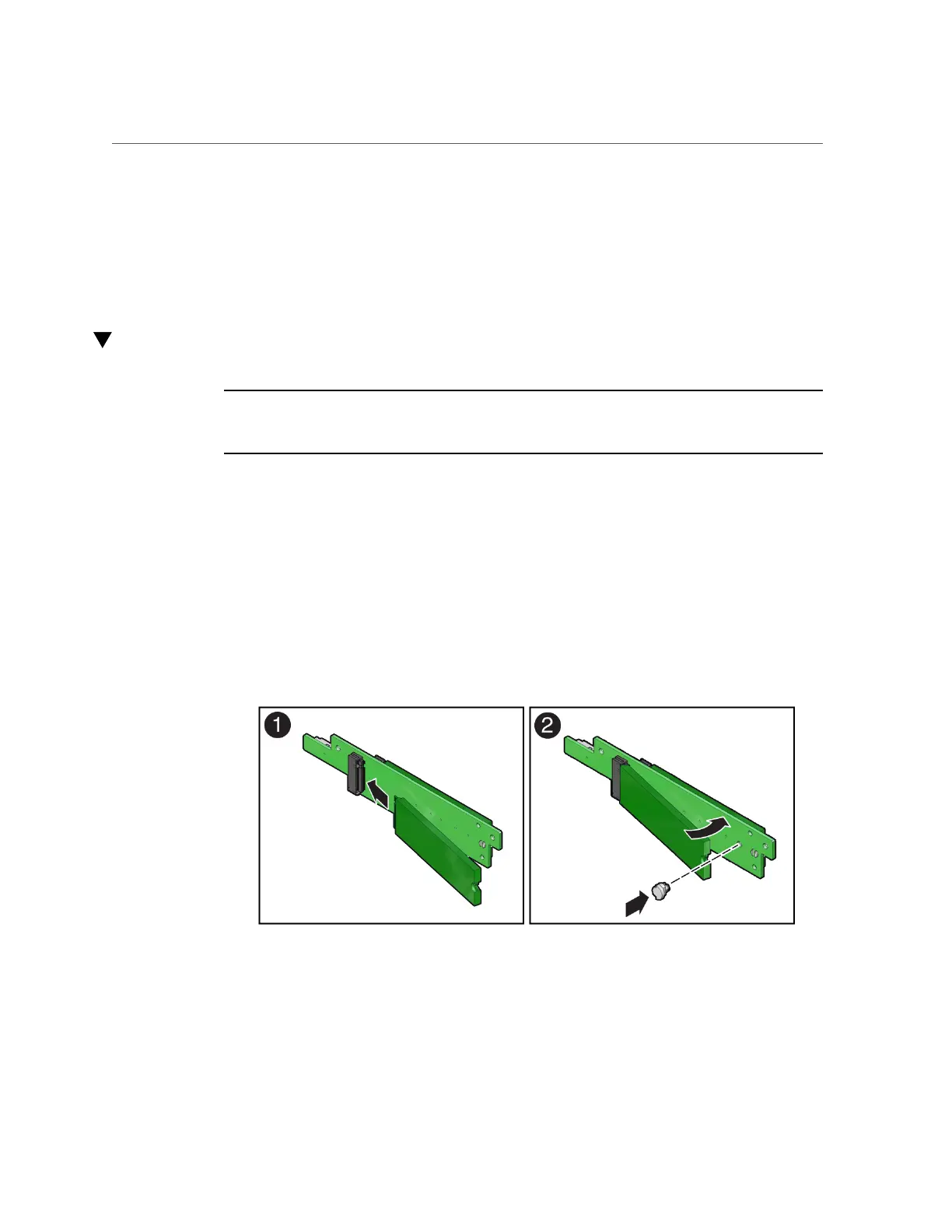

Align and then insert the plastic retainer clip into the slot on the M.2 flash
SSD.
b.
Hold the M.2 flash SSD so that the end of the card containing the plastic
retainer clip is approximately one-half to one inch above the M.2 mezzanine
and the other end is adjacent to the riser SSD socket [1].
c.
Gently slide the M.2 flash SSD forward and into the connector to engage the
flash SSD contacts with the M.2 mezzanine socket [2].
Servicing the Internal M.2 Flash SSDs (CRU) 131

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
