Install the NVMe Cable Assembly
Install the NVMe Cable Assembly
1.

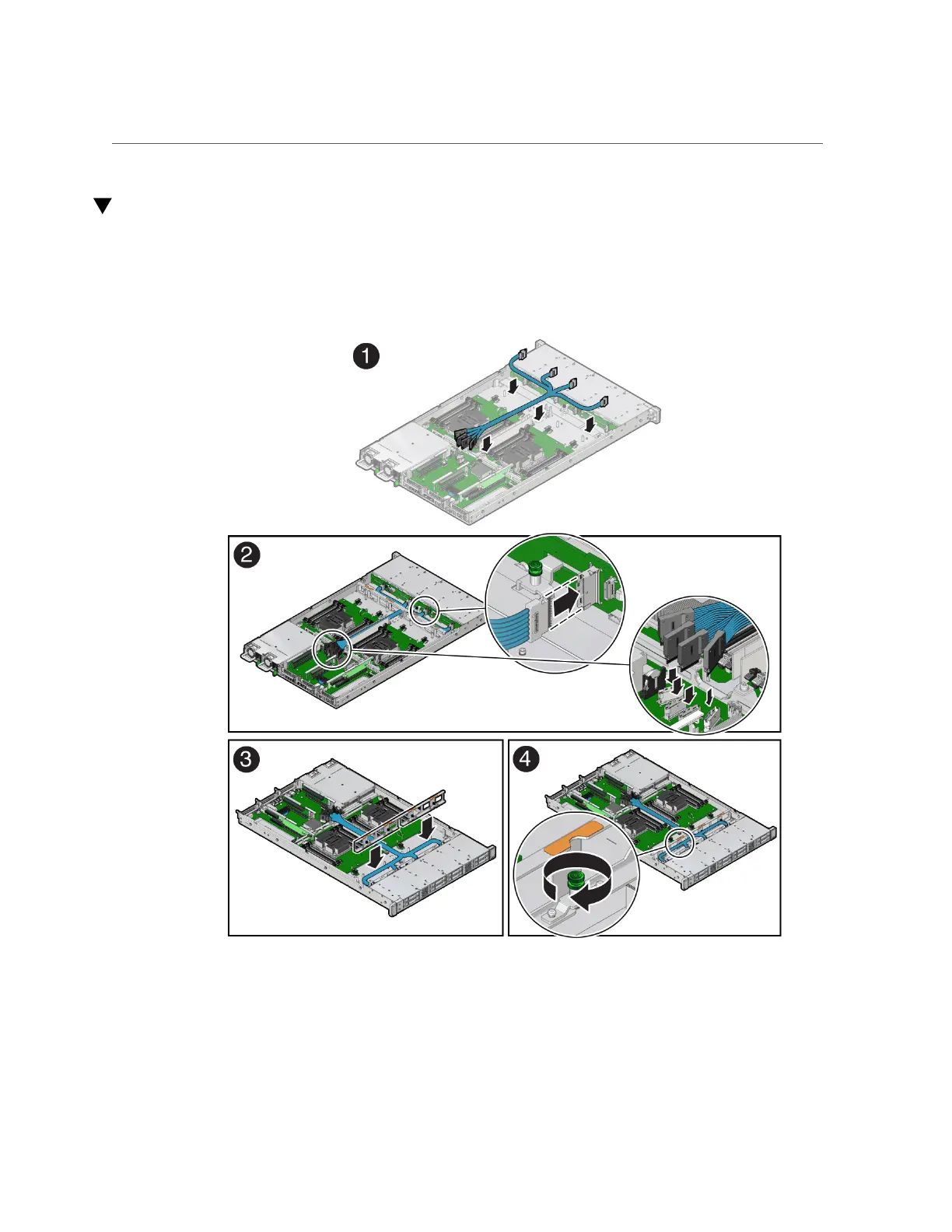

Carefully install the NVMe cables through the center cable trough [1].
2.
Connect the NVMe cables to the motherboard NVMe connectors [2].
Servicing the NVMe Cables 189
