Oracle X7-2 Service Manual

Install a PCIe Card in PCIe Slot 1 or 2
a.

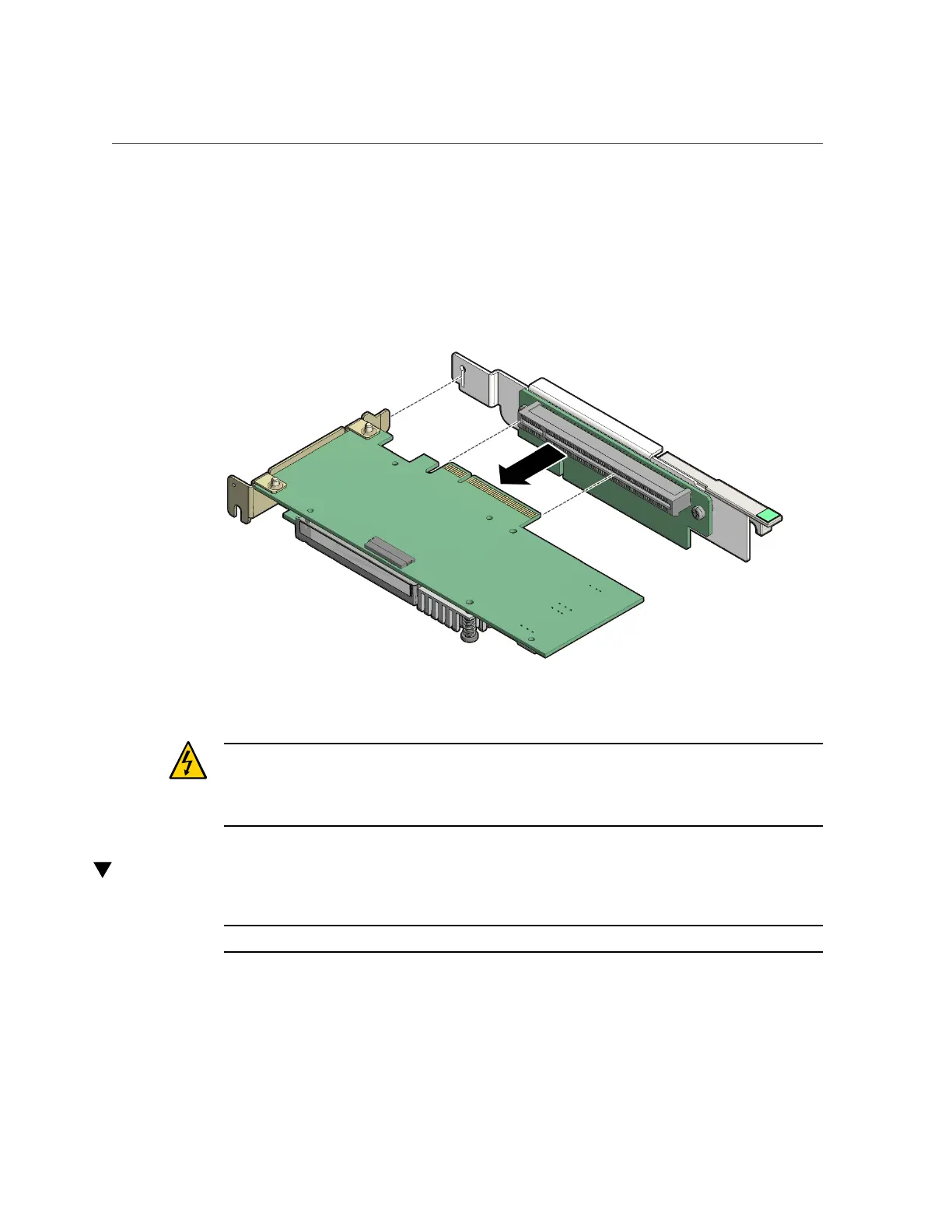

Hold the riser in one hand and use your other hand to carefully pull the PCIe
card connector out of the riser.
b.
Disconnect the rear bracket that is attached to the PCIe card from the rear of
the PCIe riser.
3.
Place the PCIe card on an antistatic mat.
Caution - Whenever you remove a PCIe card, you should replace it with another PCIe card
or a PCIe filler panel. Installing PCIe filler panels in vacant PCIe slots helps reduce the level
of electromagnetic interference (EMI) emitted by the server. See “Remove and Install Filler
Panels” on page 209.
Install a PCIe Card in PCIe Slot 1 or 2
Note - PCIe slot 1 is nonfunctional in single-processor systems.
1.
Retrieve the PCIe card and riser you want to install.
Servicing PCIe Cards (CRU) 123

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
