Oracle X7-2 Service Manual

Install the Battery
b.
Extend the server to the maintenance position.
See “Extend the Server to the Maintenance Position” on page 59.
c.
Attach an antistatic wrist strap to your wrist and then to a metal area on the
chassis.
See “Take Antistatic Measures” on page 61.
d.
Remove the server top cover.
See “Remove the Server Top Cover” on page 62.
2.

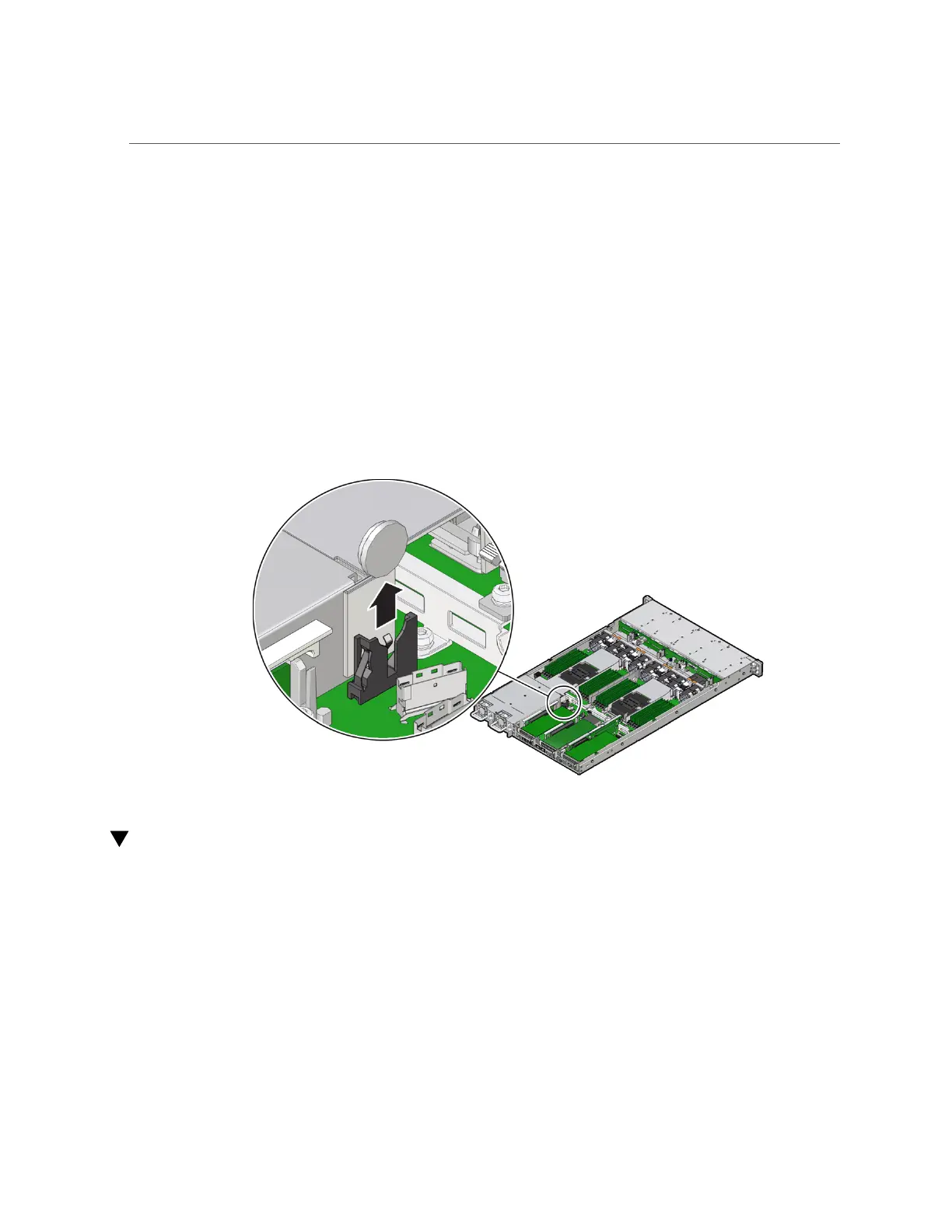

To dislodge the battery from its retainer, gently push the top edge of the battery
away from the retainer.
Install the Battery
1.
Unpack the replacement battery.
2.
Press the new battery into the battery retainer.
3.
Return the server to operation.
134 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
