Oracle X7-2 Service Manual

Network Management Port
Related Information
■
“Back Panel Components and Cable Connections” on page 18
■
“Disconnect Cables From the Server” on page 58
■
“Reconnect Data Cables and Power Cords” on page 214

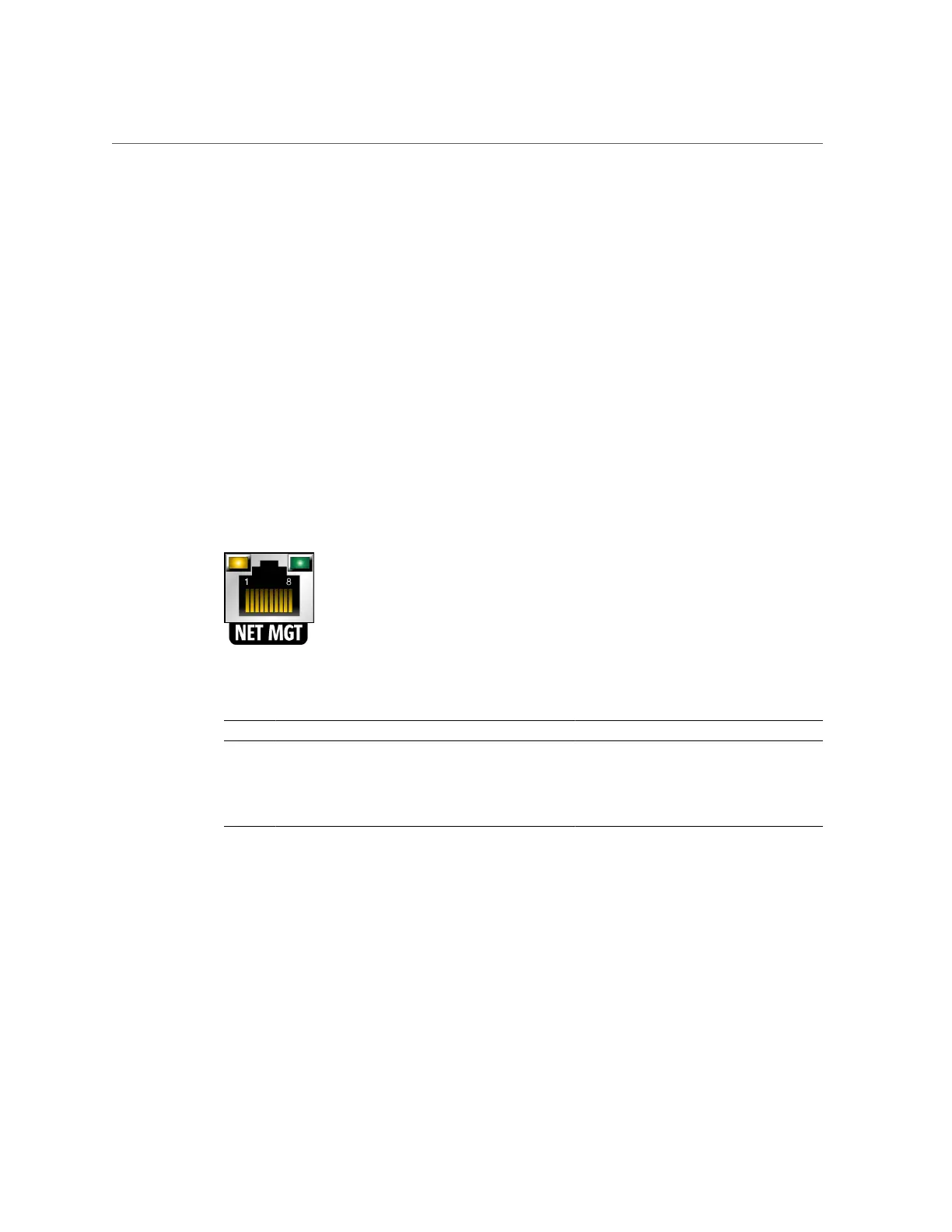

Network Management Port
The server has one 10/100/1000BASE-T Ethernet management domain interface, labeled NET
MGT. For information on configuring this port for managing the server with Oracle ILOM,
refer to the Oracle Integrated Lights Out Manager (ILOM) 4.0 Documentation Library at http:
//www.oracle.com/goto/ilom/docs.
TABLE 5
Network Management Port Signals
Pin Signal Description Pin Signal Description
1 Transmit/Receive Data 0 + 5 Transmit/Receive Data 2 –
2 Transmit/Receive Data 0 – 6 Transmit/Receive Data 1 –
3 Transmit/Receive Data 1 + 7 Transmit/Receive Data 3 +
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
Related Information
■
“Back Panel Components and Cable Connections” on page 18
■
“Disconnect Cables From the Server” on page 58
■
“Reconnect Data Cables and Power Cords” on page 214
Identifying the Server Ports 219

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
