Oracle X7-2 Service Manual

Install the Internal HBA Card and HBA Super Capacitor
Note - (Optional) Disconnect the data cable from the disk backplane to allow easy access to the
super capacitor.
6.

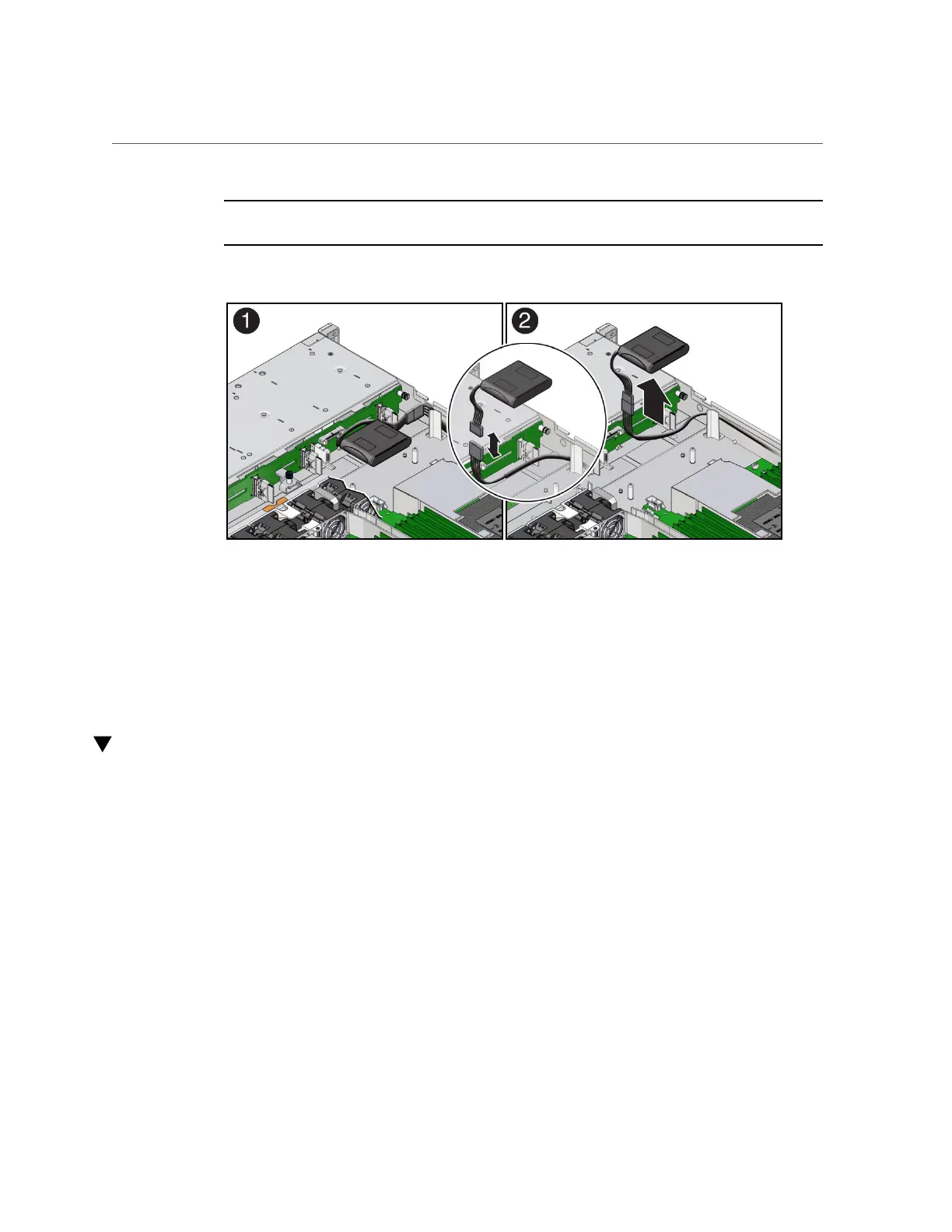

Disconnect the super capacitor cable from the super capacitor and place the
super capacitor on an antistatic mat [2].
7.
Carefully remove the SAS cables and super capacitor cable from the server by
lifting them from the left-side cable trough.
See “Remove the Internal HBA Cables” on page 179.
Install the Internal HBA Card and HBA Super Capacitor
1.
Unpack the replacement host bus adapter (HBA) card, the SAS cables, super
capacitor, and the super capacitor cable, and retrieve the PCIe riser for slot 3.
Servicing the Internal HBA Card and HBA Super Capacitor (FRU) 173

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
