Remove the Internal HBA Card and HBA Super Capacitor

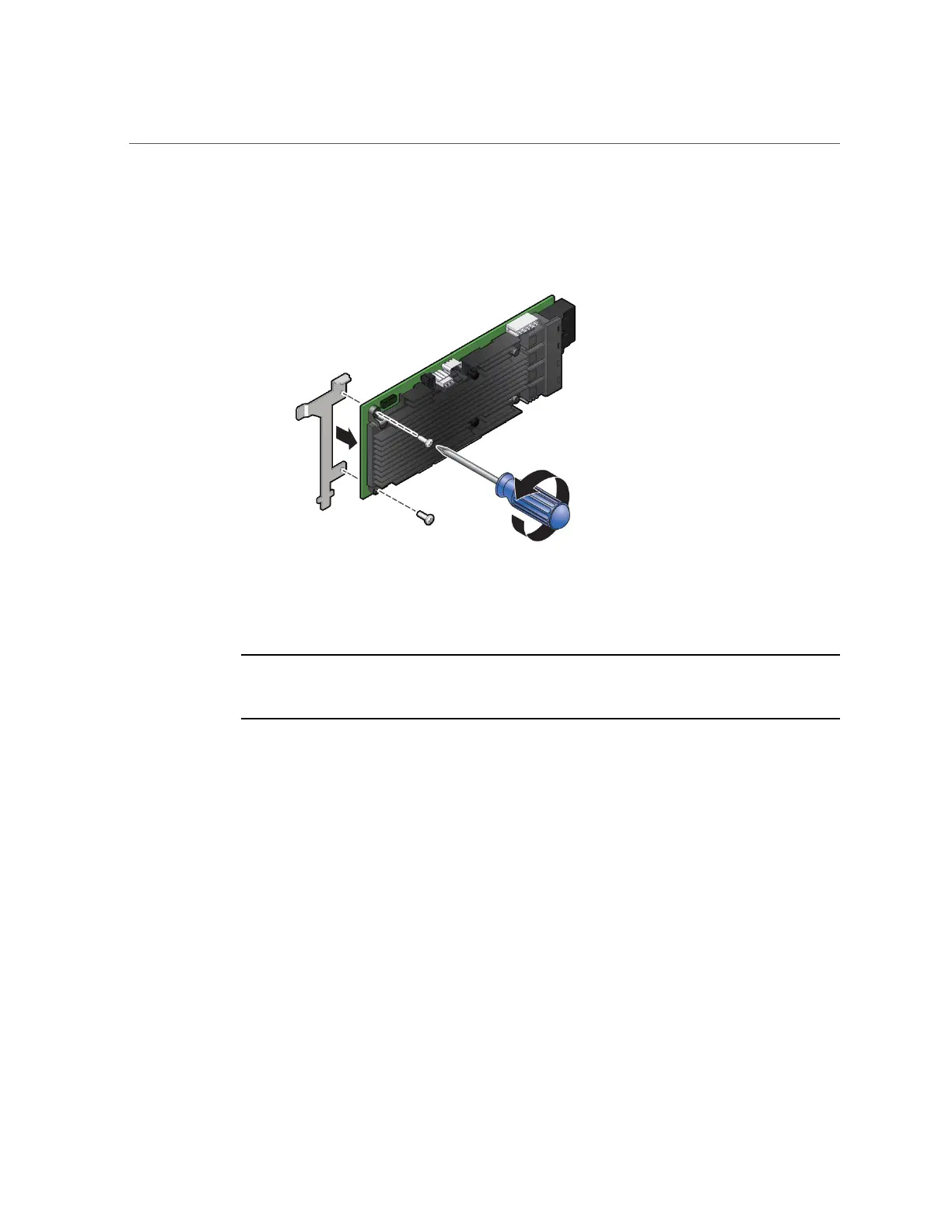

You will need to install the special fitted bracket on the replacement HBA card. Set aside the
bracket and screws until you are ready to install the replacement HBA card.
5.
Lift the super capacitor up to release the reclosable fasteners that secure it to
the server's chassis [1, 2].
Note - If you are removing and replacing only the internal HBA card, you do not need to
remove the HBA super capacitor. You can disconnect the HBA super capacitor cable from the
internal HBA card and then remove the internal HBA card from the system.
172 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
