Oracle X7-2 Service Manual

Remove the Internal HBA Card and HBA Super Capacitor
3.

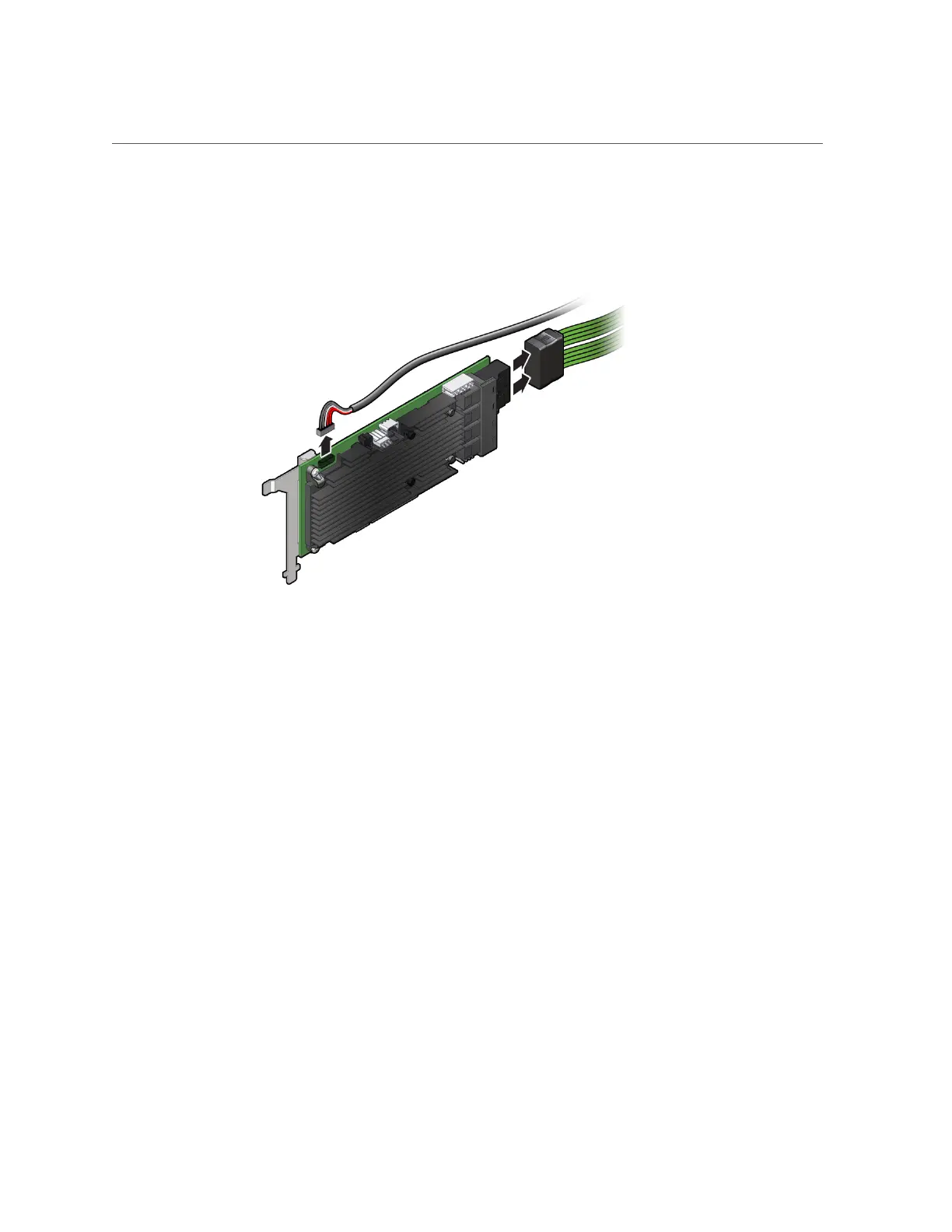

Disconnect the SAS cables and the super capacitor cable from the internal HBA
card and place the card on an antistatic mat.
4.
If you are replacing the internal HBA card, use a No. 2 Philips screwdriver to
remove the special fitted bracket from the HBA card.
Servicing the Internal HBA Card and HBA Super Capacitor (FRU) 171

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
