Oracle X7-2 Service Manual

Install a Fan Module
Install a Fan Module
1.
Remove the replacement fan module from its packaging and place it on an
antistatic mat.
2.

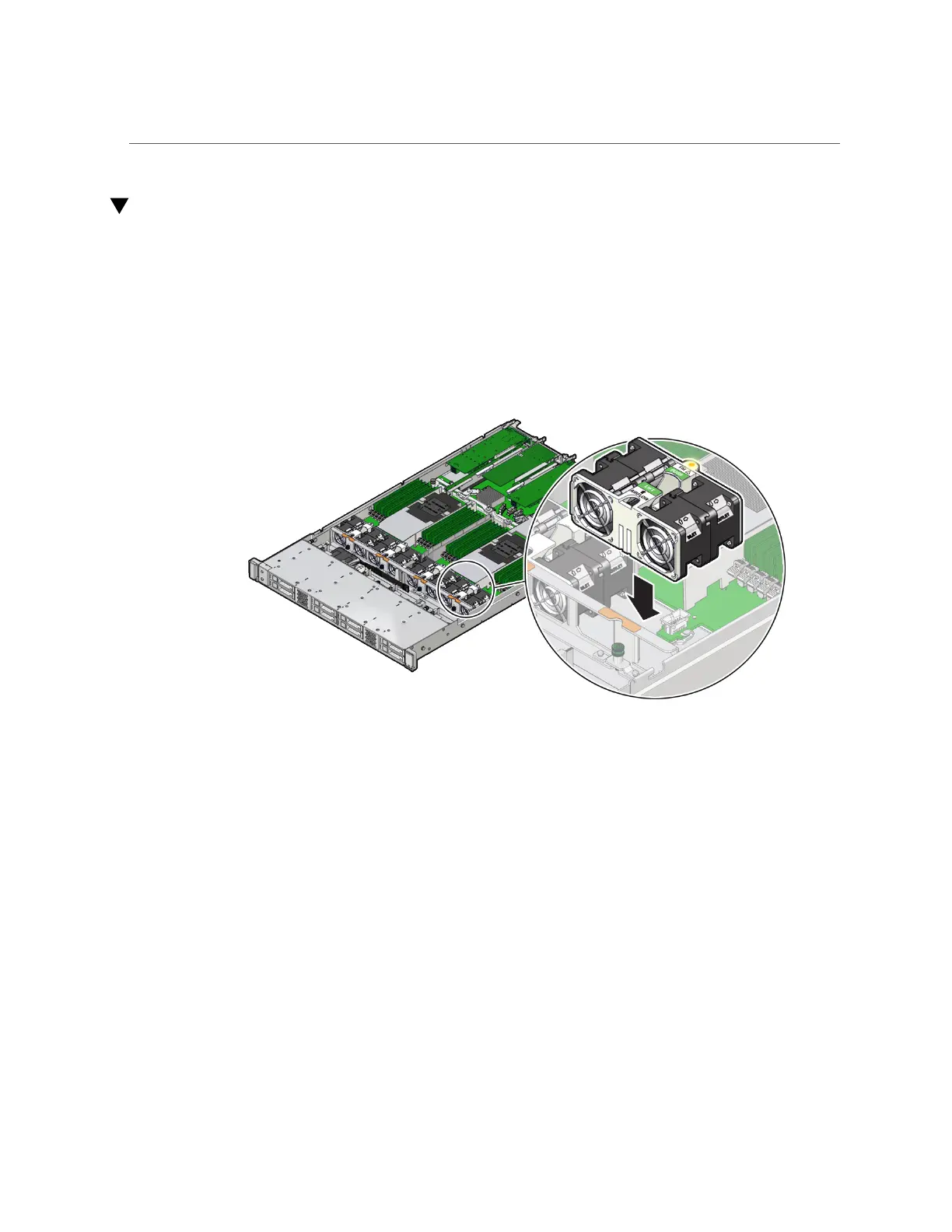

With the server top cover removed, position the replacement fan module into the
server.
The fan modules are keyed to ensure that they are installed in the correct orientation.
3.
Press down on the fan module and apply firm pressure to fully seat the fan
module.
4.
Verify that the fan module status indicator (LED) that aligns with the replaced fan
module is extinguished.
5.
Install the server top cover.
See “Install the Server Top Cover” on page 210.
6.
Verify that the Top Fan Fault LED on the front of the server and the Fault-Service
Required LEDs on the front and back of the server are extinguished.
See “Troubleshooting Using the Server Front and Back Panel Status Indicators” on page 28 for
more information about identifying and interpreting system indicators.
84 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
