Oracle X7-2 Service Manual

Install an M.2 Mezzanine
Install an M.2 Mezzanine
1.
Unpack the replacement M.2 mezzanine and place it on an antistatic mat.
If required, ensure that you have installed the M.2 flash SSDs on to the M.2 mezzanine before
installing the mezzanine on to the PCIe riser. See “Install an M.2 Flash SSD” on page 131.
2.

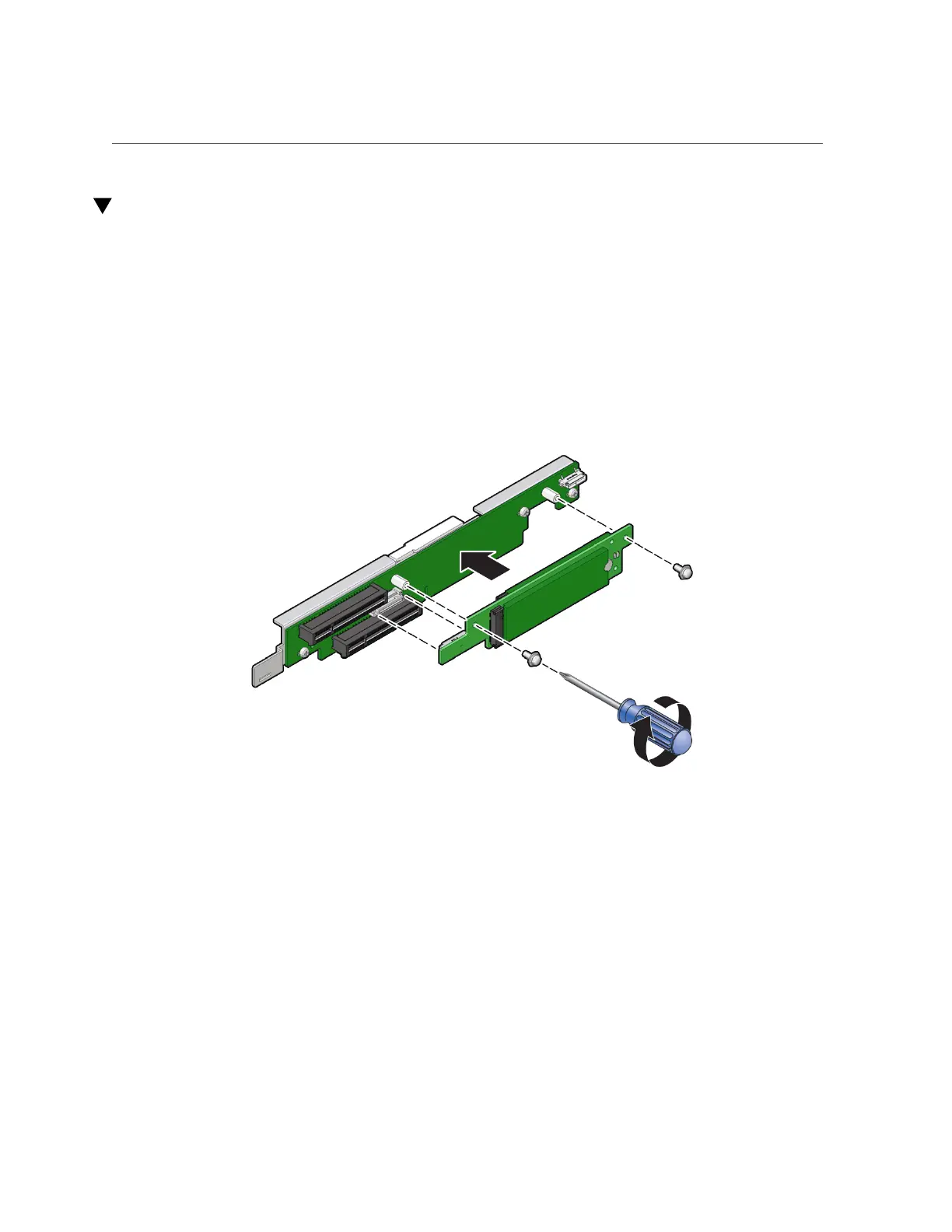

Align the M.2 mezzanine with the connector and screw holes on the PCIe riser
and then insert the mezzanine into the connector.
3.
Using a T10 Torx screwdriver, install the screws that secure the M.2 mezzanine
to the PCIe riser.
4.
Install the internal HBA card in PCIe slot 4 and any PCIe card in PCIe slot 3.
See “Install the Internal HBA Card and HBA Super Capacitor” on page 173 and “Install a
PCIe Card in PCIe Slot 3” on page 125.
5.
Install the PCIe riser.
See “Install the PCIe Riser Into PCIe Slots 3 and 4” on page 118.
Servicing the Internal M.2 Flash SSDs (CRU) 129

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
