Remove an M.2 Mezzanine
2.
Remove any PCIe card in PCIe slot 3 and the internal HBA in PCIe slot 4.
See “Remove a PCIe Card From PCIe Slot 3” on page 124 and “Remove the Internal HBA
Card and HBA Super Capacitor” on page 170.
Note - You do not need to remove the data cables from the PCIe cards when servicing the M.2
mezzanine. Extract the PCIe cards (with cables attached) from the PCIe slots and set them
aside.
3.

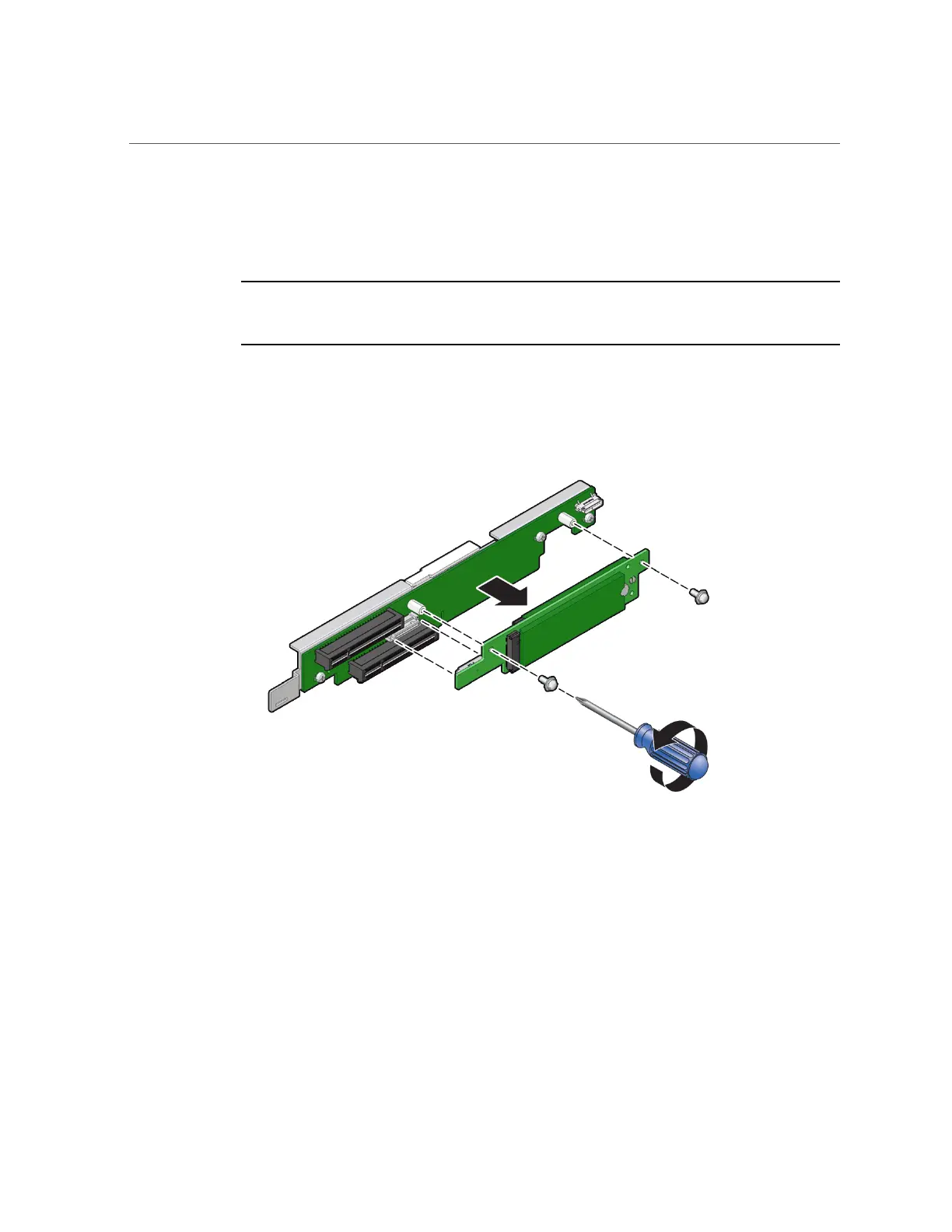

Using a T10 Torx screwdriver, remove the screws that secure the M.2 mezzanine
to the PCIe riser.
4.
Lift and remove the M.2 mezzanine from the PCIe riser connector.
Place the M.2 mezzanine on an antistatic mat. If required, perform the procedures for removing
the M.2 flash SSDs from the mezzanine. See “Remove an M.2 Flash SSD” on page 130.
Related Information
“Install an M.2 Mezzanine” on page 129
128 Oracle Server X7-2 Service Manual • October 2017
