Oracle X7-2 Service Manual

Install a DIMM
b.

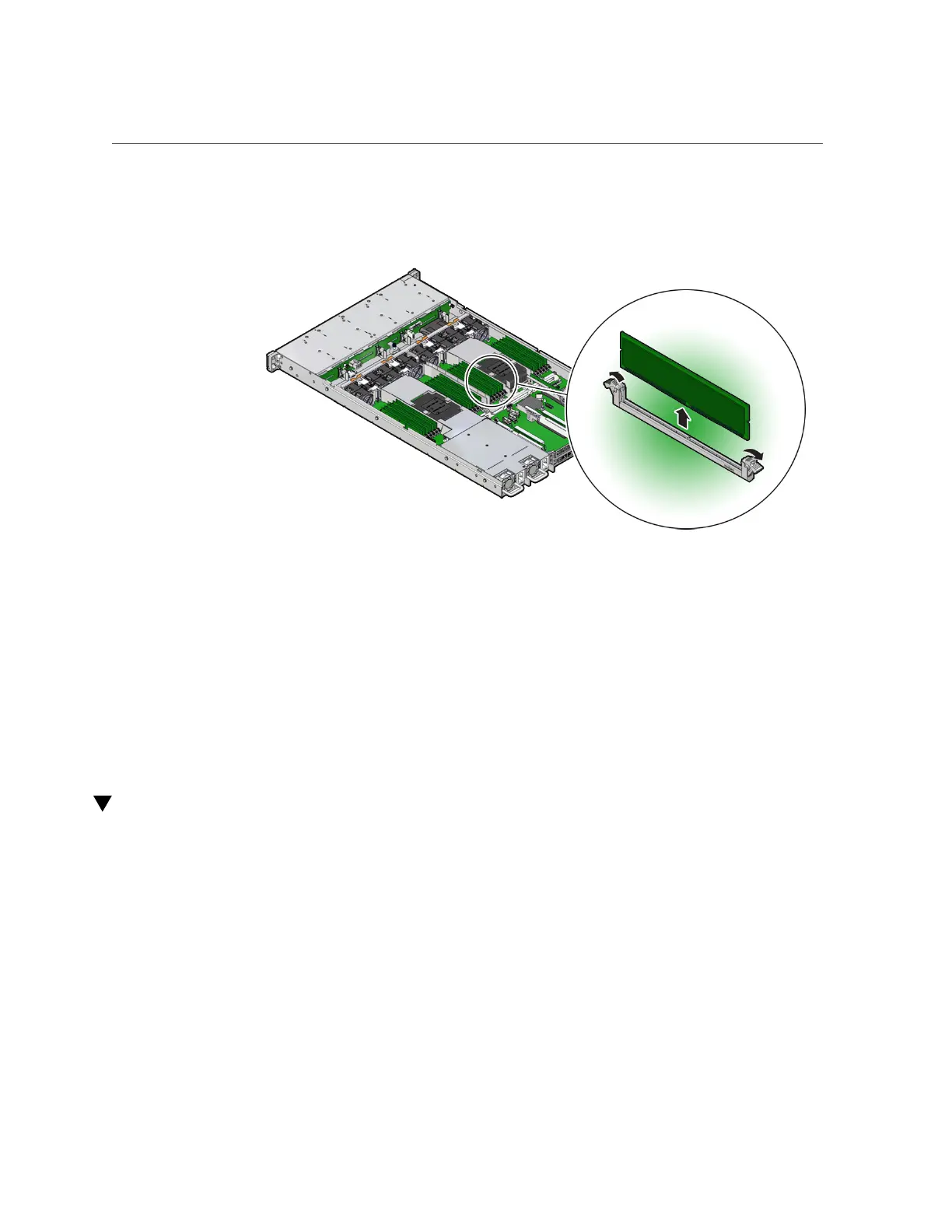

Carefully lift the DIMM straight up to remove it from the socket.
4.
Replace each faulty DIMM with either another DIMM of the same rank size (quad-
rank or dual-rank) or leave the socket empty.
For DIMM replacement instructions, see “Install a DIMM” on page 107.
Related Information
■
“DIMM and Processor Physical Layout” on page 98
■
“DIMM Population Rules” on page 99
■
“Populating DIMMs for Optimal System Performance” on page 100
■
“Install a DIMM” on page 107
Install a DIMM
1.
Unpack the replacement DDR4 DIMM and place it on an antistatic mat.
2.
Ensure that the replacement DDR4 DIMM matches the size of the DIMM it is
replacing.
You must not replace a dual-rank DIMM with a quad-rank DIMM and vice versa. If you
violate this rule, the performance of the server might be adversely affected. For DIMM socket
population rules, see “DIMM Population Rules” on page 99.
Servicing the DIMMs (CRU) 107

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
