Oracle X7-2 - Remove the Internal HBA Card and HBA Super Capacitor

Remove the Internal HBA Card and HBA Super Capacitor
■
“Take Antistatic Measures” on page 61
■
“Extend the Server to the Maintenance Position” on page 59
Remove the Internal HBA Card and HBA Super Capacitor
1.
Remove the PCIe riser from slots 3 and 4.
See “Remove the PCIe Riser From PCIe Slots 3 and 4” on page 116.
2.

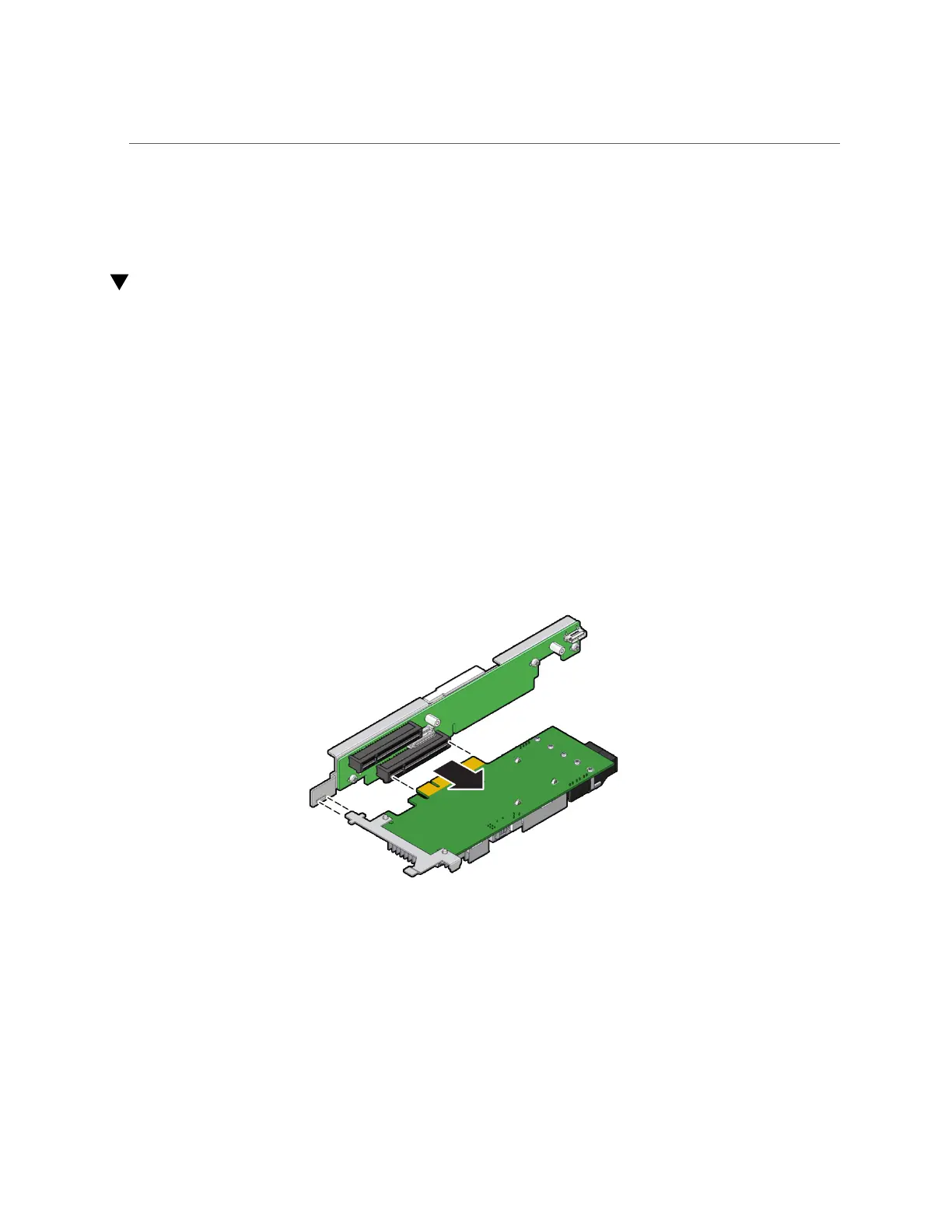

Remove the internal host bus adapter card from the riser.
a.
Hold the riser in one hand and use your other hand to carefully remove the
card from slot 4 of the riser.
b.
Disconnect the rear bracket attached to the PCIe card from the rear of the
PCIe riser.
170 Oracle Server X7-2 Service Manual • October 2017
