Oracle X7-2 Service Manual

Install a DIMM
3.

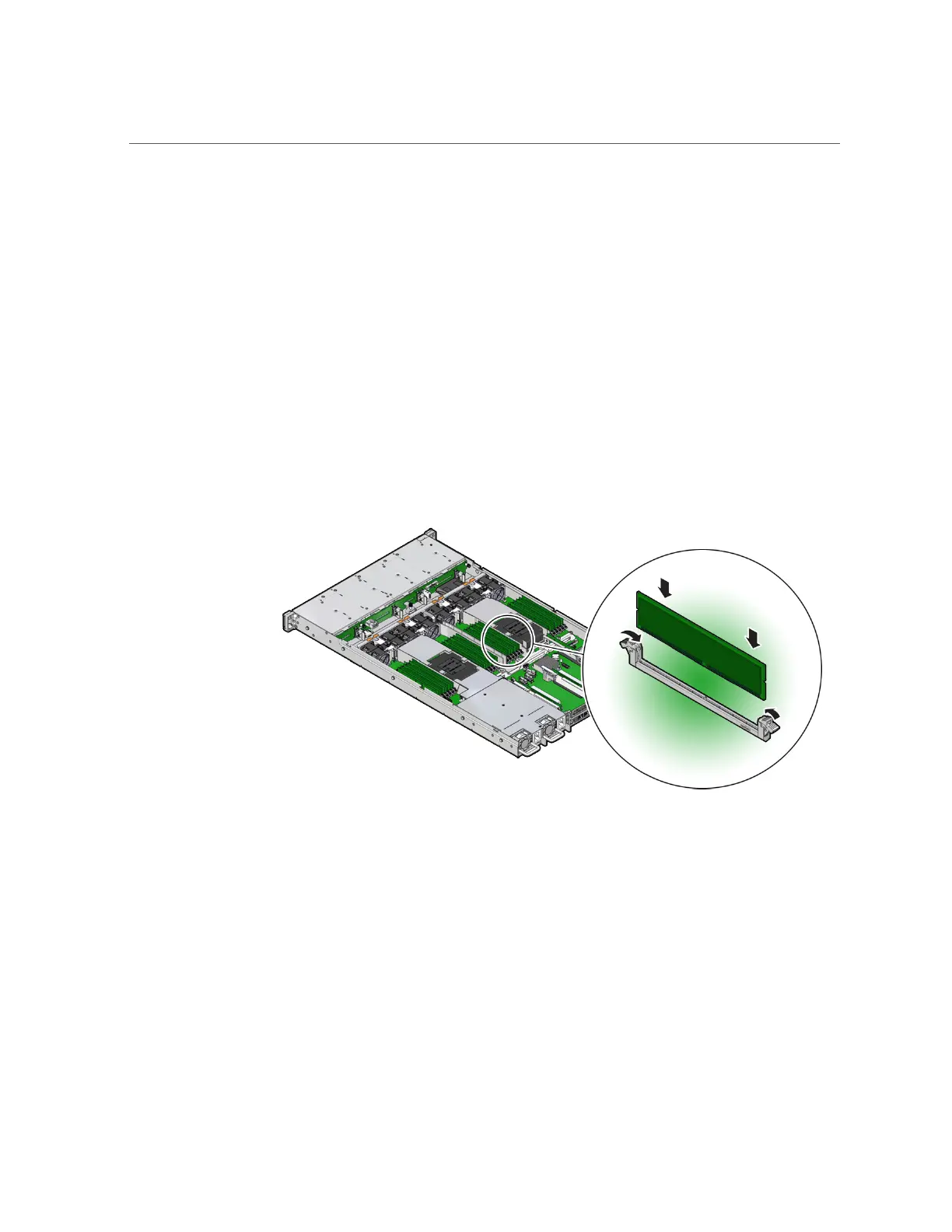

Install a DIMM.
a.
Ensure that the ejector tabs are in the open position.
b.
Align the notch in the replacement DIMM with the connector key in the
connector socket.
The notch ensures that the DIMM is oriented correctly.
c.
Push the DDR4 DIMM into the connector socket until the ejector tabs lock
the DIMM in place.
If the DIMM does not easily seat into the connector socket, verify that the notch in the
DIMM is aligned with the connector key in the connector socket. If the notch is not
aligned, damage to the DIMM might occur.
4.
Repeat Step 3 until all replacement DDR4 DIMMs are installed.
5.
Return the server to operation.
a.
Install the server top cover.
See “Install the Server Top Cover” on page 210.
b.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 212.
108 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
