Install the Temperature Sensor
5.

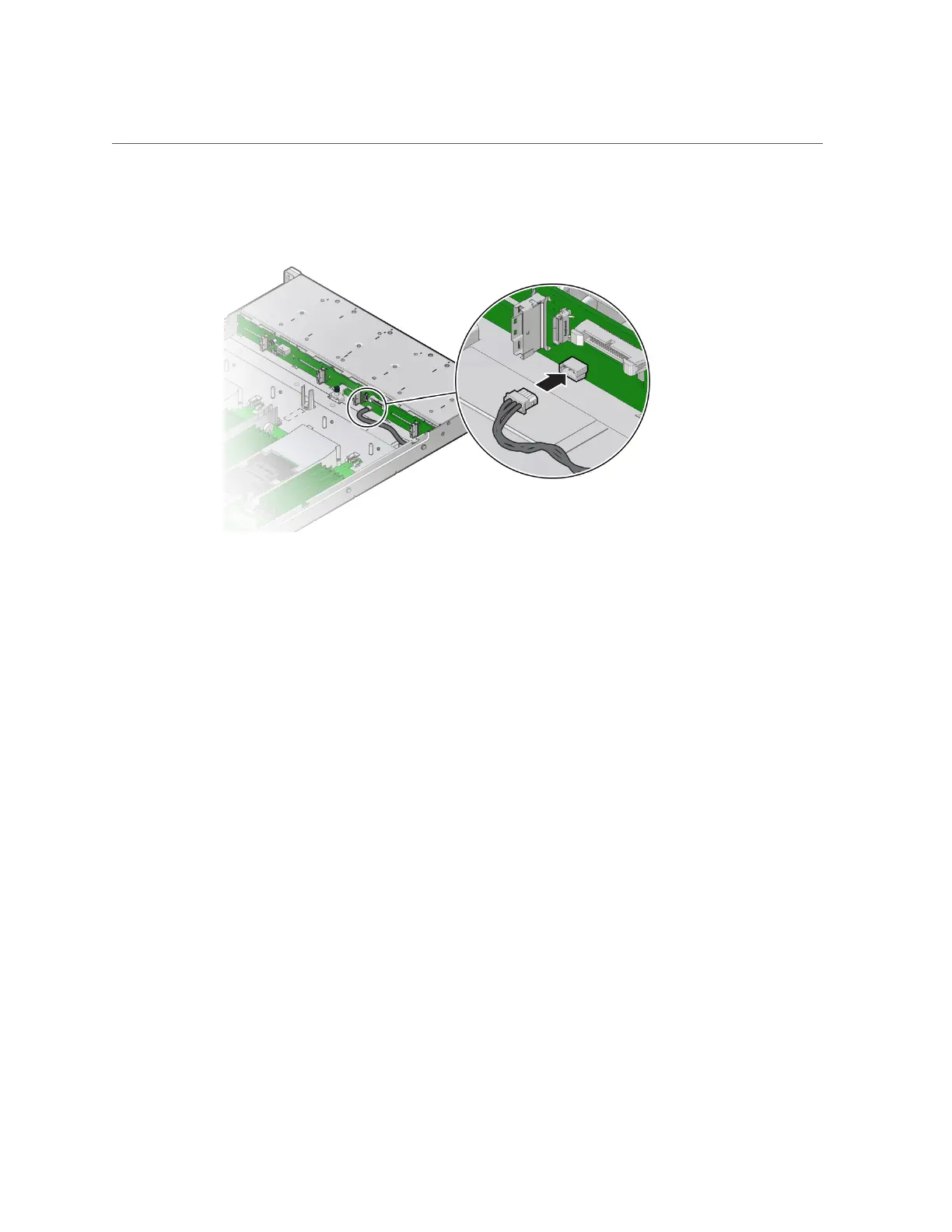

Reconnect the temperature sensor cable to the disk backplane.
6.
Return the server to operation.
a.
Install the server top cover.
See “Install the Server Top Cover” on page 210.
b.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 212.
c.
Reconnect the power cords to the power supplies, and power on the server.
See “Reconnect Data Cables and Power Cords” on page 214 and “Power On the
Server” on page 214. Verify that the power supply AC OK LED is lit.
Related Information
“Remove the Temperature Sensor” on page 163
Servicing the Temperature Sensor (FRU) 167
