Oracle X7-2 Service Manual

Install a PCIe Card in PCIe Slot 3
3.

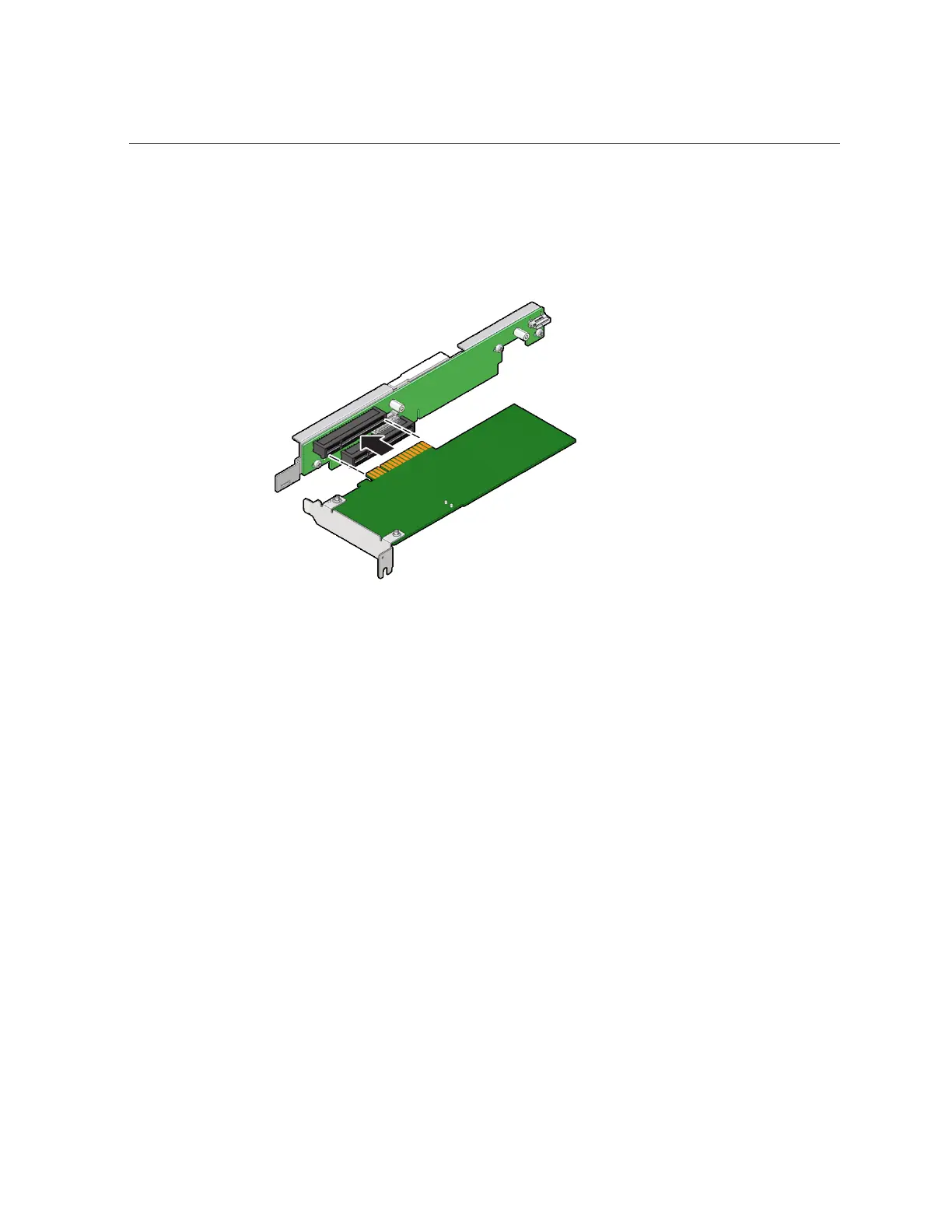

Hold the riser in one hand and use your other hand to carefully insert the PCIe
card connector into the riser.
4.
Install the PCIe riser.
See “Install the PCIe Riser Into PCIe Slots 3 and 4” on page 118.
126 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
