Oracle X7-2 Service Manual

Install the Internal HBA Card and HBA Super Capacitor
7.

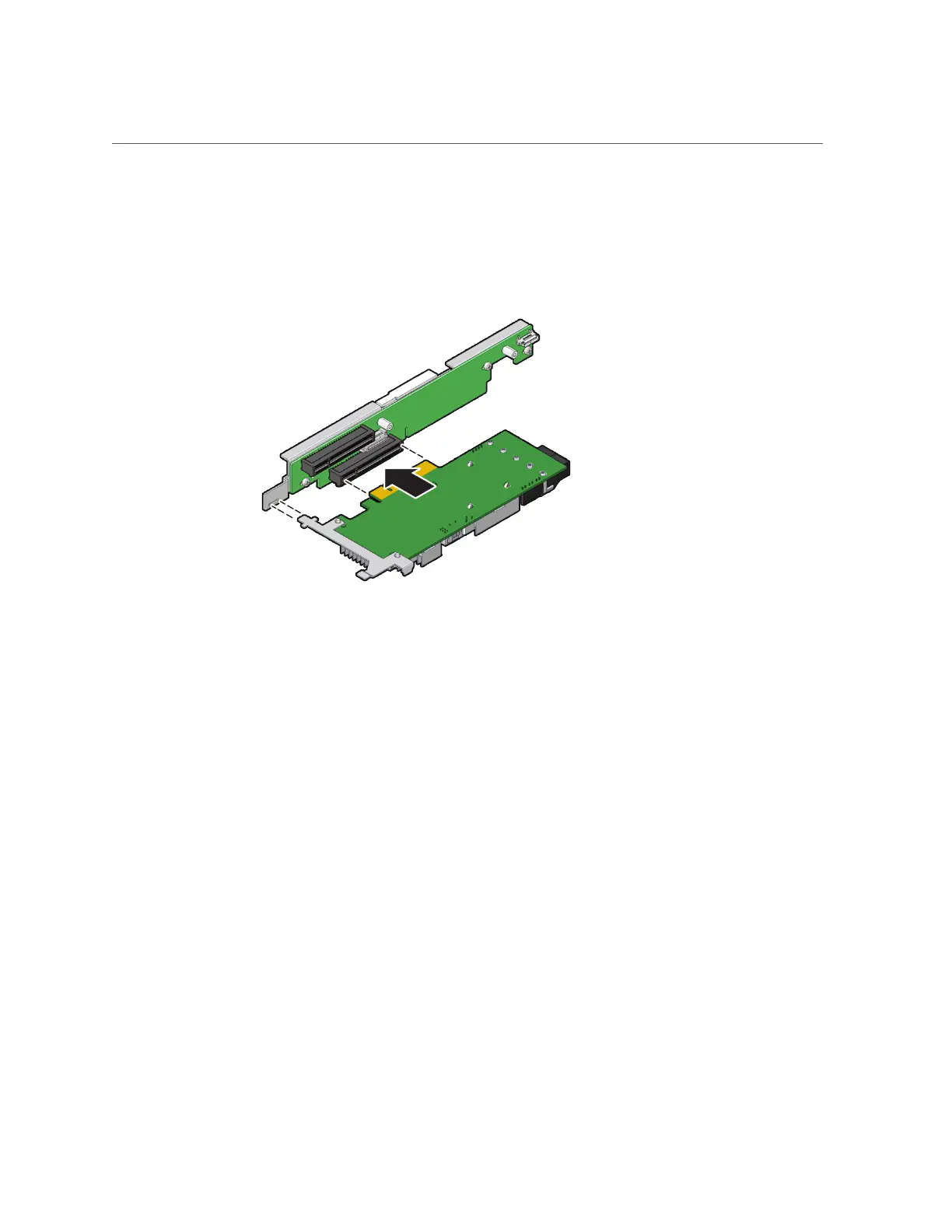

Insert the internal HBA card connector into the bottom connector on the riser for
PCIe slot 3 and 4. While inserting the HBA, ensure that rear bracket on the HBA
card fits into the connector slot on the PCIe riser.
8.
Install the PCIe riser.
See “Install the PCIe Riser Into PCIe Slots 3 and 4” on page 118.
Servicing the Internal HBA Card and HBA Super Capacitor (FRU) 177

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
