Oracle X7-2 Service Manual

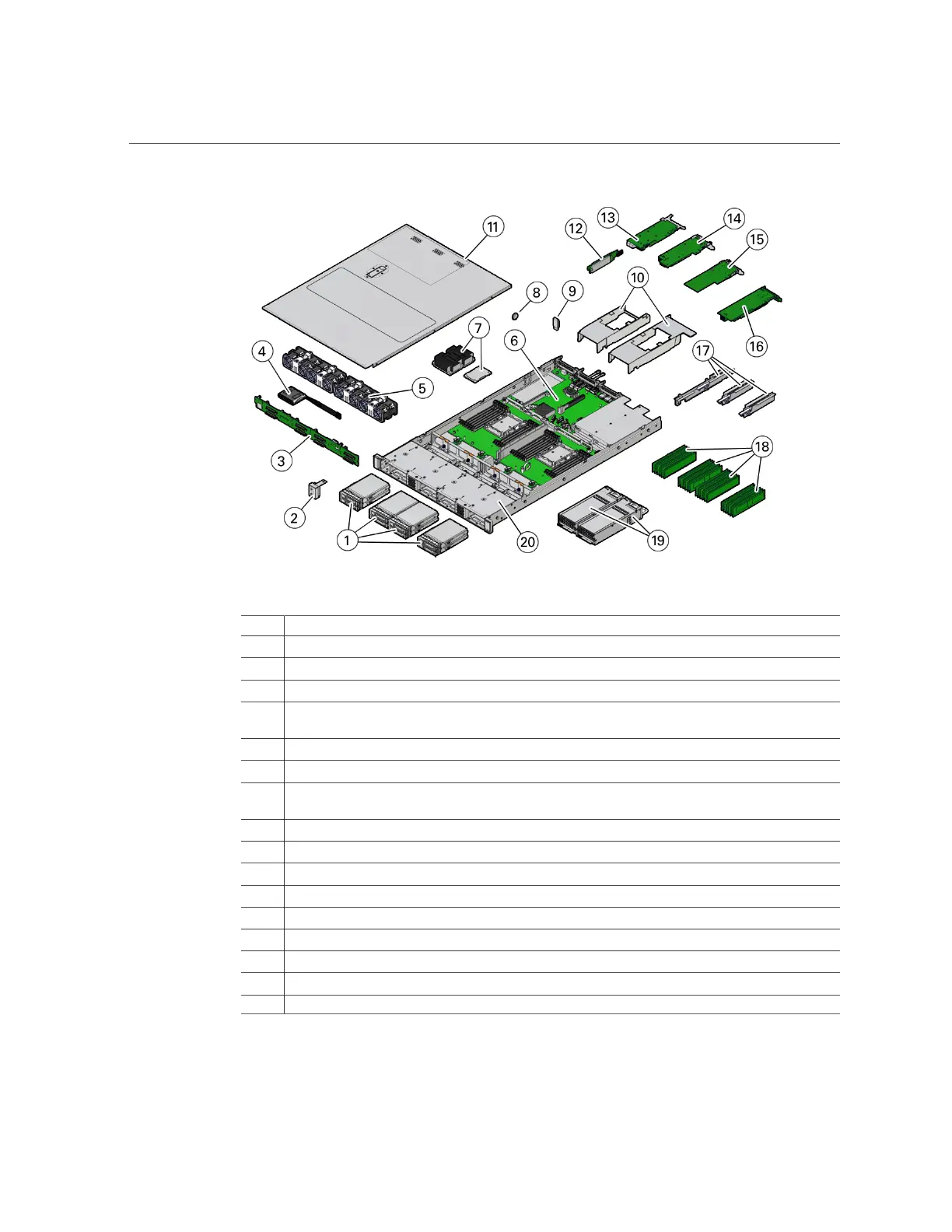

About System Components
Callout Description
1 Eight storage drives
2 Front LED indicator module
3 Disk backplane
4 Super capacitor (Energy storage module for the Oracle Storage 12 Gb SAS PCIe RAID HBA, Internal card
in PCIe slot 4.)
5 Fan modules
6 Motherboard
7 Processors and heatsinks (Single-processor systems contain only a single processor in socket P0; socket P1
contains a cover to protect processor socket pins.)
8 Battery
9 (Optional) Internal USB drive
10 Air baffle
11 Top cover
12 Internal M.2 flash SSDs
13 (Optional) PCIe card in slot 3
14 Oracle Storage 12 Gb/s SAS PCIe RAID HBA card in PCIe slot 4
15 (Optional) PCIe card in slot 2
16 (Optional) PCIe card in slot 1
20 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
