Oracle X7-2 Service Manual

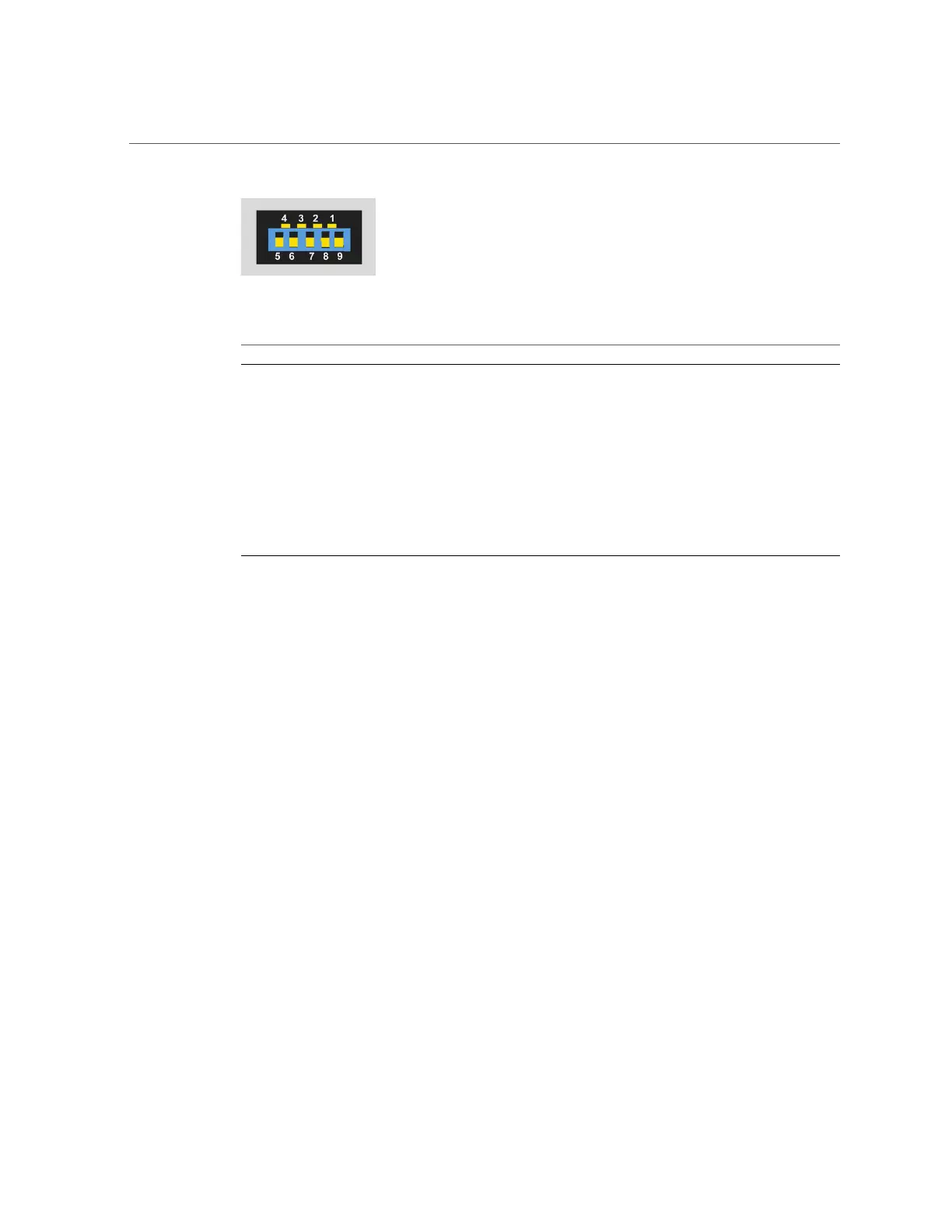

USB Ports
TABLE 10
USB Port Signals
Pin Signal Description
1 +5 V
2 USB 2.0 DAT-
3 USB 2.0 DAT+
4 Ground
5 USB 3.0 RX-
6 USB 3.0 RX+
7 Ground
8 USB 3.0 TX-
9 USB 3.0 TX+
Related Information
■
“Back Panel Components and Cable Connections” on page 18
■
“Disconnect Cables From the Server” on page 58
■
“Reconnect Data Cables and Power Cords” on page 214
222 Oracle Server X7-2 Service Manual • October 2017

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
