Oracle X7-2 Service Manual

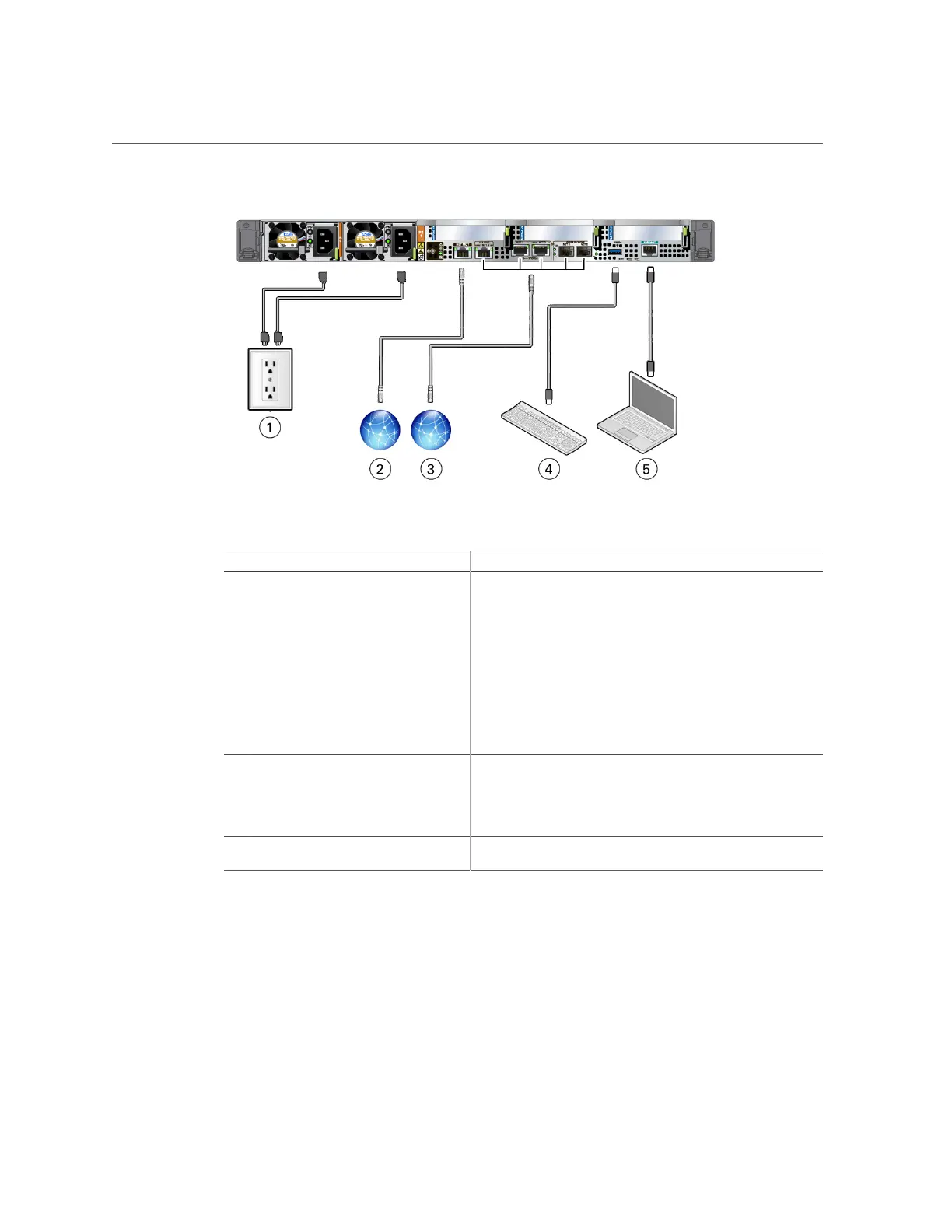

Attach Devices to the Server
No. Cable Port or Expansion Slot Description
1 Power supply 0 input power
Power supply 1 input power
The server has two power supply connectors, one for each power
supply.
Do not attach power cables to the power supplies until you finish
connecting the data cables to the server. The server goes into
Standby power mode, and the Oracle ILOM service processor
initializes when the AC power cables are connected to the power
source. System messages might be lost after 60 seconds if the server
is not connected to a terminal, PC, or workstation.
Note - Oracle ILOM signals a fault on any installed power supply
that is not connected to an AC power source, since it might indicate
a loss of redundancy.
2 Network management port (NET MGT) The service processor NET MGT port is the optional connection
to the Oracle ILOM service processor. The NET MGT port is
configured by default to use Dynamic Host Configuration Protocol
(DHCP). The service processor NET MGT port uses an RJ-45 cable
for a 10/100/1000BASE-T connection.
3 Ethernet ports: The five Gigabit Ethernet (GbE) ports enable you to connect the
system to the network.
Troubleshooting and Diagnostics 41

Oracle X7-2 Specifications

General

Processor	Intel Xeon Scalable processors
Number of Processors	1 or 2
Memory	Up to 1.5 TB DDR4
Memory Slots	24 DIMM slots
Form Factor	2U Rackmount
Storage Bays	8 x 2.5-inch
CPU Socket	Socket P (LGA 3647)
Power Supply	Redundant hot-swappable power supplies
