Setting up Compax3
192-120100 N16 C3I10T10 - December 2010
121
For the operating modes SINGLE, NORMAL and AUTO, the following XDIV
time settings are possible:
XDIV Mode Scanning time Samples DIV/TOTAL Measuring time
0.5ms 1 125us 4/40 5ms
1.0ms 2 125µs 8/80 10ms
2.0ms 3 125µs 16/160 20ms
5.0ms 4 125µs 40/400 50ms
10.0ms 5 125µs 80/800 100ms
20.0ms 6 250µs 80/800 200ms
50.0ms 7 625µs 80/800 500ms
100.0ms 8 1.25ms 80/800 1s
200.0ms 9 2.50ms 80/800 2s
500.0ms 10 6.25ms 80/800 5s
1s 11 12.50s 80/800 10s
2s 12 25.00ms 80/800 20s
5s 13 62.50ms 80/800 50s
10s 14 125.00ms 80/800 100s
For the operating ROLL, the following XDIV time settings are possible:
XDIV Mode Scanning time Samples DIV/TOTAL
2 ms 54 125us 200/2000
2ms 54 125µs 200/2000
4ms 55 125µs 200/2000
10ms 56 125µs 200/2000
20ms 57
125µs 200/2000
40ms 58 125µs 200/2000
100ms 59 250µs 200/2000
200ms 60 625µs 200/2000
Changing the time basis is also permitted during an OSCI measuring sequence.
This means, however, that the current measurement is interrupted and started
again with the changed settings.

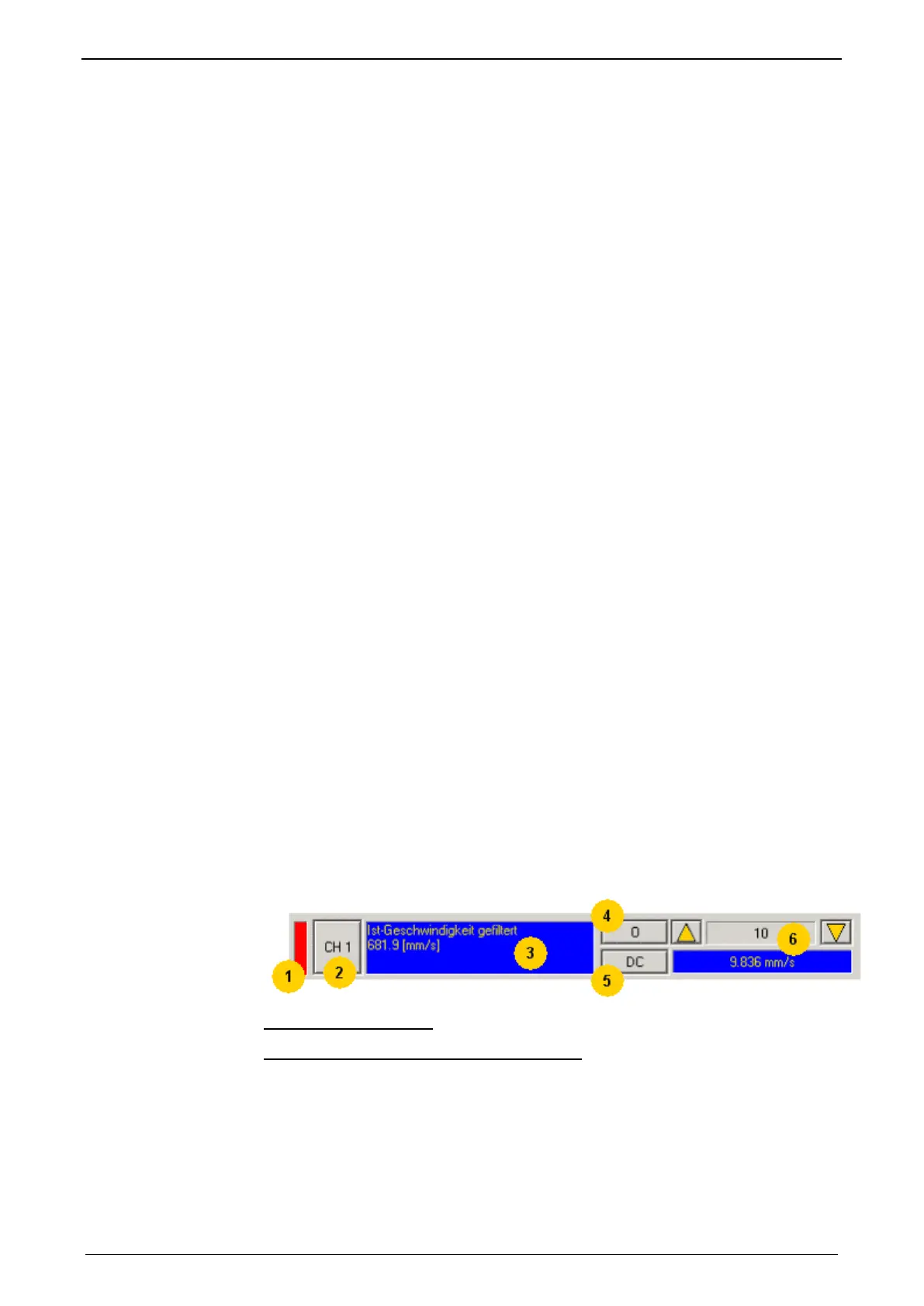

Settings for channels 1..4
1: Select channel color
2: Open menu for channel-specific settings
