3.64
ENGINE / COOLING SYSTEM
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

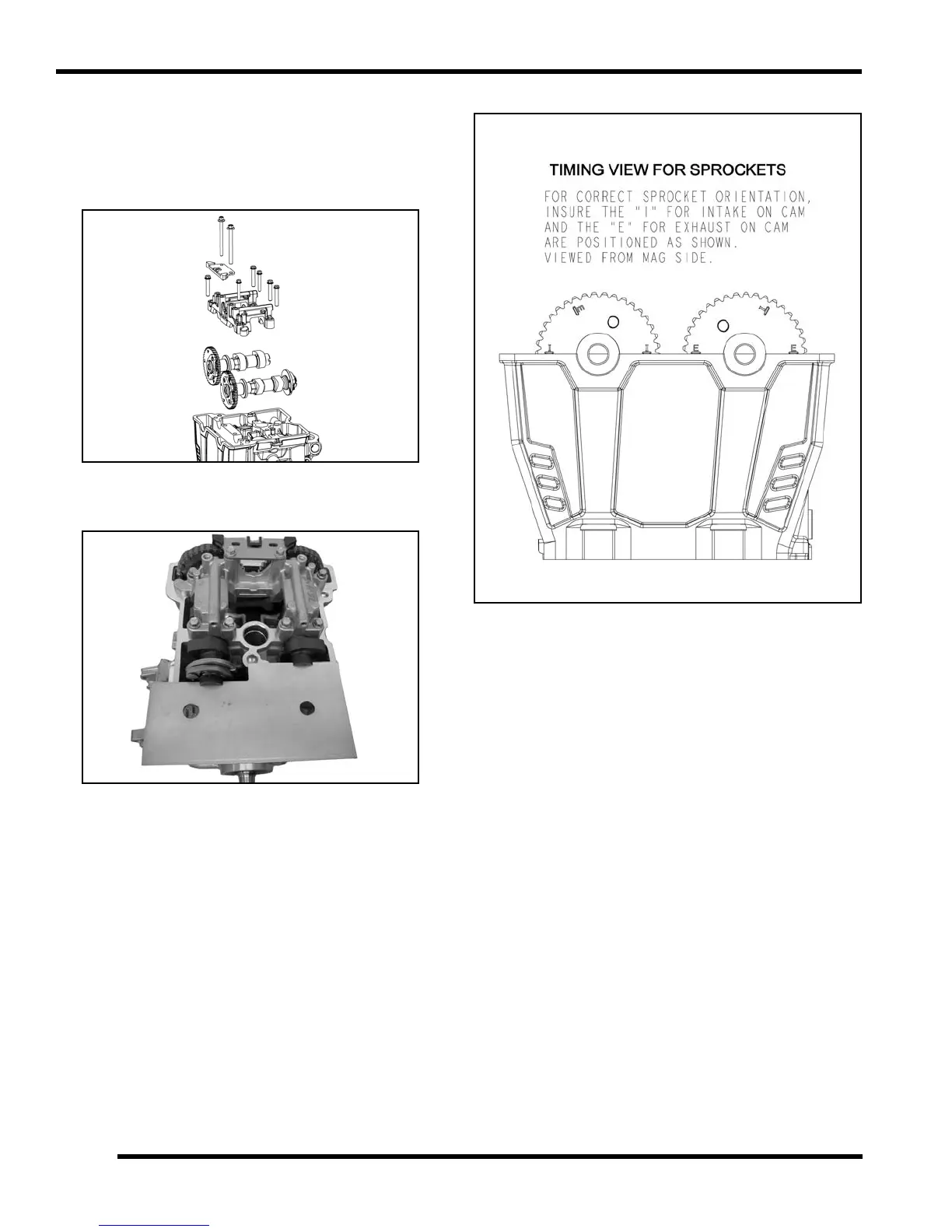

7. Carefully insta ll the camshaf t ca rrier onto the
camshafts.
8. Install the upper cam chain guide and the (8) bolts that
r
etain the camshaft carrier. Tighten the bolts evenly
until snug. Do not torque at this time.
9. Install th e Cylind er Holding an d Ca mshaft Timing
Plate
(PU-50563) into the end of camshafts as shown.
10. Verify cam timing is corre
ct and the piston is a TDC.
11. If timing marks are not aligned:
• Remove the Camshaft Timing Plate (PU-50563)
from the
end of the camshafts.
• Remove the cam carrier bolt and cam carrier.
• Correct the camshaft timing as needed.
• Reinstall the cam carrier.
• Re-check cam timing.
12. Remove the Cylin der Ho lding & Camsha ft Timin g
Pla
te (PU-50563) from the end of the camshafts.
13. If needed, install the camshaft carrier and bolts.
