ENGINE / COOLING SYSTEM
3
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

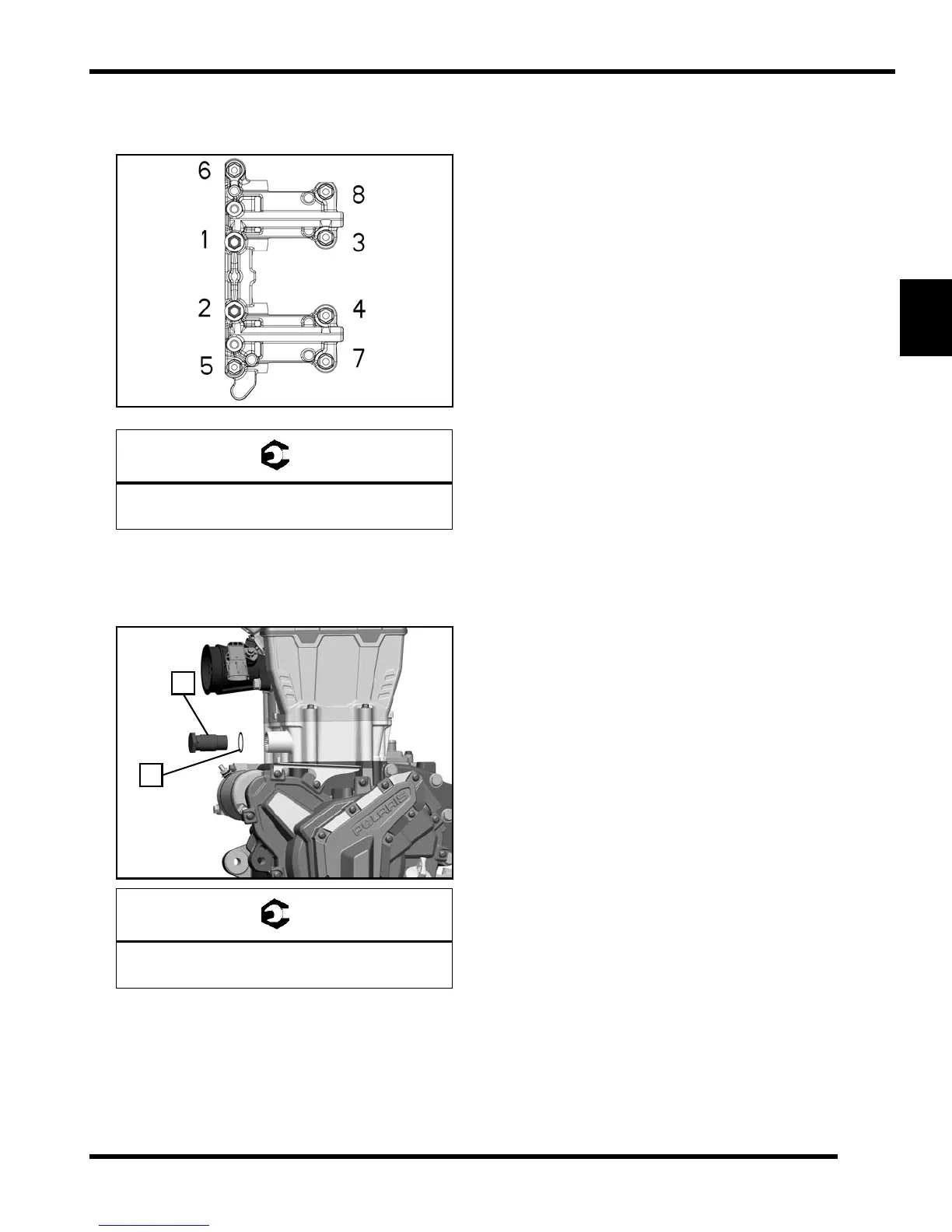

14. Torque the camshaft car rier bolts in seq uence to
specification.
15. Insure the new sealing washer (G
) is in place.
16. Install the hydraulic cam chain tensioner (H) into the
cylinde
r and torque to specification.
17. Rotate crankshaft through two r
evolutions and verify
camshaft timing is correct.
= T
Camshaft Carrier Bolts:
7.5 ft. lbs. (10 ± 1 Nm)
= T
Cam Chain Tensioner:
30 ft. lbs. (40 Nm)
