4.39
ELECTRONIC FUEL INJECTION
4
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

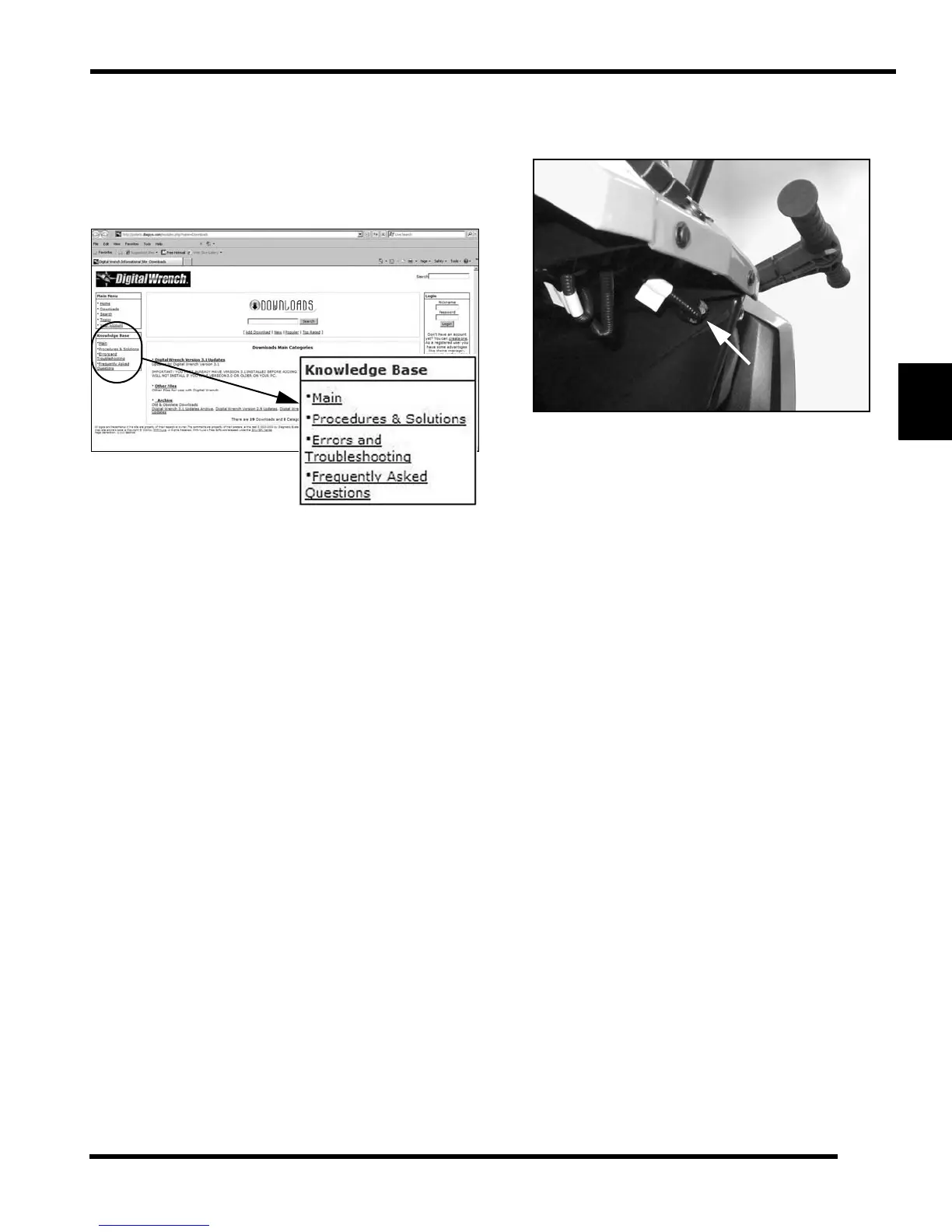

Digital Wrenchâ„¢ Communication Errors
If you experience problems connecting to a vehicle or any
Digital Wrenchâ„¢ related problem, vis it the Digit al
Wrenchâ„¢ Knowledge Base for the most current
troubleshooting in formation, F AQs, d ownloads a nd
software updates at: http://polaris.diagsys.com/.
Digital Wrenchâ„¢ - Diagnostic Connector
Located under the dash connected to a sealed plug.
Follow these steps to con nect the d iagnostic interface
ca
ble to the vehicle to allow Digital Wrenchâ„¢ use:
1. Assemble the SmartLink Module and attach the PC
In
terface Cable to your laptop (see page 4.3).
2. Remove the protective cap from the Digital Wrenchâ„¢
co
nnector.
3. Connect the Veh icle In terface Cab le to the Dig ital
Wr
enchâ„¢ diagnostic connector.
4. Turn the ignition key to the ‘
ON’ position, selec t the
appropriate vehicle and wait for the status to display
‘Connected’ in the lower left corner of the screen.
5. Once connected, pr oceed wit h us ing Digital
Wr
enchâ„¢.
