Polaris 2012 RANGER RZR 570 INTL User Manual

8.39
TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

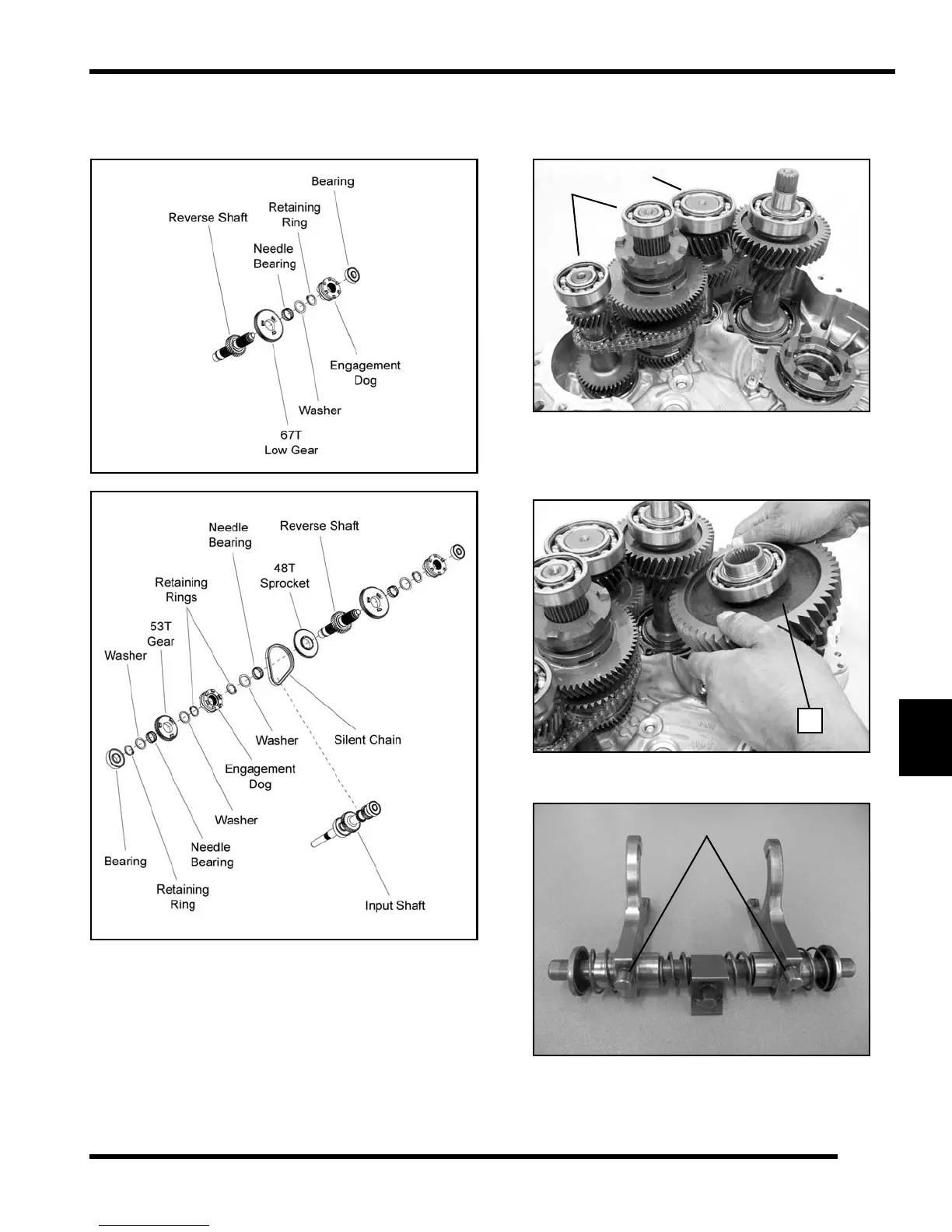

5. Assemble the reverse shaft assembly and input shaft
assembly if pr eviously disassembled (see
illustrations).
6. Install the idle r gear shaft assemb ly (A) an d gear
cluster assembly (B) into the transmission housing, all
at the same time.
7. Install th e rear o utput s haft as sembly (C). R otate
ou
tput shaft assembly to align slots with engagement
dog. Ensure bearing is fully seated upon assembly.
8. Assemble shift shaft rail if pr
eviously disassembled.
NOTE: Both s hift fo rks nee d t o be orien tated the
sa
me way, so that the shift fork pins are both offset
to the same side of the rail.
A
B
C
Pins should offset to the same side
