3.22
ENGINE / COOLING SYSTEM
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

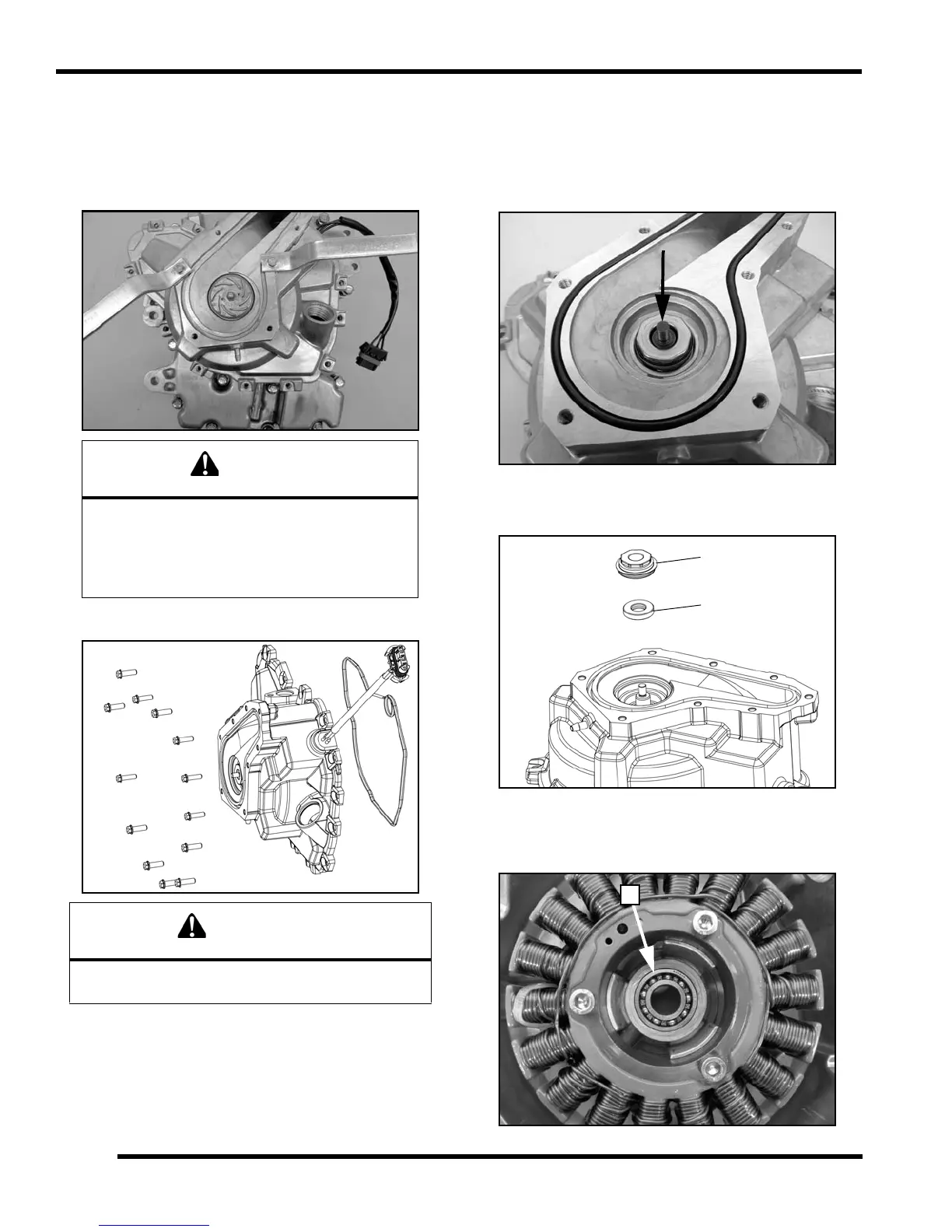

15. Remove the (13) bolts securing the stator cover to the
engine.
16. If needed, install the stator cover removal handle tool
(
PA-49317) to the water pump cover bolt holes to aid
in stator cover removal.
17. Remove and discard the stator cover gasket.
18. Bring the sta tor cover assemb ly to a clea n work
ben
ch.
19. Using a b rass dr ift, re move th e water pum p dr ive
sh
aft. Be sur e not to da mage the thr eads. Inspe ct
shaft for wear or damage, replace if necessary.
20. Extract the mechanical seal (E) and the oil seal (F)
fr
om the stator cover.
21. Press out the water pump drive shaft bearing (G) from
th
e sta tor cover. Disca rd bearing and replace with
new.
The flywheel contains powerful magnets. Use
caution when removing the stator cover.
DO NOT place fingers between cover and
crankcase at any time during the removal
process or injury could result.
Be sure engine coolant does not contaminate the
engine oil during stator cover service.
