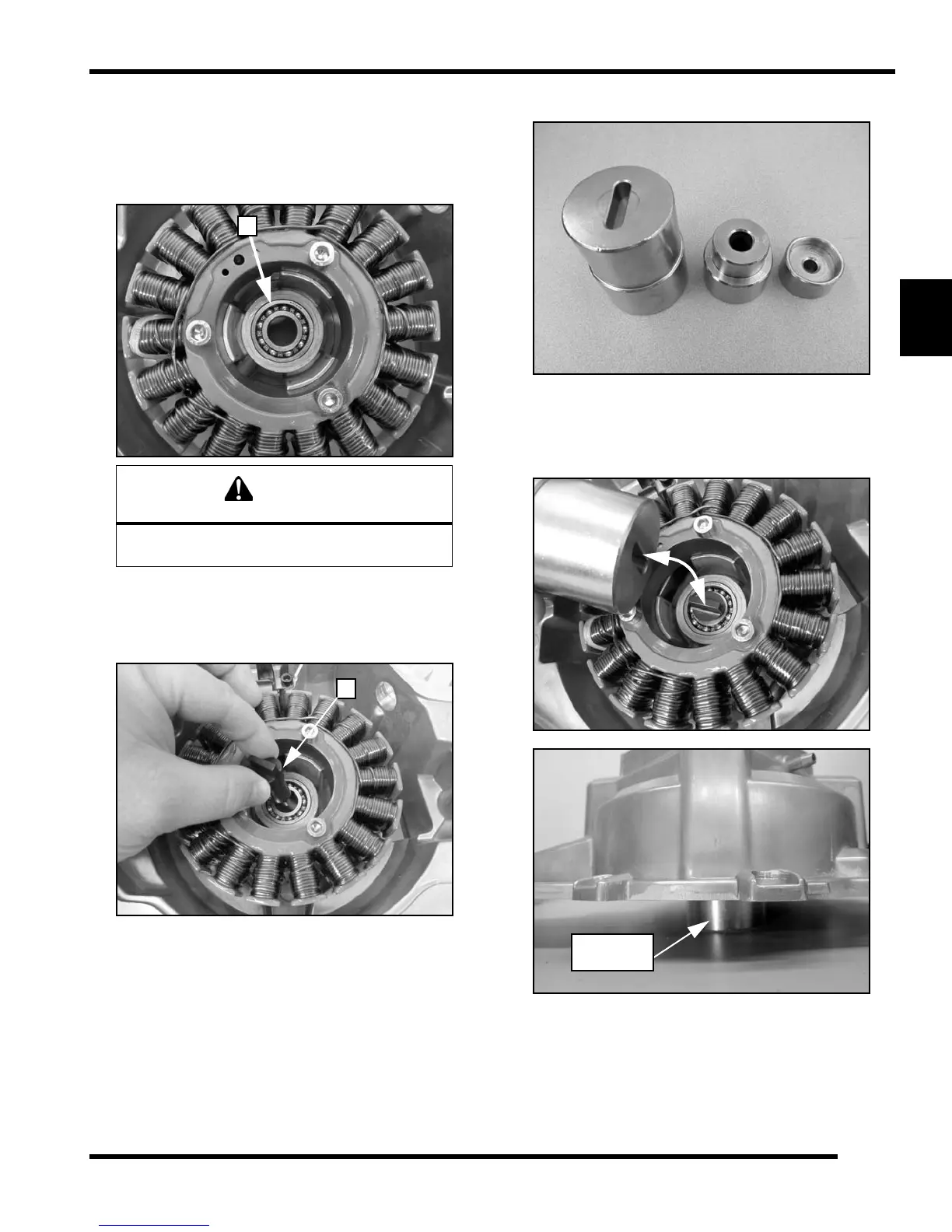

Water Pump Assembly
1. Thoroughly clean the stator cover.
2. Press in a ne
w water pump drive shaft bearing (G)
until it is fully seated in the cover.
3. Clean and de-grease the water pump drive shaft (H).
4. Press in th e wa ter pu mp dr ive shaft (H) into the
b
earing using PU-50869 Item #1.
5. Install the water pump drive shaft ho lding tool ( Item
#1) in kit PU-50869.
Hold the tool in position and flip
the assembly u p-side-down so the special tool PU-
50869 is supporting the assembly.
Be sure bearing is fully seated in cover or severe
engine damage may result.
PU-50869
Item #1 Item #2
Item #3
