Polaris 2012 RANGER RZR 570 INTL User Manual

3.24
ENGINE / COOLING SYSTEM
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

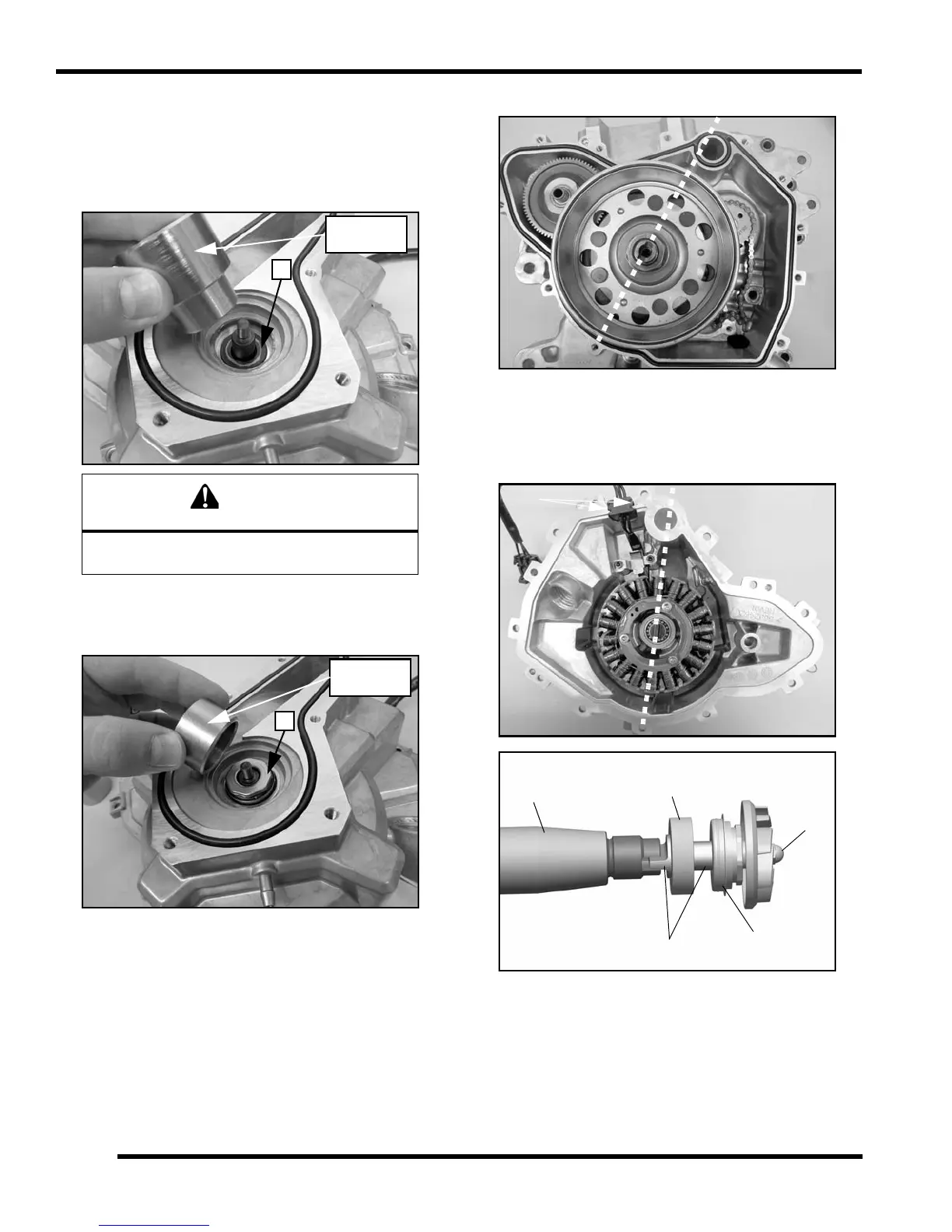

6. Lubricate the new wa ter p ump oil se al w ith c lean
engine oil.
7. Use the water pump oil seal installation
tool in kit
PU-50869 to fully install the new
water pump oil seal
(I).
8. Use the water pump mechanical seal installation tool
in kit PU-50869
to fully install the new water pump
mechanical seal (J) until it is fully seated in the cover.
9. Install a new stator
cover gasket onto the engine.
10. Align the water pump drive slot as shown below.
11. Align th e water p ump dr ive sh aft b lade as sh own
belo
w.
12. Apply a small amount of crankcase sealant to the area
indicate
d below (A).
13. If needed, install the stator cover removal handles tool
PA-
49317 to the water cover bolt holes to aid in stator
cover installation.
CAUTION
Be sure the oil seal is fully seated in cover or
severe engine damage may result
I
PU-50869
Item #2
J
PU-50869
Item #3
A
Water Pump Alignment Detail View
Crankshaft
Oil Seal
Mechanical
Impeller
Seal
Drive Shaft
