Mixer : Route Page
10 - 258

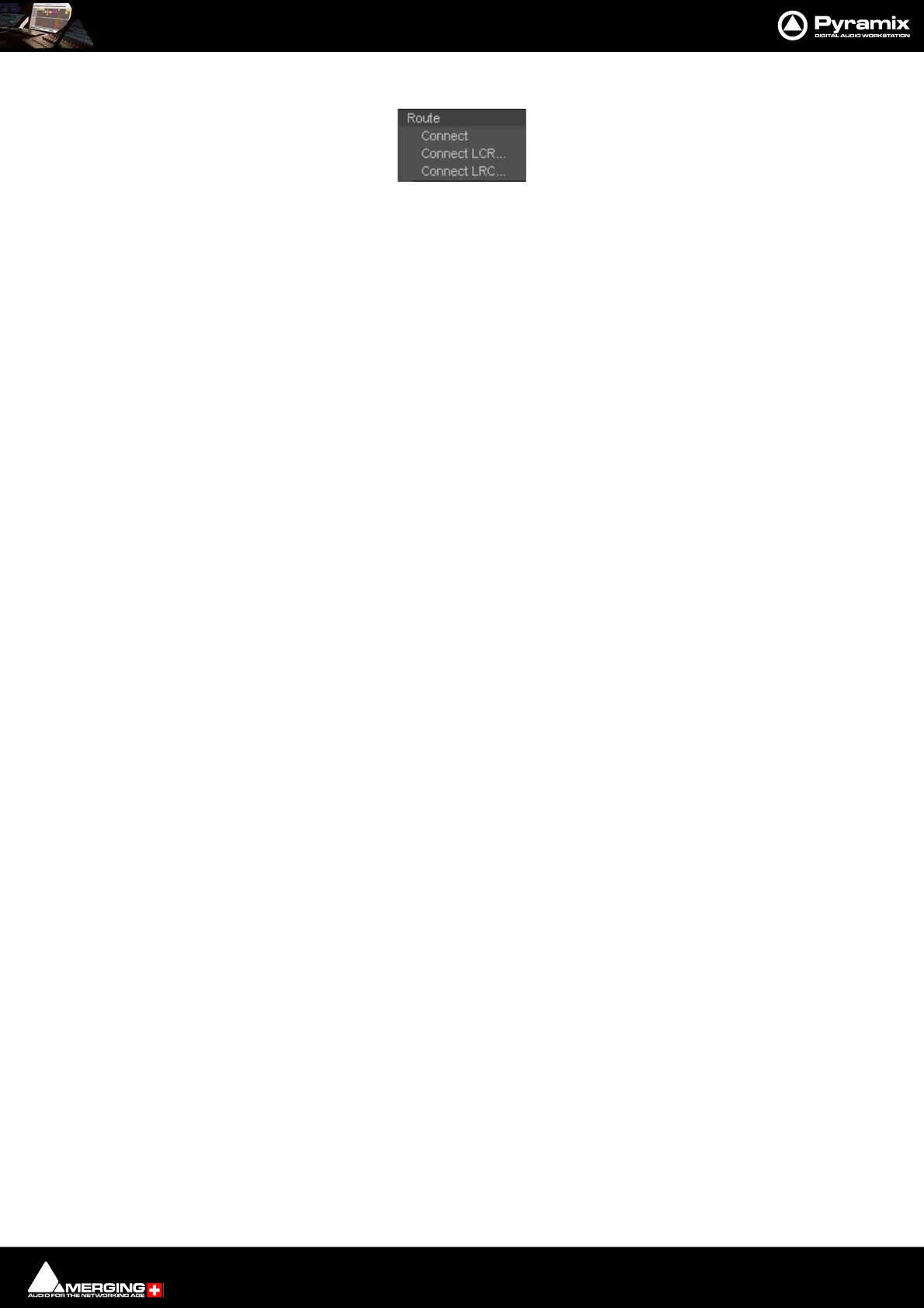

Right-clicking a crosspoint pops-up a context menu with options appropriate to the destination.:
Auto-Connect
Connects all the Strip Input Channels to physical inputs in ascending order.
Disconnect All
Removes all crosspoint assignments.
Info
The Info box shows detail about the currently highlighted crosspoint.
I/O Bus Capacity
In a MassCore system the only limitation on the number of I/O buses is the available power. For now the maximum
number of buses is artificially limited in code to 512 (at 1FS, 256@2FS, 128@4FS, 64@8FS).
Internal Return Buses
Some of the time slots within MassCore can be reserved to convey Aux Send or Master Output Buses back to
input strips. In effect, these are internal send/return paths. To change the number of available Internal Return
Buses, close all open Projects (if any) and go to:
Settings > All Settings > Mixer > Mixer Settings.
The number of Internal Return Buses can be set using the Internal Buses combo box. Click on the OK button to
memorize the setting and exit.
The number of Internal Return Buses you assign here will be available as possible channel strip sources in the
mixer.
Note: Please be aware that a Mix Group Bus or Aux Group Bus will auto-take Internal Bus connec-
tion resources, starting from the last one. E.g. IB384-IB385 for the first two SubGroup Channels
added to a Mixer. This means that you will no longer see IB384 and IB385 in the IB list.
