Speaker Sets

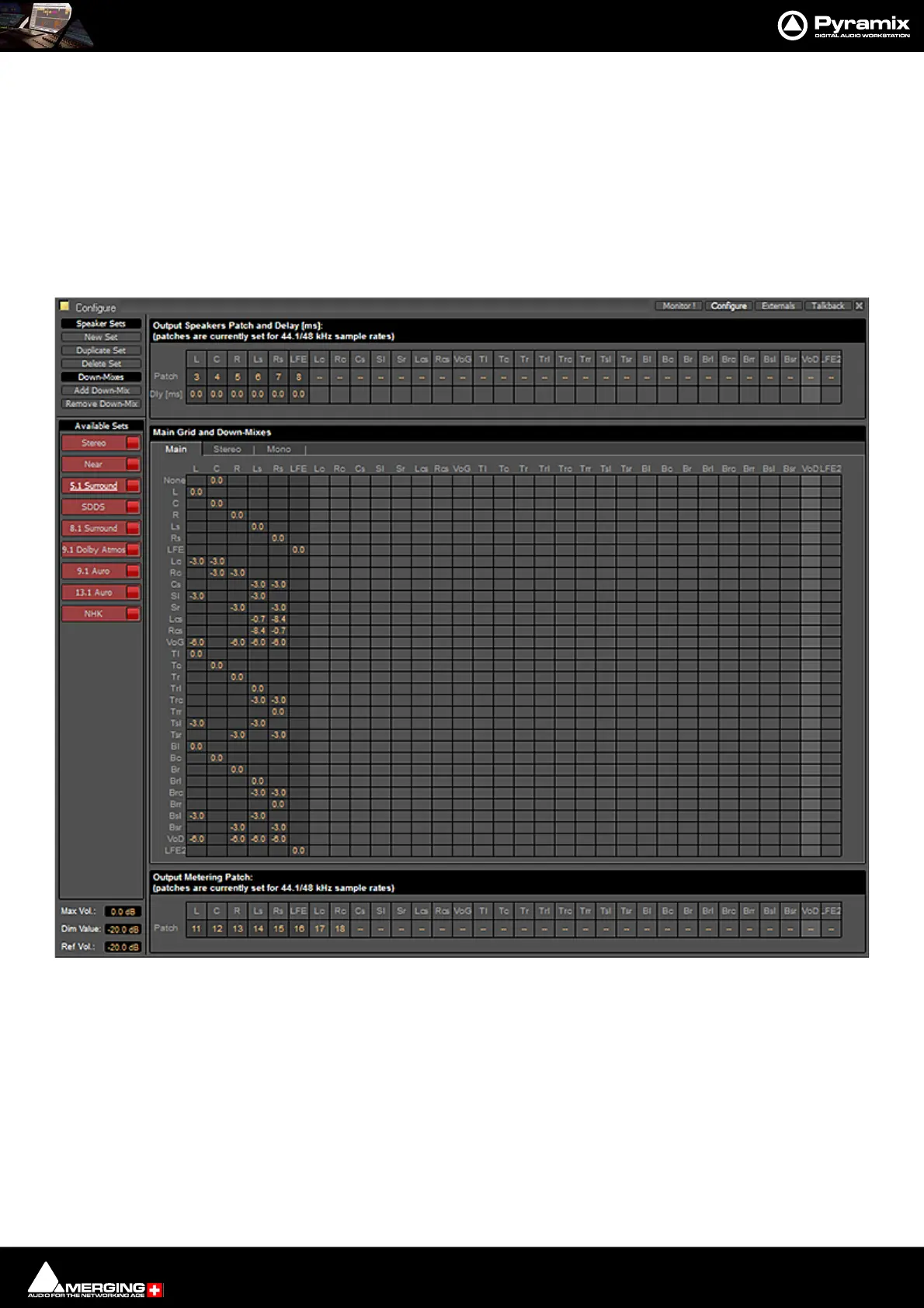

Speaker Sets are set-up in the Configure page.
A speaker set consists of:
A Patch: This connects signals to the physical outputs of the output device(s). The number of connection will
depend on the number of speakers you want to connect. Since the number of available live outputs depends on
the selected sampling rate, the patch will differ for 1Fs, 2 Fs, 4Fs and 8 Fs sampling rates.
A Main grid: this matrix defines the relation between the Mixer’s buses output channel types and the monitor’s
output channel types (thus the monitor’s physical outputs).
A set of Downmixes (max: 4) : A downmix is a an alternative grid which uses the same patch as the main grid. In
this page you can patch the outputs of you monitor, add/remove downmixes, and defines the corresponding grids
in dB (only the channel types which are patched).
